Figure 8417 · Clearance & Back Sonar

5 genuine catalog part numbers · Production from 2023-04

Open interactive figure

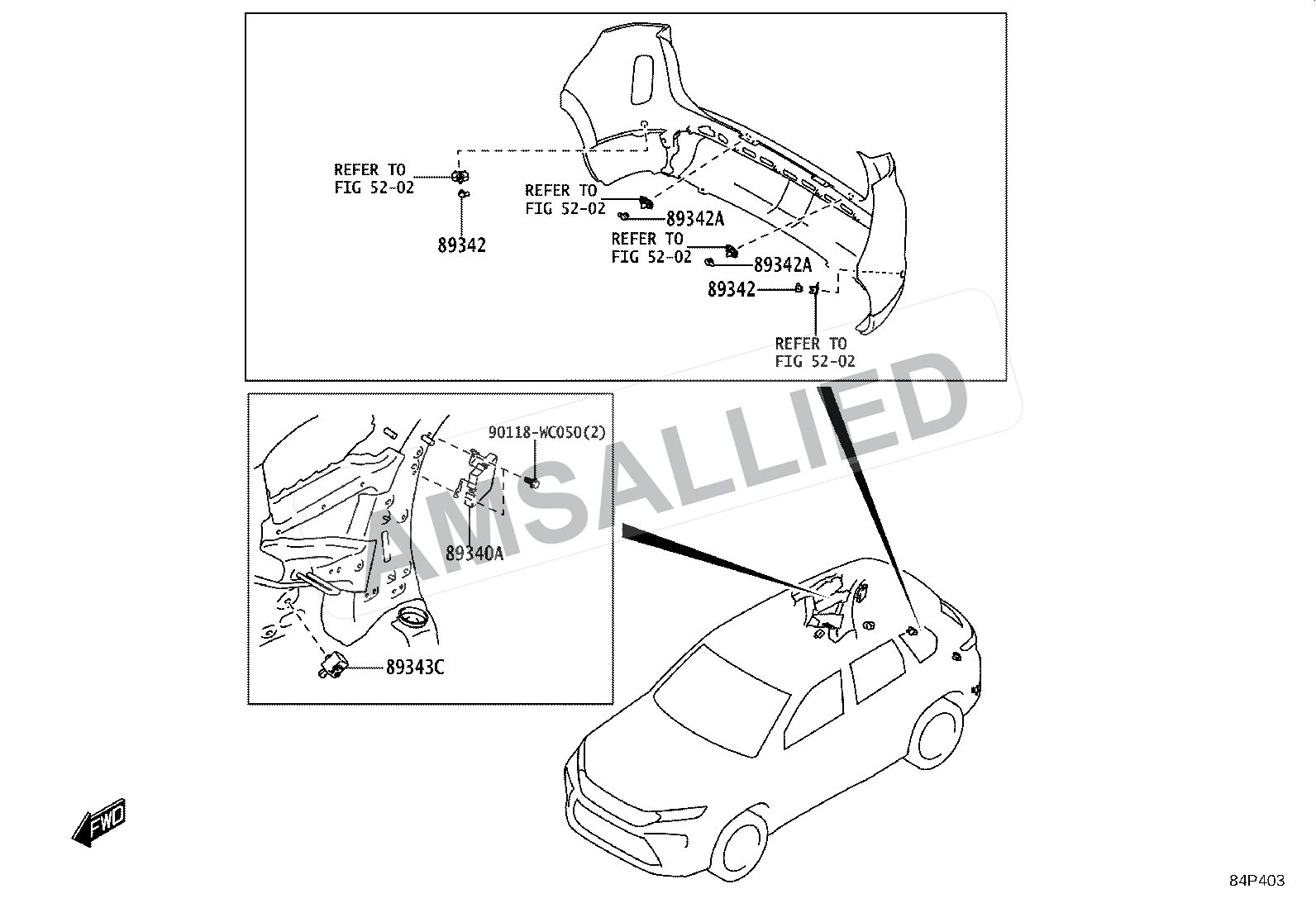

Toyota Hyryder Clearance & Back Sonar exploded parts diagram, figure 8417 — AMS Allied watermarked Toyota Hyryder reference diagram.

Part numbers in this diagram

5 parts

Computer Assy, Clearance Warning

PNC 89340A

Sensor, Ultrasonic, Rear Corner

PNC 89342

Sensor, Ultrasonic, Rear Center

PNC 89342A

Buzzer, Clearance Warning, No.1

PNC 89343C

Diagram Hardware / Fastener

PNC 90118WC050
