Electrical

Figure 8201 · Battery & Battery Cable

51 genuine catalog part numbers · Production from 2023-04

Open interactive figure

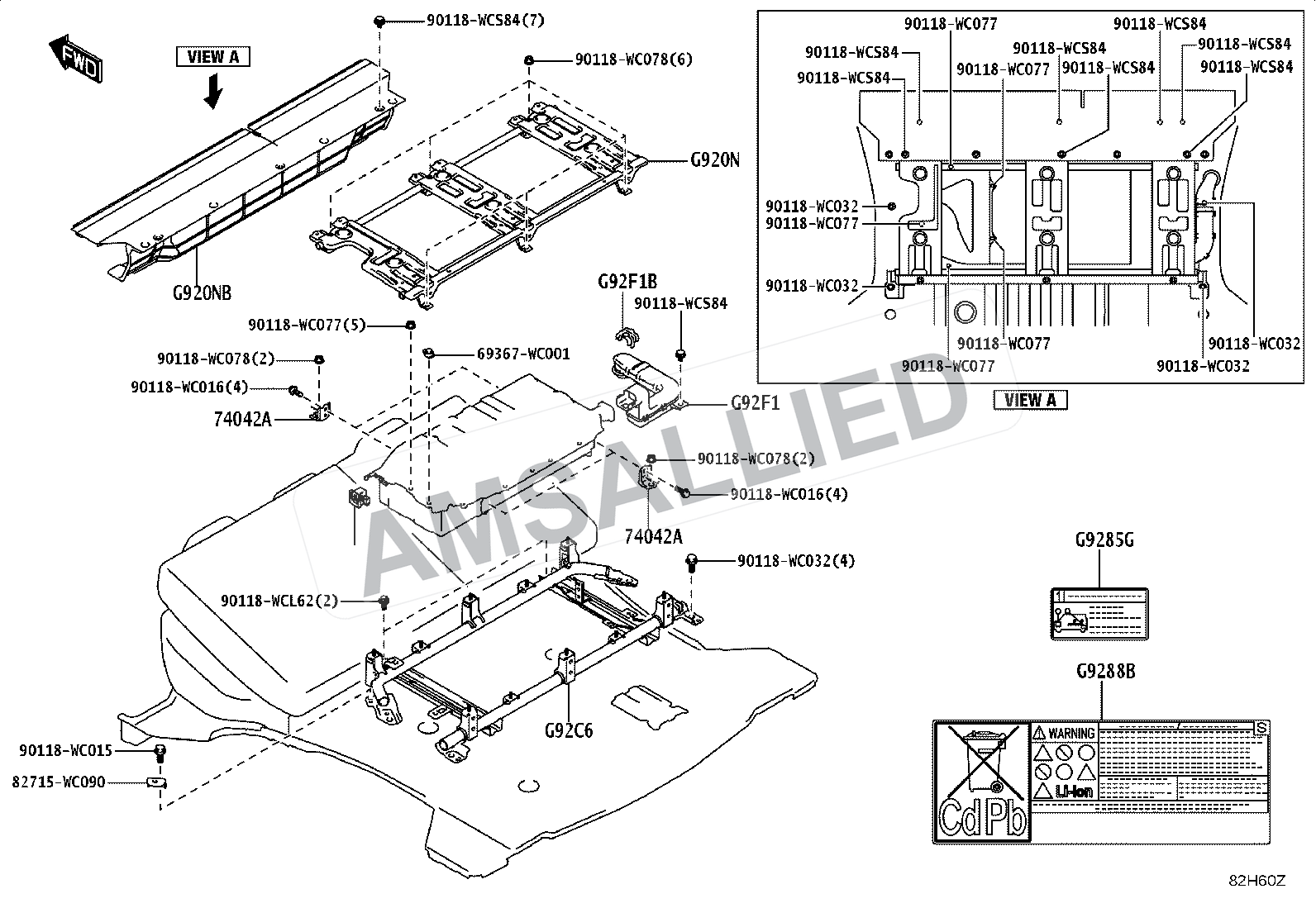

Toyota Hyryder Battery & Battery Cable exploded parts diagram, figure 8201
AMS Allied watermarked Toyota Hyryder reference diagram.

Part numbers in this diagram

51 parts
74461-WC001

Cover Sub-assy, Hv Battery, Upper No.2

PNC G920N

82685-WC001

Label, Hv Battery Information, No.1

PNC G9285G

90118-WCM78

Cover, Hybrid Battery Exhaust Duct, No.1

PNC G92F1B

G3850-52020

Box Assy, Traction Battery Device, No.1

PNC G3850

G920Q-66010

Shield Sub-assy, Hybrid Battery, No.1

PNC G920Q
