Regulator Assy, Fuel Pressure
PNC 23280J
Body

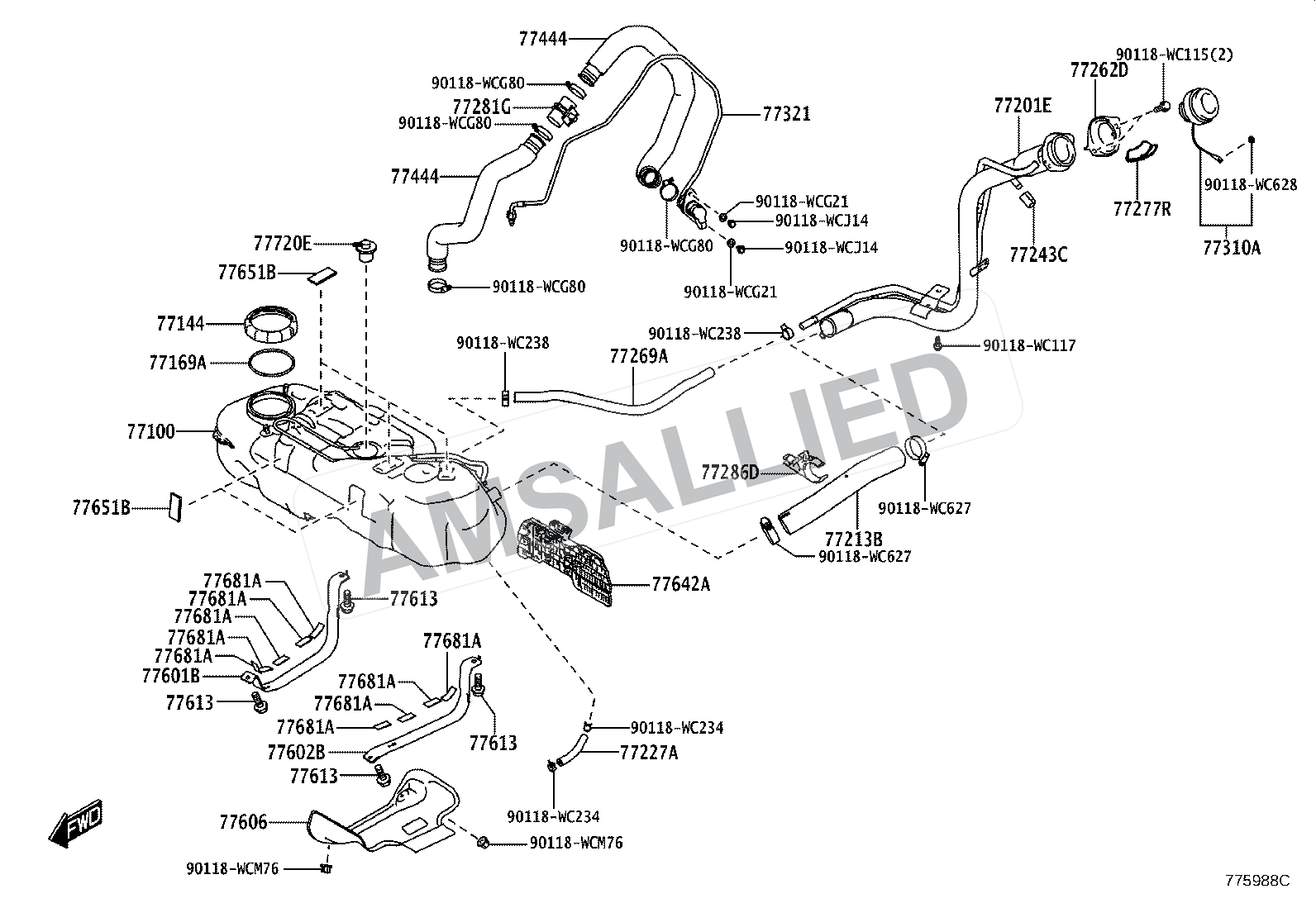

Figure 7701 · Fuel Tank & Tube
93 genuine catalog part numbers · Production from 2023-04
Part numbers in this diagram
93 partsJoint, Fuel Hose
PNC 77233
Hose, Fuel, No.1(for Charcoal Canister)
PNC 77740A
Hose, Fuel, No.2(for Charcoal Canister)
PNC 77740B
Hose, Fuel, No.1(for Charcoal Canister)
PNC 77740A
Hose, Fuel, No.2(for Charcoal Canister)
PNC 77740B
Hose, Fuel, No.2(for Charcoal Canister)
PNC 77740B
Clamp, Pipe
PNC 17578C
Holder, Fuel Pressure Regulator
PNC 23283B
Hose, Fuel
PNC 77249B
Valve Assy, Solenoid
PNC 23950A
Tank Assy, Fuel
PNC 77100
Tube Assy, Fuel Suction W/pump & Gage
PNC 77020A
Tube Assy, Fuel Suction W/pump & Gage
PNC 77020A
Filter Sub-assy, Fuel Suction Tube
PNC 77023
Tube Sub-assy, Fuel Tank Main
PNC 77209C
Tube, Fuel Main, No.3
PNC 77243
Cable Sub-assy, Fuel Lid Lock Control
PNC 77035
Tank Sub-assy, Fuel
PNC 77001A
Retainer, Fuel Pump Gauge
PNC 77144
Plate, Fuel Tank Protector
PNC 77161D
Gasket, Fuel Suction Tube Set
PNC 77169A
Pipe Sub-assy, Fuel Tank Filler
PNC 77201E
Tube Sub-assy, Fuel Tank Main
PNC 77209D
Tube Sub-assy, Fuel Tank Main
PNC 77209D
Tube, Fuel Main, No.1
PNC 77241
Tube, Fuel Main, No.4
PNC 77244
Hose, Fuel Tank To Filler Pipe
PNC 77213B
Tube, Fuel Tank Breather, No.6
PNC 77226A
Filter, Fuel Tank Breather
PNC 77243C
Tube Sub-assy, Fuel Tank Main
PNC 77209F
Tube Sub-assy, Fuel Tank Main
PNC 77209F
Tube, Fuel Main, No.2
PNC 77242
Tube Sub-assy, Fuel Emission
PNC 77261
Hose, Fuel, No.3(for Charcoal Canister)
PNC 77740C
Protector, Fuel Tube, No.1
PNC 77266A
Protector, Fuel Tube, No.1
PNC 77266A
Protector, Fuel Tank Filler Pipe
PNC 77277R
Clamp, Fuel Hose
PNC 77281M
Clamp, Fuel Hose
PNC 77281N
Clamp, Fuel Hose
PNC 77281N
Clamp, Fuel Tube, No.1
PNC 77285D
Clamp, Fuel Tube, No.2
PNC 77286F
Clamp, Fuel Hose
PNC 77281G
Clamp, Fuel Hose
PNC 77281G
Clamp, Fuel Tube
PNC 77284
Clamp, Fuel Tube, No.2
PNC 77286D
Box Assy, Fuel Tank Inlet
PNC 77021
Box Assy, Fuel Tank Inlet
PNC 77021
Cap Assy, Fuel Tank
PNC 77310A
Lever Sub-assy, Fuel Lid Lock Open
PNC 77306
Gasket, Fuel Filler Pipe
PNC 77262D
Coupler, Fuel Inlet
PNC 77321
Lid Assy, Fuel Filler Opening
PNC 77350
Control Opener Assy, Fuel Lid Lock
PNC 77050A
Bracket Sub-assy, Fuel Tank
PNC 77501T
Band Sub-assy, Fuel Tank, No.1 Rh
PNC 77601B
Band Sub-assy, Fuel Tank, No.1 Lh
PNC 77602B
Protector Sub-assy, Fuel Tank, No.1
PNC 77606
Protector, Fuel Tank, No.2
PNC 77642A
Cushion, Fuel Tank
PNC 77651B
Seat, Fuel Tank Band
PNC 77681A
Tube Assy, Fuel Tank Vent
PNC 77010, 77444
Valve Assy, Fuel Tank Solenoid Return
PNC 77720E
Canister Assy, Charcoal
PNC 77740
Filter Assy, Fuel
PNC 23300J
Bracket, Charcoal Canister Base
PNC 77751
Bracket, Charcoal Canister Base
PNC 77751
Hose, Fuel, No.3(for Charcoal Canister)
PNC 77740C
Hose, Charcoal Canister
PNC 77759
Hose, Charcoal Canister
PNC 77759A
Tube, Charcoal Canister Outlet
PNC 77779
Tube, Charcoal Canister Outlet
PNC 77779
Bolt, Fuel Tank Band Set
PNC 77613
Clamp, Fuel Hose
PNC 77281L
Duct Assy, Fuel Tank Valve Cover
PNC 77260A
Hose (for Fuel Tube Connector)
PNC 77209A
Tube, Fuel Tank Evaporation Vent
PNC 77227A
Hose
PNC 23239A, 77269A
Hose, Charcoal Canister
PNC 77759
Bolt, Fuel Tank
PNC 77644
Element Assy, Fuel Filter
PNC 23390A
Diagram Hardware / Fastener
PNC 90118WCG80
Diagram Hardware / Fastener
PNC 90118WCJ14
Diagram Hardware / Fastener
PNC 90118WCG21
Diagram Hardware / Fastener
PNC 90118WC234
Diagram Hardware / Fastener
PNC 90118WC627
Diagram Hardware / Fastener
PNC 90118WC238
Diagram Hardware / Fastener
PNC 90118WC117
Diagram Hardware / Fastener
PNC 90118WC628
Diagram Hardware / Fastener
PNC 90118WC115
Diagram Hardware / Fastener
PNC 90118WCM76
Diagram Hardware / Fastener
PNC 90118WC160
