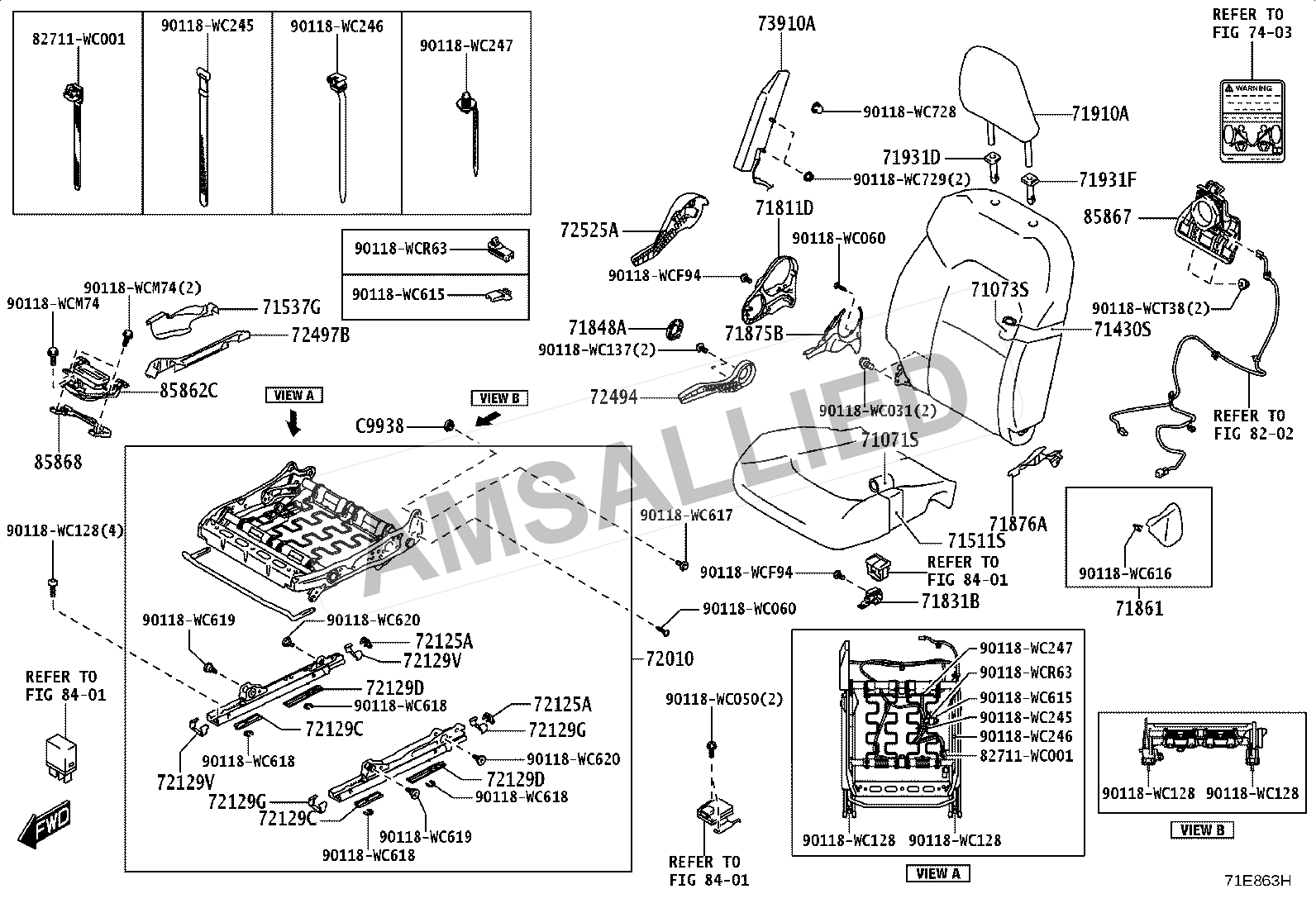

Figure 7101 · Front Seat & Seat Track

71071-WC020

Cover, Front Seat Cushion, Rh(for Separate Type)

PNC 71071S

71071-WC021

Cover, Front Seat Cushion, Rh(for Separate Type)

PNC 71071S

71071-WC026

Cover, Front Seat Cushion, Rh(for Separate Type)

PNC 71071S

71071-WC033

Cover, Front Seat Cushion, Rh(for Separate Type)

PNC 71071S

71072-WC012

Cover, Front Seat Cushion, Lh(for Separate Type)

PNC 71072S

71072-WC013

Cover, Front Seat Cushion, Lh(for Separate Type)

PNC 71072S

71072-WC014

Cover, Front Seat Cushion, Lh(for Separate Type)

PNC 71072S

71072-WC022

Cover, Front Seat Cushion, Lh(for Separate Type)

PNC 71072S

71073-WC021

Cover, Front Seatback, Rh(for Separate Type)

PNC 71073S

71073-WC022

Cover, Front Seatback, Rh(for Separate Type)

PNC 71073S

71073-WC023

Cover, Front Seatback, Rh(for Separate Type)

PNC 71073S

71073-WC024

Cover, Front Seatback, Rh(for Separate Type)

PNC 71073S

71073-WC025

Cover, Front Seatback, Rh(for Separate Type)

PNC 71073S

71073-WC026

Cover, Front Seatback, Rh(for Separate Type)

PNC 71073S

71074-WC020

Cover, Front Seatback, Lh(for Separate Type)

PNC 71074S

71074-WC022

Cover, Front Seatback, Lh(for Separate Type)

PNC 71074S

71074-WC023

Cover, Front Seatback, Lh(for Separate Type)

PNC 71074S

71074-WC024

Cover, Front Seatback, Lh(for Separate Type)

PNC 71074S

71074-WC027

Cover, Front Seatback, Lh(for Separate Type)

PNC 71074S

71074-WC028

Cover, Front Seatback, Lh(for Separate Type)

PNC 71074S

71512-WC006

Pad, Front Seat Cushion, Rh(for Separate Type)

PNC 71511S

71512-WC007

Pad, Front Seat Cushion, Rh(for Separate Type)

PNC 71511S

71512-WC008

Pad, Front Seat Cushion, Lh (for Separate Type)

PNC 71512S

71512-WC009

Pad, Front Seat Cushion, Lh (for Separate Type)

PNC 71512S

71537-WC002

Protector, Front Seat Cushion Edge, Rh(for Rh Seat)

PNC 71537G

71538-WC003

Protector, Front Seat Cushion Edge, Lh(for Lh Seat)

PNC 71538B

71630-WC009

Back Assy, Front Seat, Rh(for Separate Type)

PNC 71430S

71630-WC010

Back Assy, Front Seat, Rh(for Separate Type)

PNC 71430S

71630-WC011

Back Assy, Front Seat, Rh(for Separate Type)

PNC 71430S

71630-WC012

Back Assy, Front Seat, Rh(for Separate Type)

PNC 71430S

71640-WC010

Back Assy, Front Seat, Lh(for Separate Type)

PNC 71440S

71640-WC011

Back Assy, Front Seat, Lh(for Separate Type)

PNC 71440S

71640-WC012

Back Assy, Front Seat, Lh(for Separate Type)

PNC 71440S

71640-WC013

Back Assy, Front Seat, Lh(for Separate Type)

PNC 71440S

71811-WC001

Shield, Front Seat Cushion, Rh

PNC 71811D

71812-WC001

Shield, Front Seat Cushion, Lh

PNC 71812D

71831-WC001

Cover, Front Seat Hinge, Rh

PNC 71831B

71832-WC001

Cover, Front Seat Hinge, Lh

PNC 71832B

71848-WC001

Cap, Seat Adjuster Cover, Rh

PNC 71848A

71861-WC004

Shield, Front Seat Cushion, Inner Rh

PNC 71861

71862-WC004

Shield, Front Seat Cushion, Inner Lh

PNC 71862

71875-WC001

Cover, Reclining Adjuster Inside, Rh

PNC 71875B

71875-WC002

Cover, Reclining Adjuster Inside, Lh

PNC 71876A

71876-WC001

Cover, Reclining Adjuster Inside, Lh

PNC 71876

71876-WC002

Cover, Reclining Adjuster Inside, Rh

PNC 71875A

71910-WC023

Headrest Assy, Front Seat

PNC 71910A

71910-WC024

Headrest Assy, Front Seat

PNC 71910A

71910-WC030

Headrest Assy, Front Seat

PNC 71910A

71910-WC031

Headrest Assy, Front Seat

PNC 71910A

71930-WC005

Support, Front Seat Headrest, Lh

PNC 71931F

71931-WC005

Support, Front Seat Headrest, Rh

PNC 71931D

72010-WC011

Adjuster Assy, Front Seat, Rh

PNC 72010

72020-WC006

Adjuster Assy, Front Seat, Lh

PNC 72020

72125-WC001

Cover, Seat Track, Upper Rear

PNC 72125A

72125-WC002

Protector, Seat Track Lower Rail, No.2

PNC 72129A, 72129D

72129-WC002

Protector, Seat Track Lower Rail, No.1

PNC 72129, 72129C

72129-WC007

Protector, Seat Track Lower Rail, No.5

PNC 72129F, 72129G, 72129V, 72129W

72345-WC001

Cap

PNC 73949

72494-WC001

Handle, Vertical Adjusting, Rh

PNC 72494

72498-WC001

Cover, Vertical Adjuster Bracket, Rh

PNC 72497B

72525-WC004

Handle, Reclining Adjuster Release, Rh

PNC 72525A

72526-WC003

Handle, Reclining Adjuster Release, Lh

PNC 72526A

73910-WC004

Airbag Assy, Front Seat, Rh

PNC 73910A

73920-WC004

Airbag Assy, Front Seat, Lh

PNC 73920A

85862-WC002

Blower, Seat Cushion Climate Control, Rh

PNC 85862C, 85862D

85867-WC001

Blower, Seatback Climate Control, Rh

PNC 85867, 85867A

86868-WC001

Bracket, Seat Cushion Climate Control, Rh

PNC 85868, 85868A

90118-WC621

Bush

PNC C9938

90118-WCG75

Cover, Front Seat Hinge, Rh

PNC 71831B

90118-WC128

Diagram Hardware / Fastener

PNC 90118WC128

90118-WC618

Diagram Hardware / Fastener

PNC 90118WC618

90118-WC620

Diagram Hardware / Fastener

PNC 90118WC620

90118-WC619

Diagram Hardware / Fastener

PNC 90118WC619

90118-WCM74

Diagram Hardware / Fastener

PNC 90118WCM74

90118-WCF94

Diagram Hardware / Fastener

PNC 90118WCF94

90118-WC137

Diagram Hardware / Fastener

PNC 90118WC137

90118-WC615

Diagram Hardware / Fastener

PNC 90118WC615

90118-WC060

Diagram Hardware / Fastener

PNC 90118WC060

90118-WC031

Diagram Hardware / Fastener

PNC 90118WC031

82711-WC001

Diagram Hardware / Fastener

PNC 82711WC001

90118-WC245

Diagram Hardware / Fastener

PNC 90118WC245

90118-WC246

Diagram Hardware / Fastener

PNC 90118WC246

90118-WC247

Diagram Hardware / Fastener

PNC 90118WC247

90118-WCR63

Diagram Hardware / Fastener

PNC 90118WCR63

90118-WC050

Diagram Hardware / Fastener

PNC 90118WC050

90118-WCT38

Diagram Hardware / Fastener

PNC 90118WCT38

90118-WC729

Diagram Hardware / Fastener

PNC 90118WC729

90118-WC728

Diagram Hardware / Fastener

PNC 90118WC728

90118-WC616

Diagram Hardware / Fastener

PNC 90118WC616

90118-WC617

Diagram Hardware / Fastener

PNC 90118WC617

90118-WCG77

Diagram Hardware / Fastener

PNC 90118WCG77
