Figure 6707 · Rear Door Window Regulator & Hinge

10 genuine catalog part numbers · Production from 2023-04

Open interactive figure

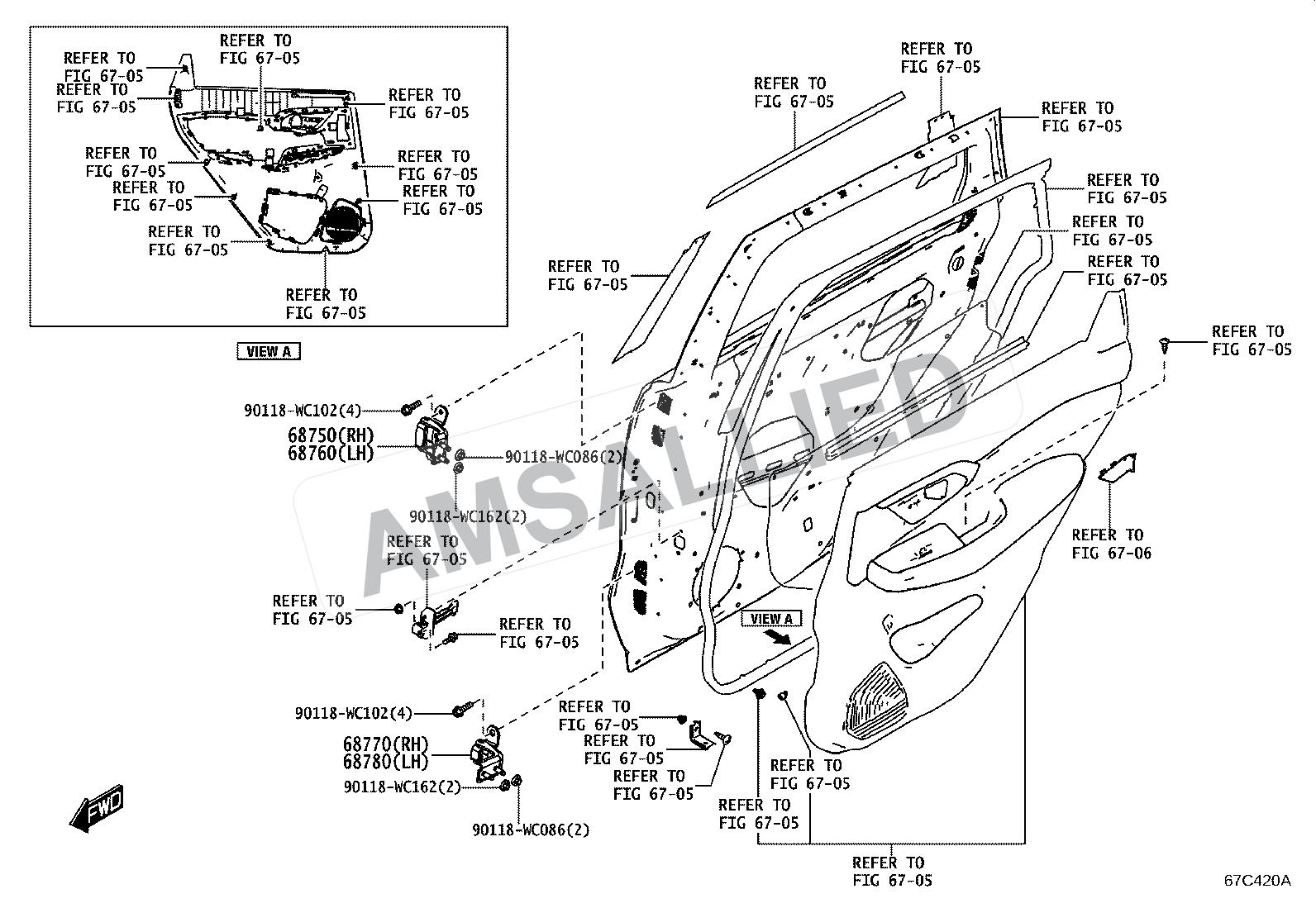

Toyota Hyryder Rear Door Window Regulator & Hinge exploded parts diagram, figure 6707 — AMS Allied watermarked Toyota Hyryder reference diagram.

Part numbers in this diagram

10 parts

Hinge Assy, Rear Door, Upper Rh

PNC 68750

Hinge Assy, Rear Door, Upper Lh

PNC 68760

Hinge Assy, Rear Door, Lower Rh

PNC 68770

Hinge Assy, Rear Door, Lower Lh

PNC 68780

Regulator Sub-assy, Rear Door Window, Rh

PNC 69803

Regulator Sub-assy, Rear Door Window, Lh

PNC 69804

Diagram Hardware / Fastener

PNC 90118WC102

Diagram Hardware / Fastener

PNC 90118WC086

Diagram Hardware / Fastener

PNC 90118WC162

Diagram Hardware / Fastener

PNC 90118WC050
