Panel Sub-assy, Rear Door, Rh
PNC 67003
Body

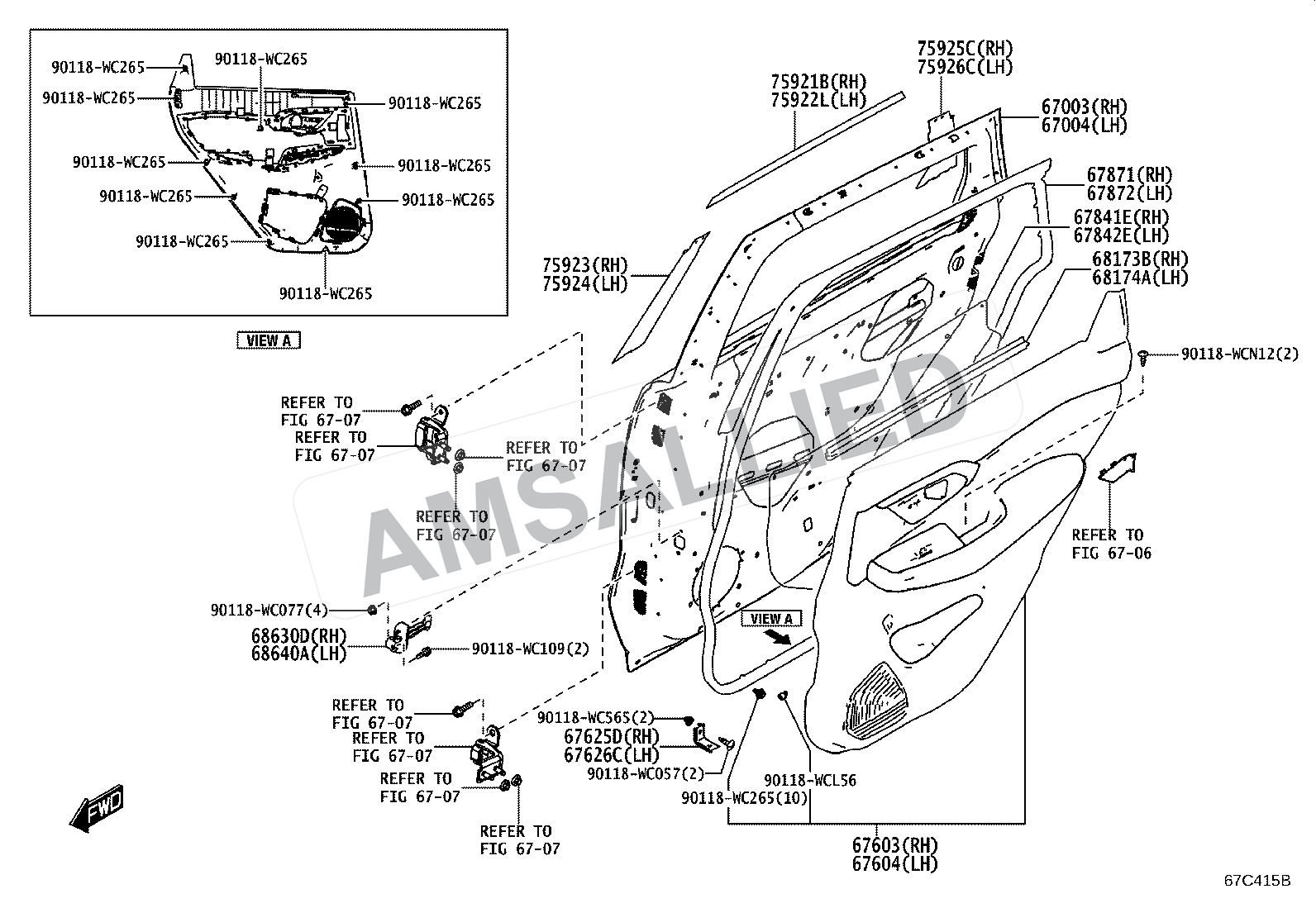

Figure 6705 · Rear Door Panel & Glass
49 genuine catalog part numbers · Production from 2023-04
Part numbers in this diagram
49 partsPanel Sub-assy, Rear Door, Lh
PNC 67004
Frame Sub-assy, Rear Door Window, Rear Lower Rh
PNC 67407F
Frame Sub-assy, Rear Door Window, Rear Lower Lh
PNC 67408F
Board Sub-assy, Rear Door Trim, Rh
PNC 67603
Board Sub-assy, Rear Door Trim, Rh
PNC 67603
Board Sub-assy, Rear Door Trim, Rh
PNC 67603
Board Sub-assy, Rear Door Trim, Rh
PNC 67603
Board Sub-assy, Rear Door Trim, Lh
PNC 67604
Board Sub-assy, Rear Door Trim, Lh
PNC 67604
Board Sub-assy, Rear Door Trim, Lh
PNC 67604
Board Sub-assy, Rear Door Trim, Lh
PNC 67604
Cover, Rear Door Service Hole, Rh
PNC 67841E, 67842E
Weatherstrip, Rear Door, Rh
PNC 67871
Weatherstrip, Rear Door, Lh
PNC 67872
Glass Sub-assy, Rear Door, Rh
PNC 68103
Glass Sub-assy, Rear Door, Rh
PNC 68103
Glass Sub-assy, Rear Door, Lh
PNC 68104
Glass Sub-assy, Rear Door, Lh
PNC 68104
Run, Rear Door Glass, Rh
PNC 68142C
Run, Rear Door Glass, Lh
PNC 68152C
Weatherstrip Assy, Rear Door Glass, Outer Rh
PNC 68180C
Weatherstrip Assy, Rear Door Glass, Outer Rh
PNC 68180C
Weatherstrip, Rear Door Glass, Inner Rh
PNC 68173B
Weatherstrip Assy, Rear Door Glass, Outer Lh
PNC 68230C
Weatherstrip Assy, Rear Door Glass, Outer Lh
PNC 68230C
Weatherstrip, Rear Door Glass, Inner Lh
PNC 68174A
Check Assy, Rear Door, Rh
PNC 68630D, 68640A
Tape, Black Out, No.3 Rh
PNC 75925C
Tape, Black Out, No.3 Lh
PNC 75926C
Tape, Black Out, No.2 Rh
PNC 75923
Tape, Black Out, No.2 Lh
PNC 75924
Tape, Black Out, No.1 Rh
PNC 75921B
Tape, Black Out, No.1 Lh
PNC 75922L
Cover, Rear Door Speaker
PNC 86262D
Cushion, Rear Door Panel
PNC 67003C
Bracket, Rear Door Trim
PNC 67625D, 67626C
Diagram Hardware / Fastener
PNC 90118WC265
Diagram Hardware / Fastener
PNC 90118WC077
Diagram Hardware / Fastener
PNC 90118WC565
Diagram Hardware / Fastener
PNC 90118WC057
Diagram Hardware / Fastener
PNC 90118WC109
Diagram Hardware / Fastener
PNC 90118WCN12
Diagram Hardware / Fastener
PNC 90118WCL56
Diagram Hardware / Fastener
PNC 9011906983
Diagram Hardware / Fastener
PNC 9095001A05
Diagram Hardware / Fastener
PNC 9017906274
Diagram Hardware / Fastener
PNC 9095001956
Diagram Hardware / Fastener
PNC 90118WC129
