Figure 6704 · Front Door Window Regulator & Hinge

10 genuine catalog part numbers · Production from 2023-04

Open interactive figure

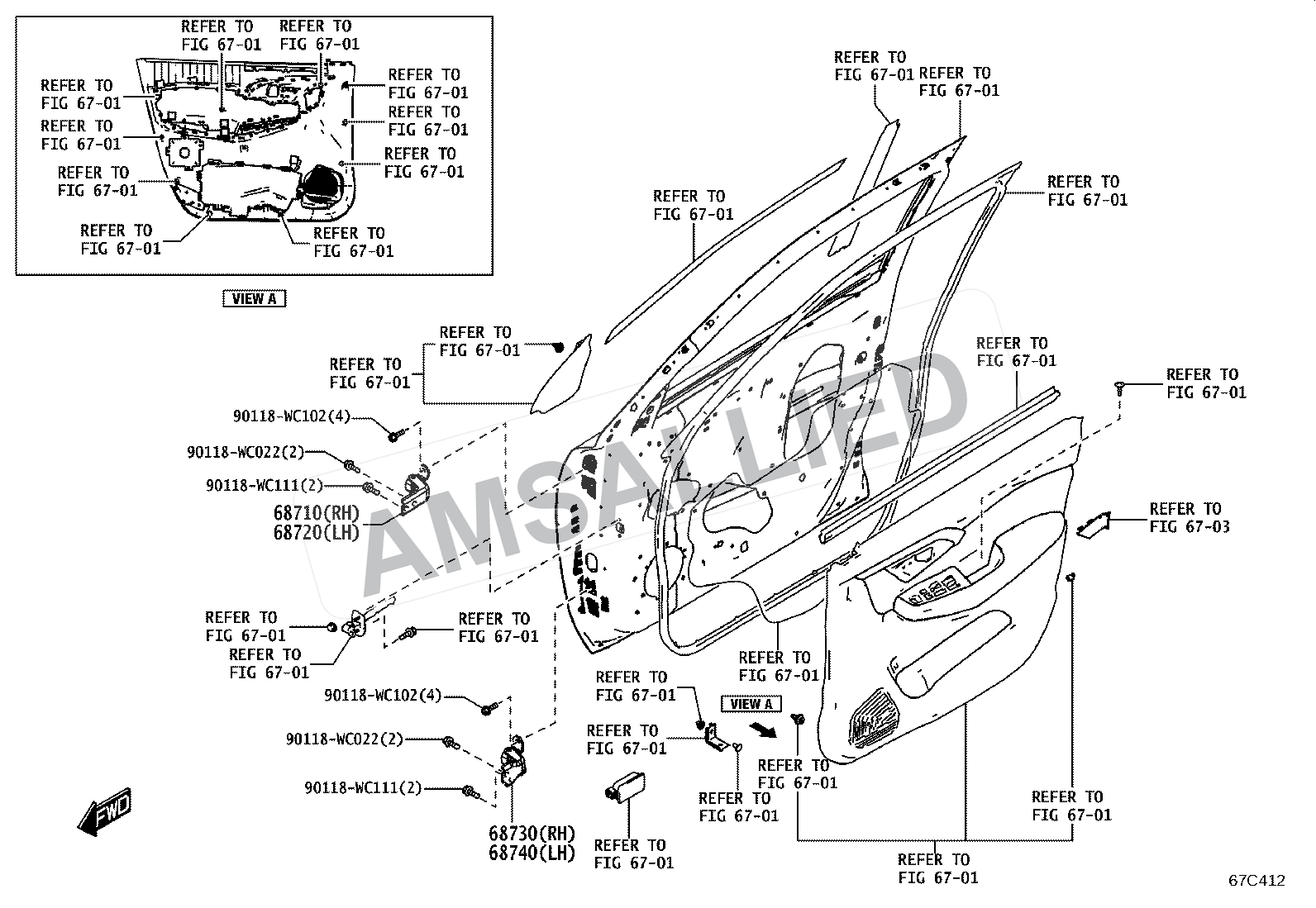

Toyota Hyryder Front Door Window Regulator & Hinge exploded parts diagram, figure 6704 — AMS Allied watermarked Toyota Hyryder reference diagram.

Part numbers in this diagram

10 parts

Hinge Assy, Front Door, Upper Rh

PNC 68710

Hinge Assy, Front Door, Upper Lh

PNC 68720

Hinge Assy, Front Door, Lower Rh

PNC 68730

Hinge Assy, Front Door, Lower Lh

PNC 68740

Regulator Sub-assy, Front Door Window, Rh

PNC 69801

Regulator Sub-assy, Front Door Window, Lh

PNC 69802

Diagram Hardware / Fastener

PNC 90118WC111

Diagram Hardware / Fastener

PNC 90118WC022

Diagram Hardware / Fastener

PNC 90118WC102

Diagram Hardware / Fastener

PNC 90118WC050
