Hook, Floor Carpet
PNC 58521K
Body

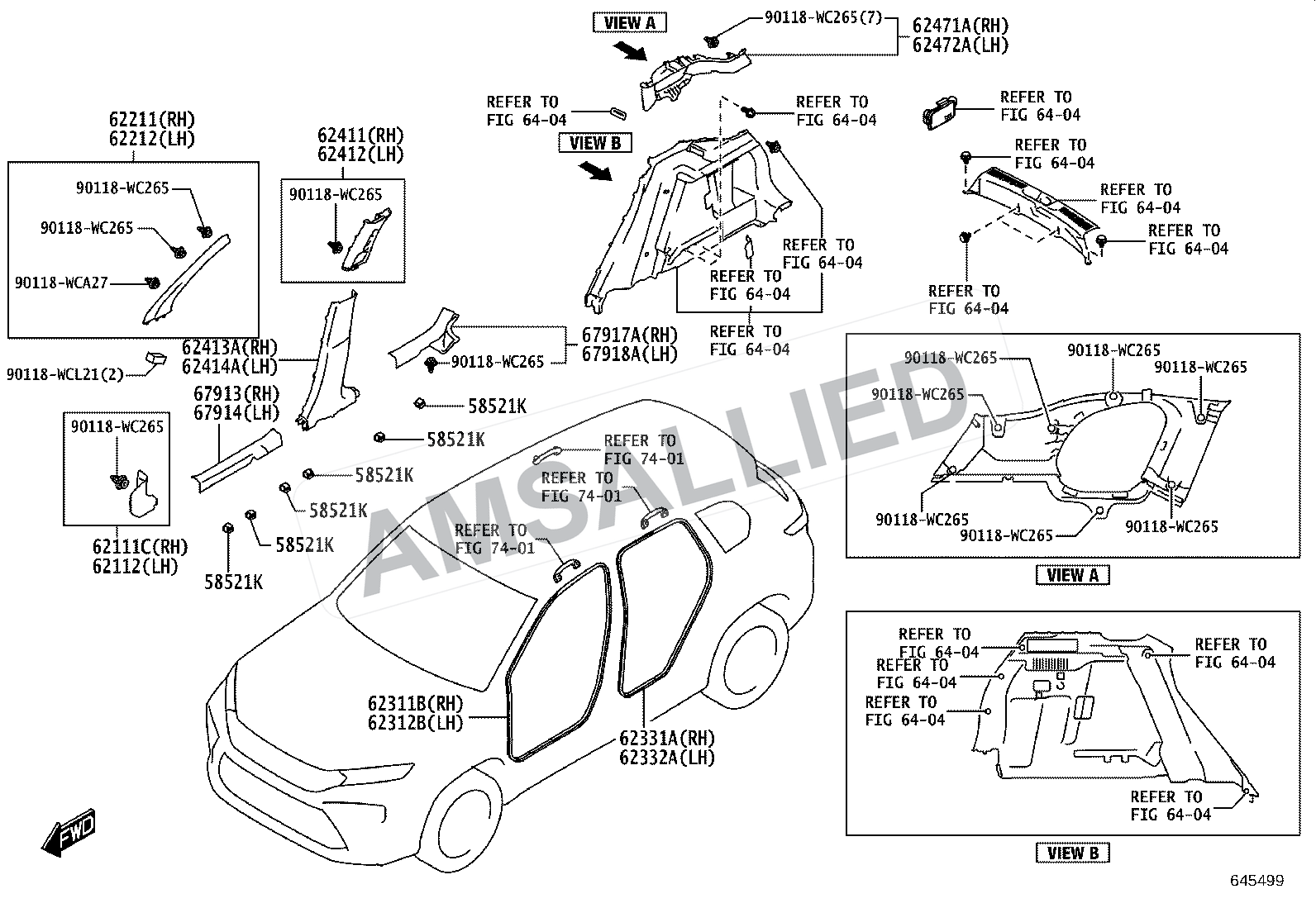

Figure 6401 · Inside Trim Board & Door Opening Trim Moulding
26 genuine catalog part numbers · Production from 2023-04
Part numbers in this diagram
26 partsBoard, Cowl Side Trim, Rh
PNC 62111C
Board, Cowl Side Trim, Lh
PNC 62112
Airbag Assy, Curtain Shield, Rh
PNC 62170A
Airbag Assy, Curtain Shield, Lh
PNC 62180A
Garnish, Front Pillar, Rh
PNC 62211
Garnish, Front Pillar, Lh
PNC 62212
Weatherstrip, Front Door Opening Trim, Rh
PNC 62311B, 62312B
Weatherstrip, Rear Door Opening Trim, Rh
PNC 62331A, 62332A
Garnish, Center Pillar, Rh
PNC 62411
Garnish, Center Pillar, Rh
PNC 62411
Garnish, Center Pillar, Lh
PNC 62412
Garnish, Center Pillar, Lh
PNC 62412
Garnish, Center Pillar, Lower Rh
PNC 62413A
Garnish, Center Pillar, Lower Lh
PNC 62414A
Garnish, Roof Side, Inner Rh
PNC 62471A
Garnish, Roof Side, Inner Lh
PNC 62472A
Grille Sub-assy, Room Ventilation, Lh
PNC 62804
Plate, Front Door Scuff, Rh
PNC 67913
Plate, Front Door Scuff, Lh
PNC 67914
Plate, Rear Door Scuff, Rh
PNC 67917A
Plate, Rear Door Scuff, Lh
PNC 67918A
Diagram Hardware / Fastener
PNC 90118WCA27
Diagram Hardware / Fastener
PNC 90118WC265
Diagram Hardware / Fastener
PNC 90118WCL21
Diagram Hardware / Fastener
PNC 9046710216
