Bracket, Front Fender, Rear Rh
PNC 53821B, 53822B
Body

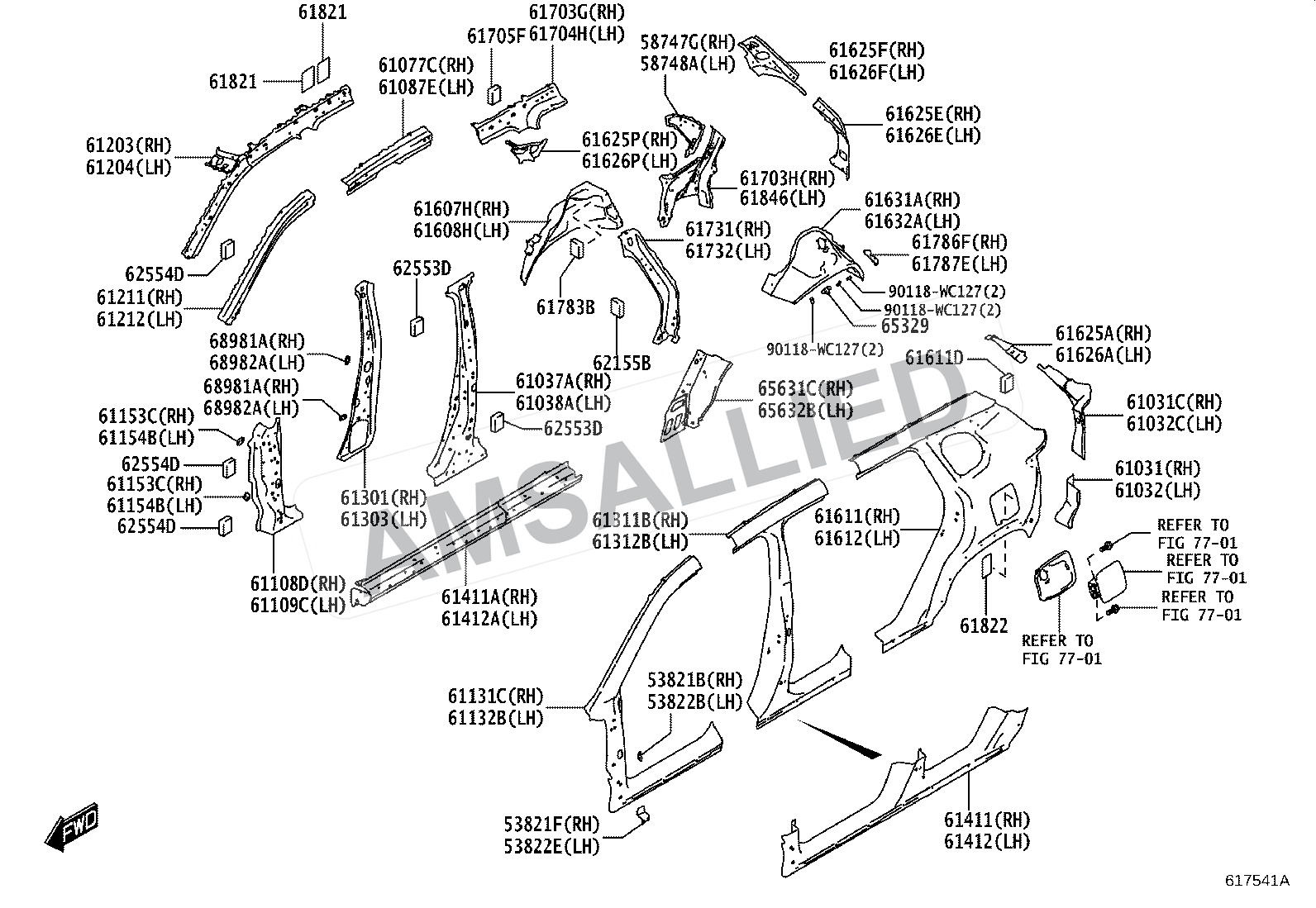

Figure 6101 · Side Member
73 genuine catalog part numbers · Production from 2023-04
Part numbers in this diagram
73 partsBracket, Front Fender, Rear No.2 Rh
PNC 53821F, 53822E
Sheet, Silencer, No.1
PNC 61821
Sheet, Silencer, No.2
PNC 61822
Reinforcement Sub-assy, Center Body Pillar, Rh
PNC 61037A
Reinforcement Sub-assy, Center Body Pillar, Lh
PNC 61038A
Panel, Quarter Inner, Lower Rear Lh
PNC 61846
Panel, Quarter Inner, Lower Rear Lh
PNC 61846
Panel, Quarter Inner, Lower Rear Lh
PNC 61846
Rail Sub-assy, No.1 Upper Outer, Rh
PNC 61077C
Rail Sub-assy, No.1 Upper Outer, Lh
PNC 61087E
Reinforcement Sub-assy, Front Pillar, Lower Rh
PNC 61108D
Reinforcement Sub-assy, Front Pillar, Lower Lh
PNC 61109C
Pillar, Front Body, Outer Rh
PNC 61131C
Pillar, Center Body, Outer Rh
PNC 61311B
Panel, Quarter, Rh
PNC 61611
Panel, Rocker, Outer Rh
PNC 61411
Pillar, Front Body, Outer Lh
PNC 61132B
Pillar, Center Body, Outer Lh
PNC 61312B
Panel, Quarter, Lh
PNC 61612
Panel, Rocker, Outer Lh
PNC 61412
Retainer, Front Body Pillar Lower Hinge, Rh
PNC 61153C, 61154B
Rail Sub-assy, Roof Side, Inner Rh
PNC 61203
Rail Sub-assy, Roof Side, Inner Lh
PNC 61204
Rail, Roof Side, Outer Rh
PNC 61211
Rail, Roof Side, Outer Lh
PNC 61212
Reinforcement, Rocker Panel, No.1 Rh
PNC 61411A
Reinforcement, Rocker Panel, No.1 Rh
PNC 61411A
Pillar Sub-assy, Center Body, Rh
PNC 61301
Reinforcement, Rocker Panel, No.1 Lh
PNC 61412A
Reinforce Sub-assy, Center Body Pillar, Upper Rh
PNC 61303
Retainer, Back Door Stay, Rh
PNC 68981A, 68982A
Panel Sub-assy, Quarter Wheel House, Inner Rh
PNC 61607H
Panel Sub-assy, Quarter Wheel House, Inner Rh
PNC 61607H
Panel Sub-assy, Quarter Wheel House, Inner Lh
PNC 61608H
Panel Sub-assy, Quarter Wheel House, Inner Lh
PNC 61608H
Panel Sub-assy, Quarter Wheel House, Inner Lh
PNC 61608H
Reinforcement Sub-assy, Roof Side, Inner Rh
PNC 61703H
Reinforcement Sub-assy, Roof Side, Inner Rh
PNC 61703H
Extension Sub-assy, Quarter Panel, Rear Lower Rh
PNC 61031
Extension Sub-assy, Quarter Panel, Rear Lower Lh
PNC 61032
Extension Sub-assy, Quarter Panel, Rear Rh
PNC 61031C
Extension, Quarter Panel, Upper Rh
PNC 61625F
Panel, Rear Body Rear Side Corner, Rh
PNC 61625P
Extension Sub-assy, Quarter Panel, Rh
PNC 61625A
Extension, Quarter Panel, Upper Lh
PNC 61626F
Panel, Rear Body Rear Side Corner, Lh
PNC 61626P
Extension Sub-assy, Quarter Panel, Lh
PNC 61626A
Panel, Quarter Wheel House, Outer Rh
PNC 61631A
Panel, Quarter Wheel House, Outer Lh
PNC 61632A
Panel Sub-assy, Quarter, Inner Rh
PNC 61703G
Panel Sub-assy, Quarter, Inner Lh
PNC 61704H
Panel, Roof Side, Inner Upper Rh
PNC 61731
Panel, Roof Side, Inner Upper Lh
PNC 61732
Extension, Quarter Panel, Inner Rear Rh
PNC 61625E
Extension, Quarter Panel, Inner Rear Lh
PNC 61626E
Bracket, Rear Bumper Side, Rh
PNC 61786F
Bracket, Rear Bumper Side, Lh
PNC 61787E
Extension Sub-assy, Quarter Panel, Rear Lh
PNC 61032C
Bracket, Rear Fender
PNC 65329
Plate, Rear Wheel House, Front Rh
PNC 65631C
Plate, Rear Whell House, Front Lh
PNC 65632B
Liner, Rear Wheel House, Rh
PNC 65637
Liner, Rear Wheel House, Lh
PNC 65638
Protector, Quarter Panel, Rear Lh
PNC 58748A
Protector, Quarter Panel, Rear Rh
PNC 58747G
Clip, Rear Wheel House Liner
PNC 65637C
Pad, Quarter Panel Silencer
PNC 61611D, 61705F, 61783B, 62155B, 62553D, 62554D
Clip, Rear Wheel House Liner
PNC 65638C
Diagram Hardware / Fastener
PNC 90118WC127
Diagram Hardware / Fastener
PNC 90119C0075
Diagram Hardware / Fastener
PNC 90119C0245
Diagram Hardware / Fastener
PNC 90178C0011
