Figure 5804 · Mat & Carpet

8 genuine catalog part numbers · Production from 2023-04

Open interactive figure

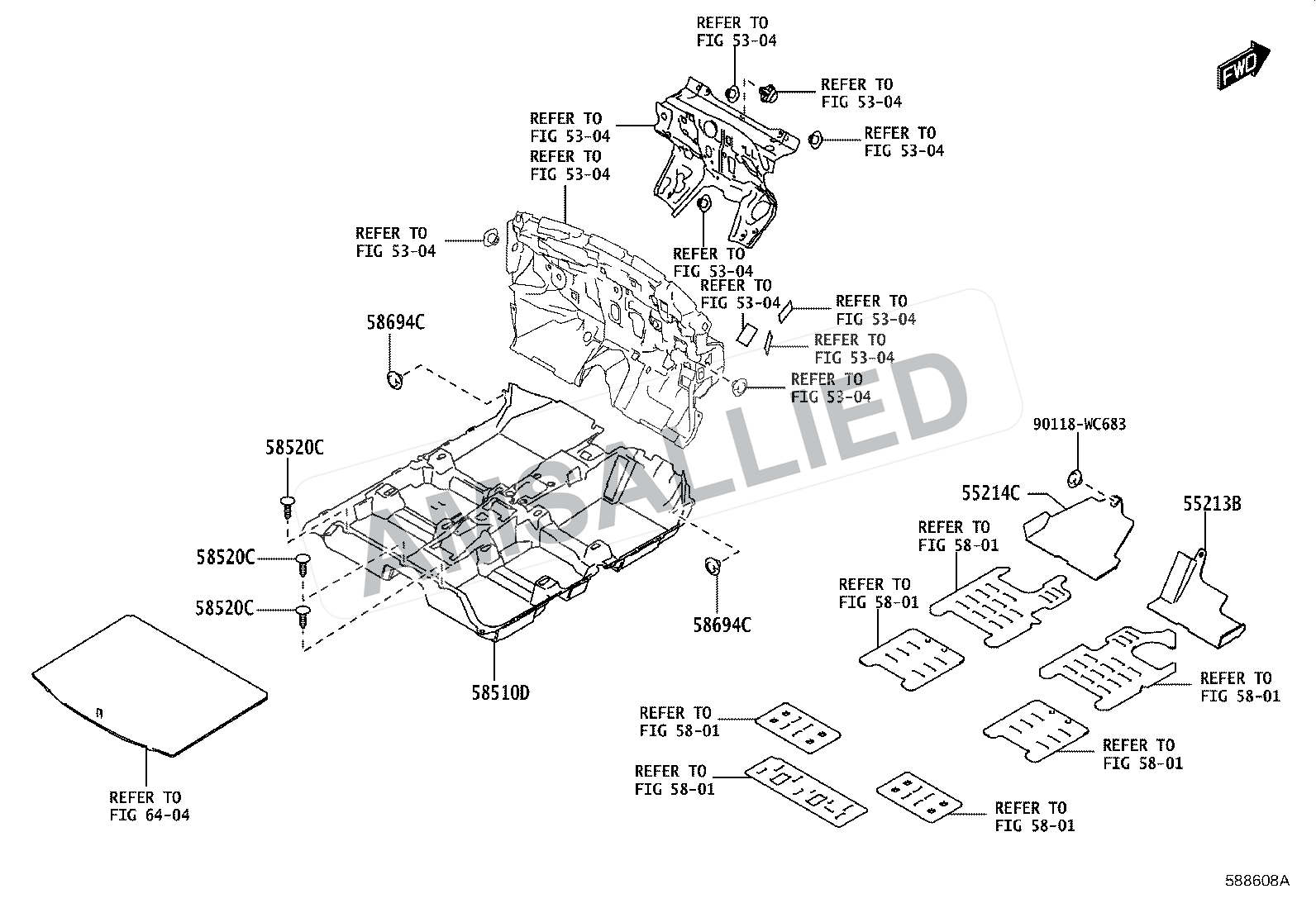

Toyota Hyryder Mat & Carpet exploded parts diagram, figure 5804 — AMS Allied watermarked Toyota Hyryder reference diagram.

Part numbers in this diagram

8 parts

Pad, Dash Panel Insulator, No.2

PNC 55214C

Carpet Assy, Floor, Front

PNC 58510D

Carpet Assy, Floor, Front

PNC 58510D

Carpet Assy, Floor, Front

PNC 58510D

Grommet(for Mat Set Plate)

PNC 58694C

Clip(for Front Floor Carpet)

PNC 58520C

Pad, Dash Panel Insulator, No.1

PNC 55213B

Diagram Hardware / Fastener

PNC 90118WC683
