Powertrain / Chassis

Figure 4802 · Front Axle Arm & Steering Knuckle

10 genuine catalog part numbers · Production from 2023-04

Open interactive figure

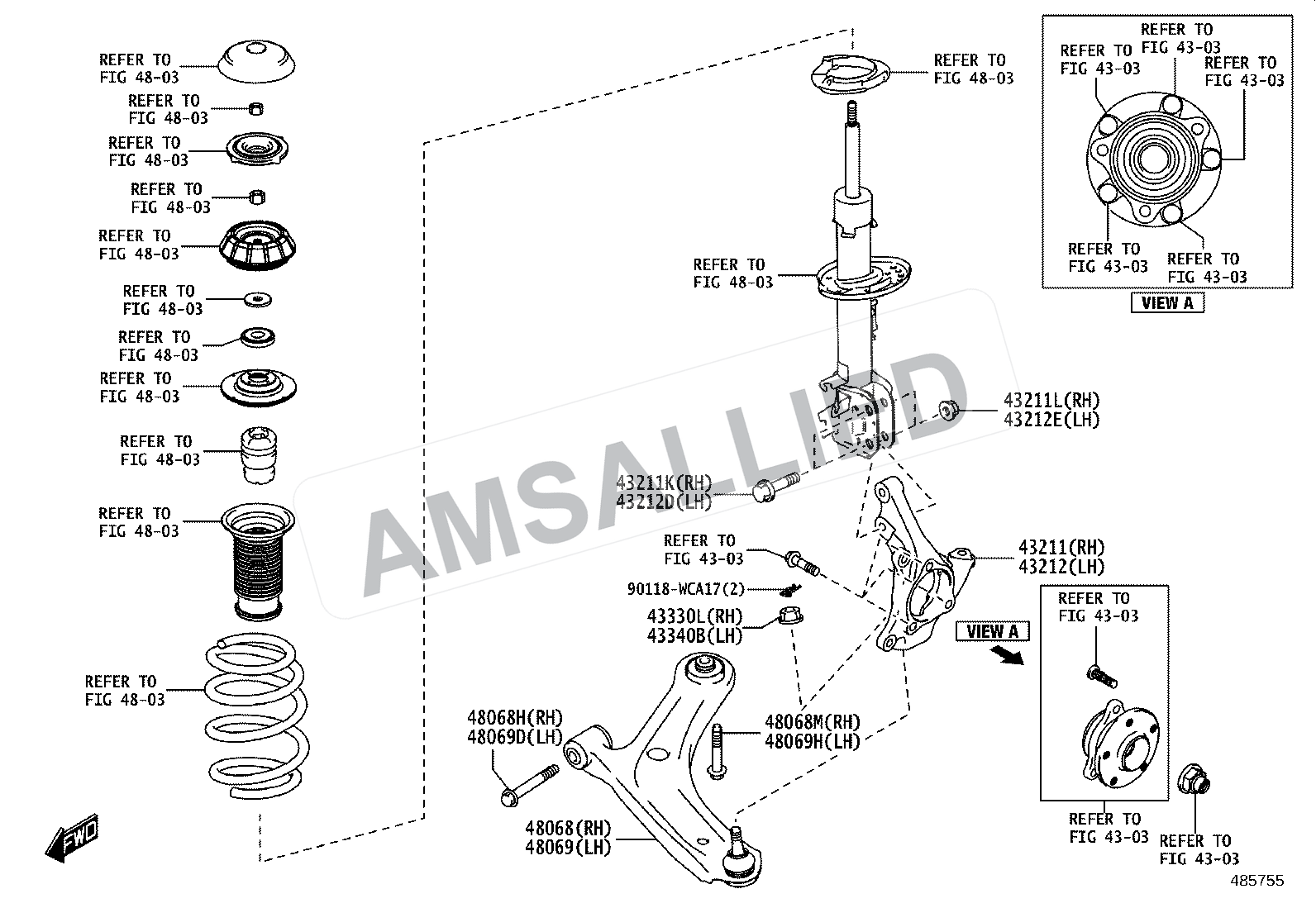

Toyota Hyryder Front Axle Arm & Steering Knuckle exploded parts diagram, figure 4802
AMS Allied watermarked Toyota Hyryder reference diagram.

Part numbers in this diagram

10 parts
48068-WC012

Arm Sub-assy, Front Suspension, Lower No.1 Rh

PNC 48068

48069-WC012

Arm Sub-assy, Front Suspension, Lower No.1 Lh

PNC 48069

90118-WC845

Bolt (for Steering Knuckle Rh)

PNC 43211K, 43212D

90118-WC871

Bolt(for Front Suspension Lower Arm No.2 Rh)

PNC 48068M, 48069H

90118-WC879

Nut (for Steering Knuckle Rh)

PNC 43211L, 43212E

90118-WC880

Nut, Castle (for Front Lower Ball Joint Rh)

PNC 43330L, 43340B

90118-WCT59

Bolt(for Front Suspension Lower Arm No.1 Rh)

PNC 48068H, 48069D
