Figure 4601 · Parking Brake & Cable

8 genuine catalog part numbers · Production from 2023-04

Open interactive figure

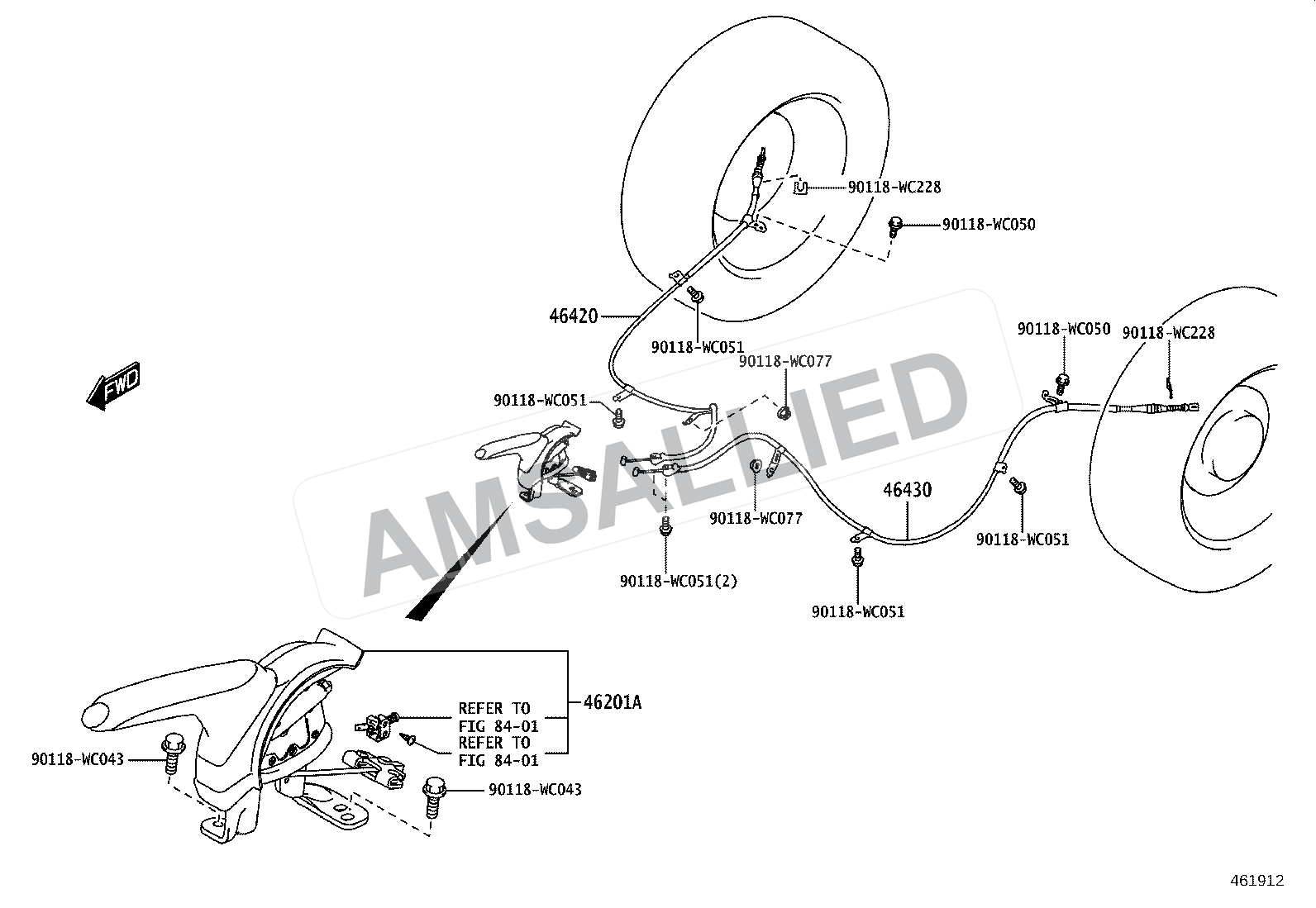

Toyota Hyryder Parking Brake & Cable exploded parts diagram, figure 4601 — AMS Allied watermarked Toyota Hyryder reference diagram.

Part numbers in this diagram

8 parts

Cushion(for Parking Brake Pedal)

PNC 46201A

Cable Assy, Parking Brake, No.2

PNC 46420

Cable Assy, Parking Brake, No.3

PNC 46430

Diagram Hardware / Fastener

PNC 90118WC051

Diagram Hardware / Fastener

PNC 90118WC050

Diagram Hardware / Fastener

PNC 90118WC077

Diagram Hardware / Fastener

PNC 90118WC043

Diagram Hardware / Fastener

PNC 90118WC228
