Figure 4505 · Front Steering Gear & Link

11 genuine catalog part numbers · Production from 2023-04

Open interactive figure

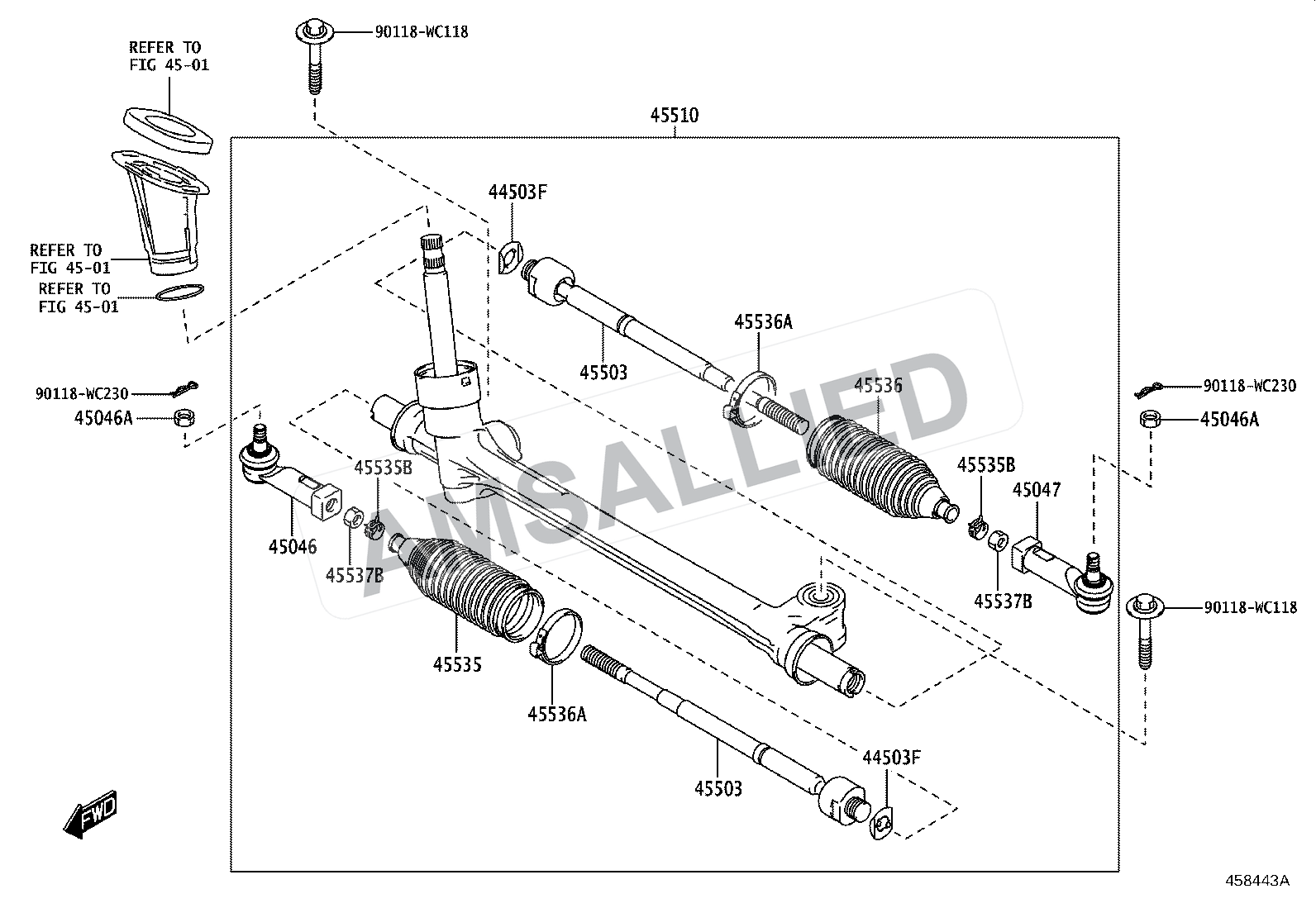

Toyota Hyryder Front Steering Gear & Link exploded parts diagram, figure 4505 — AMS Allied watermarked Toyota Hyryder reference diagram.

Part numbers in this diagram

11 parts

End Sub-assy, Tie Rod, Rh

PNC 45046, 45047

End Sub-assy, Steering Rack

PNC 45503

Gear Assy, Steering

PNC 45510

Boot, Steering Rack, No.1

PNC 45535, 45536

Nut, Castle(for Tie Rod End)

PNC 45046A

Nut, Rack End Lock

PNC 45537B

Washer, Claw(for Power Steering Rack End)

PNC 44503F

Clip(for Steering Rack Boot)

PNC 45535B

Clamp(for Steering Rack Boot No.2)

PNC 45536A

Diagram Hardware / Fastener

PNC 90118WC230

Diagram Hardware / Fastener

PNC 90118WC118
