Powertrain / Chassis

Figure 3914 · Oil Cooler & Tube (hev Or Bev Or Fcev)

12 genuine catalog part numbers · Production from 2023-04

Open interactive figure

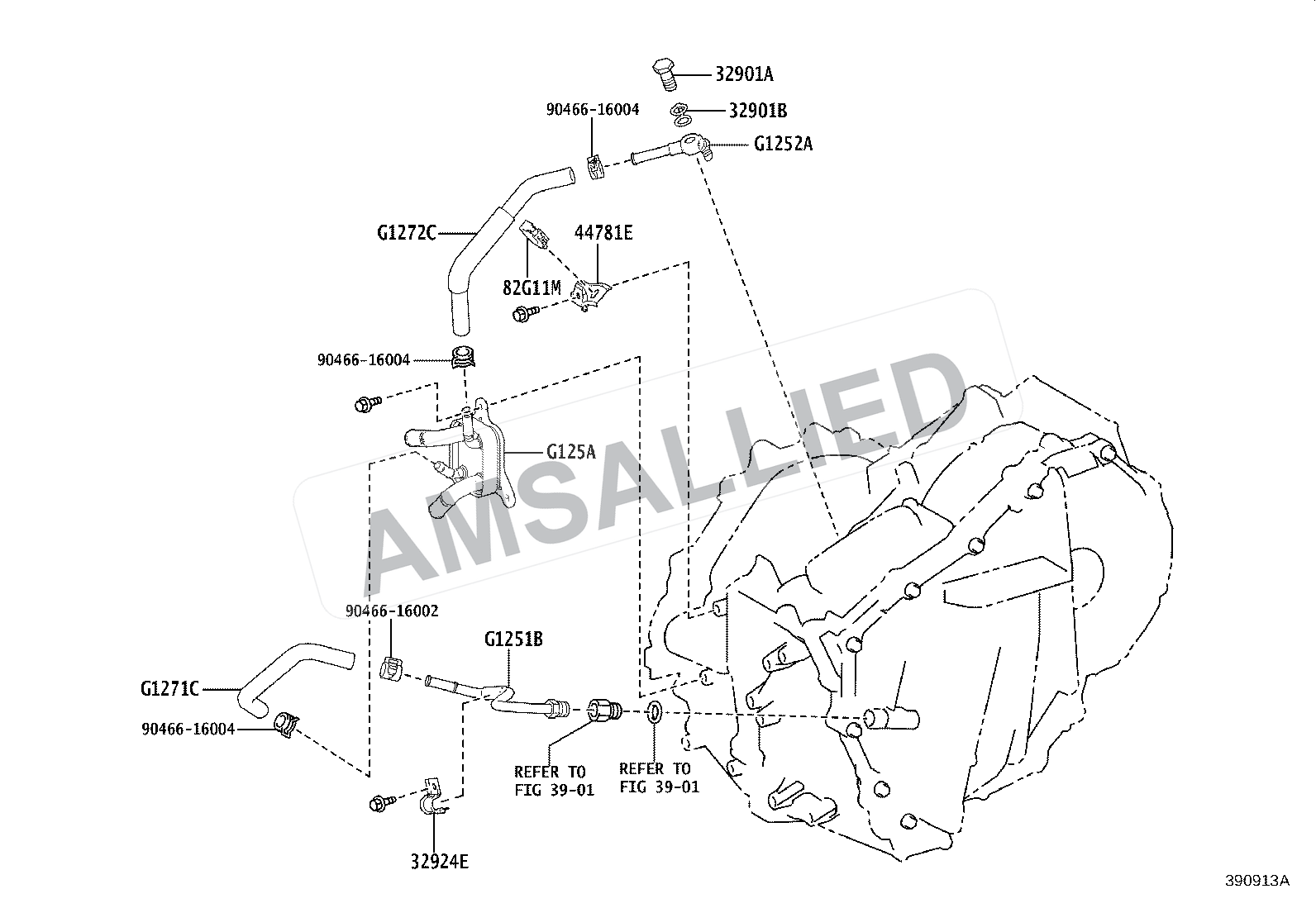

Toyota Hyryder Oil Cooler & Tube (hev Or Bev Or Fcev) exploded parts diagram, figure 3914 — AMS Allied watermarked Toyota Hyryder reference diagram.

Part numbers in this diagram

12 parts

Clamp, Oil Cooler Tube, No.2

PNC 32924E

Bracket, Hose

PNC 44781E

Clamp, Wiring Harness

PNC 82G11M

Bolt, Union(for Oil Cooler)

PNC 32901A

Gasket(for Oil Cooler Union)

PNC 32901B

Pipe, Motor Cooling, No.1

PNC G1251B

Pipe, Motor Cooling, No.2

PNC G1252A

Cooler, Motor Cooling

PNC G125A

Hose, Motor Cooling, No.1

PNC G1271C

Hose, Motor Cooling, No.2

PNC G1272C

Diagram Hardware / Fastener

PNC 9046616002

Diagram Hardware / Fastener

PNC 9046616004
