Figure 3901 · Transaxle Assy(hev Or Bev Or Fcev)

24 genuine catalog part numbers · Production from 2023-04

Open interactive figure

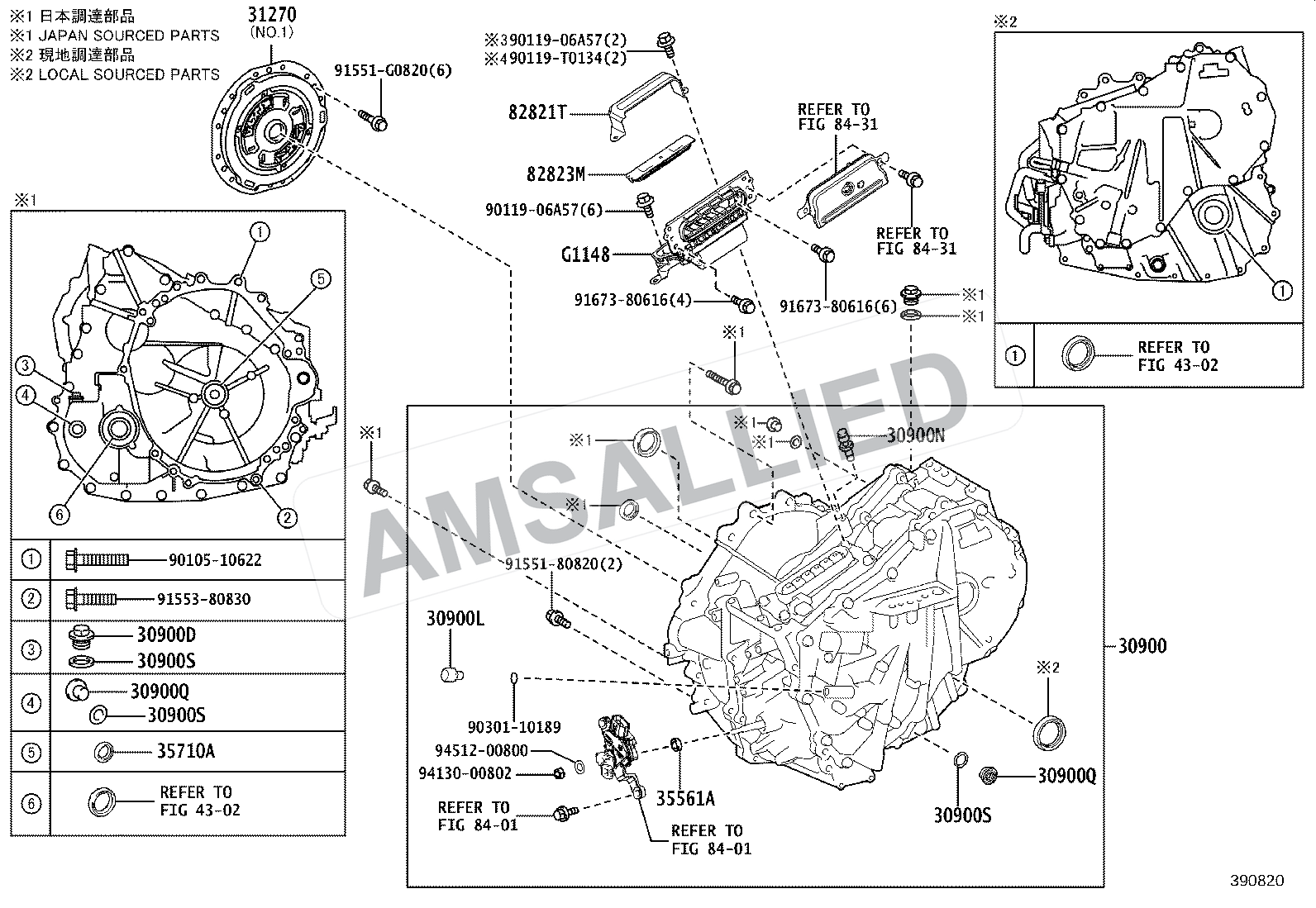

Toyota Hyryder Transaxle Assy(hev Or Bev Or Fcev) exploded parts diagram, figure 3901
AMS Allied watermarked Toyota Hyryder reference diagram.

Part numbers in this diagram

24 parts
90311-12016

Seal, Type T Oil(for Parking Lock Shaft)

PNC 35561A

90341-18060

Plug, W/head Straight Screw(for Transaxle Housing & Case)

PNC 30900D
