Gear Assy, Counter Driven & Differential Pinion
PNC 35080
Powertrain / Chassis

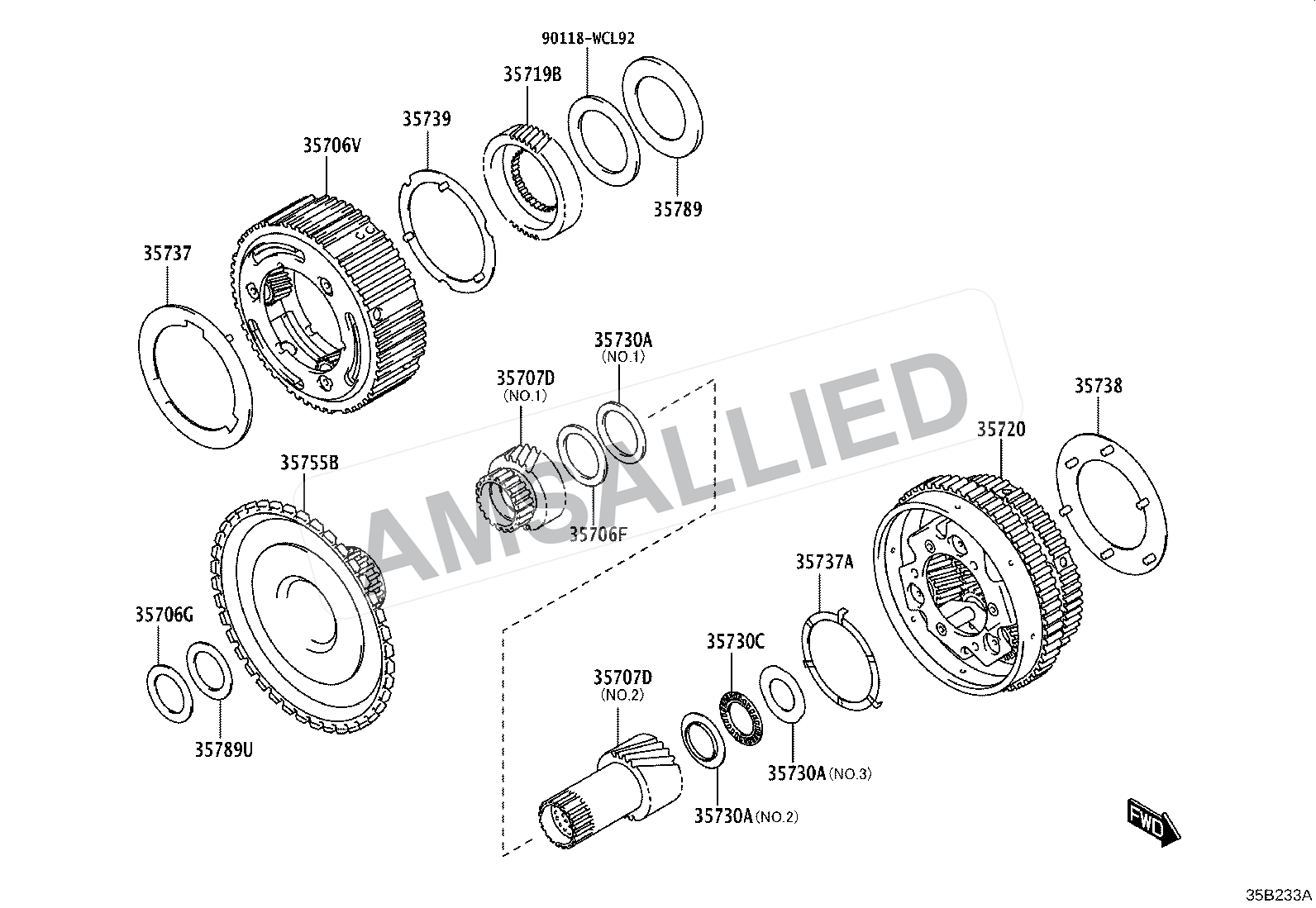

Figure 3510 · Planetary Gear, Reverse Piston & Counter Gear(atm)
24 genuine catalog part numbers · Production from 2023-04
Part numbers in this diagram
24 partsCounter Gear Kit, Automatic Transaxle
PNC 35097
Gear Sub Assy, Planetary Sun
PNC 35706V
Gear Sub-assy, Rear Planetary Sun
PNC 35707D
Gear Sub-assy, Rear Planetary Sun
PNC 35707D
Gear, Planetary Sun
PNC 35719B
Gear Assy, Front Planetary
PNC 35720
Washer, Planetary Carrier Thrust
PNC 35737
Washer, Planetary Carrier Thrust, No.3
PNC 35739
Drum, Sun Gear Input
PNC 35755B
Rotor, Sensor
PNC 89414A
Race, Thrust Bearing (for Front Planetary Gear Front)
PNC 35789C
Race, Thrust Bearing (for Front Planetary Gear Rear)
PNC 35789D
Race, Thrust Bearing (for Front Planetary Flange Front)
PNC 35789
Bearing, Thrust (for Sun Gear Rear)
PNC 35706G
Race, Thrust Bearing
PNC 35789U
Washer, Planetary Carrier Thrust, No.1
PNC 35737A
Washer, Planetary Carrier Thrust, No.2
PNC 35738
Race, Thrust Bearing (for Sun Gear Rear)
PNC 35706F
Race, Thrust Bearing (for Rear Planetary Sun Gear)
PNC 35730A
Race, Thrust Bearing (for Rear Planetary Sun Gear)
PNC 35730A
Bearing, Thrust Needle(for Rear Planetary Sun Gear, No.2)
PNC 35730C
Race, Thrust Bearing (for Rear Planetary Sun Gear)
PNC 35730A
Diagram Hardware / Fastener
PNC 90118WCL92
