Plug, Breather(for Hv Motor Assy)
PNC 31477B
Powertrain / Chassis

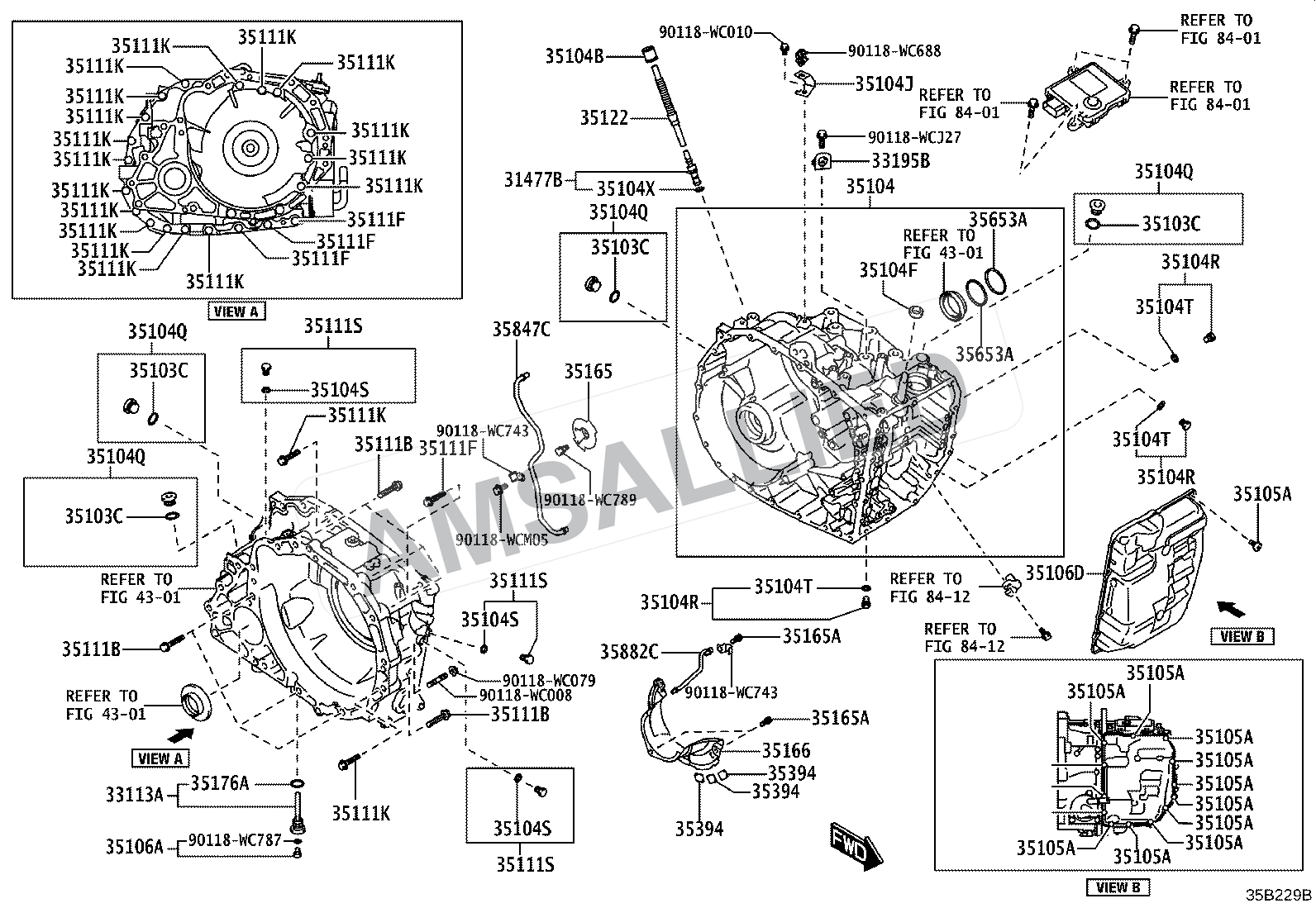

Figure 3503 · Transmission Case & Oil Pan (atm)
34 genuine catalog part numbers · Production from 2023-04
Part numbers in this diagram
34 partsPlug Sub-assy, Drain (atm)
PNC 35106A
Plate, Transmission Case, No.3
PNC 35166
Hanger, Transmission Case
PNC 33195B
Case Sub-assy, Automatic Transmission
PNC 35104
Pan Sub-assy, Automatic Transaxle Oil
PNC 35106D
Tube, Breather (for Automatic Transaxle)
PNC 35122
Plate, Transmission Case, No.1
PNC 35165
Magnet, Oil Cleaner (for Transmission)
PNC 35394
Tube, Transmission Lube Apply
PNC 35847C
Tube, Differential Gear Lube Apply
PNC 35882C
Bolt (for Transmission Housing & Engine Setting)
PNC 35111B
Plug, Breather, No.1 (atm)
PNC 35104B
Bolt (for Transaxle Housing & Transaxle Case Setting)
PNC 35111F
Seal, Oil (for Transaxle Case)
PNC 35104F
Ring, O (for Transaxle Case Plug No.1)
PNC 35104S, 35104T
Bolt (for Transmission Case Plate No.1)
PNC 35165A
Plug, Drain(for Hv Motor Assy)
PNC 33113A
Plug, No.1 (for Transaxle Case)
PNC 35104Q
Bracket, Breather Plug Hose
PNC 35104J
Bolt (for Transmission Housing & Case Setting)
PNC 35111K
Plug, No.2 (for Transaxle Case)
PNC 35104R, 35111S
Bolt, Stud (for Transmission Case Side Cover)
PNC 35105A
Ring, O (for Breather Plug)
PNC 35104X
Ring, O
PNC 35103C
Ring, O (for Wire Harness Cap)
PNC 35176A
Ring, Direct Clutch Drum Oil Seal
PNC 35653A
Diagram Hardware / Fastener
PNC 90118WC743
Diagram Hardware / Fastener
PNC 90118WC010
Diagram Hardware / Fastener
PNC 90118WC688
Diagram Hardware / Fastener
PNC 90118WC008
Diagram Hardware / Fastener
PNC 90118WC079
Diagram Hardware / Fastener
PNC 90118WCM05
Diagram Hardware / Fastener
PNC 90118WCJ27
