Powertrain / Chassis

Figure 3312 · Shift Lever & Retainer

43 genuine catalog part numbers · Production from 2023-04

Open interactive figure

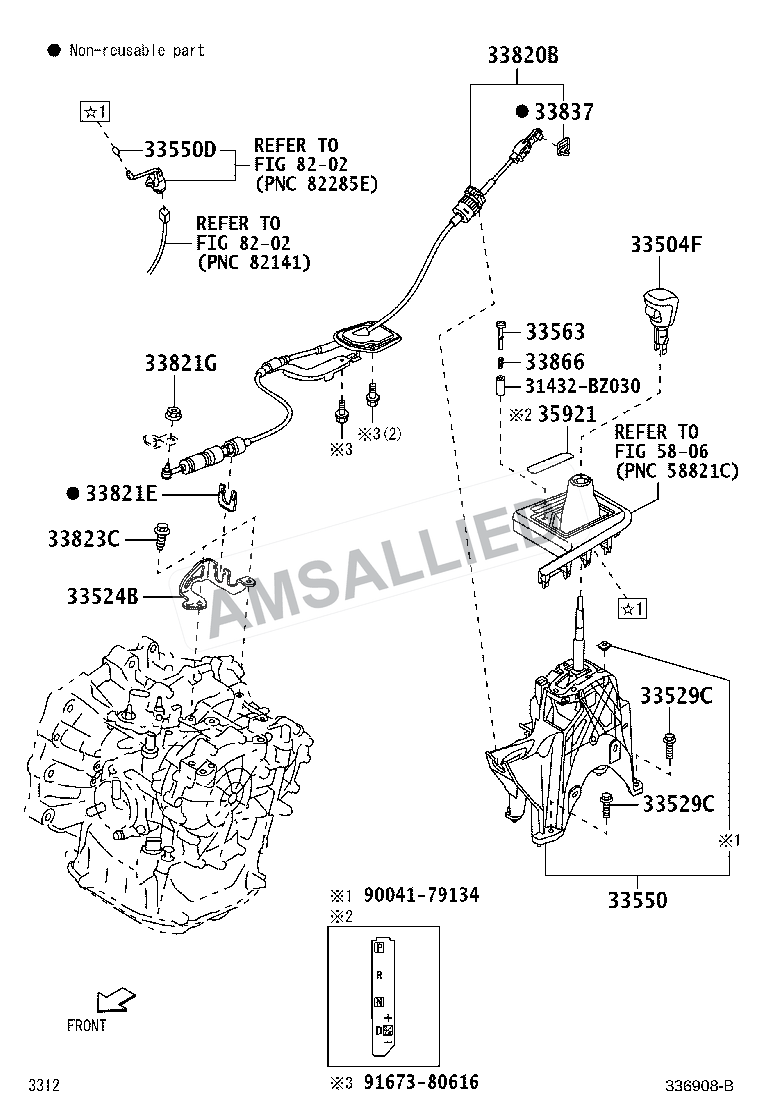

Toyota Hyryder Shift Lever & Retainer exploded parts diagram, figure 3312
AMS Allied watermarked Toyota Hyryder reference diagram.

Part numbers in this diagram

43 parts
33524-WC002

Bracket, Control Lever Housing Support (for Floor Shift)

PNC 33524F

33530-WC029

Lever Assy, Shift (for Floor Shift)

PNC 33530F

33530-WC038

Lever Assy, Shift (for Floor Shift)

PNC 33530F

33530-WC041

Lever Assy, Shift (for Floor Shift)

PNC 33530F

33823-WC004

Bracket, Transmission Control Cable, No.1

PNC 33823

33823-WC005

Bracket, Transmission Control Cable, No.1

PNC 33823

90118-WC012

Bolt (for Transmission Control Cable Bracket)

PNC 33823C

90118-WCM18

Bracket, Transmission Control Cable, No.3

PNC 33827

90118-WCM19

Bracket, Transmission Control Cable, No.2

PNC 33826A
