Powertrain / Chassis

Figure 3302 · Clutch Housing & Transmission Case (mtm)

26 genuine catalog part numbers · Production from 2023-04

Open interactive figure

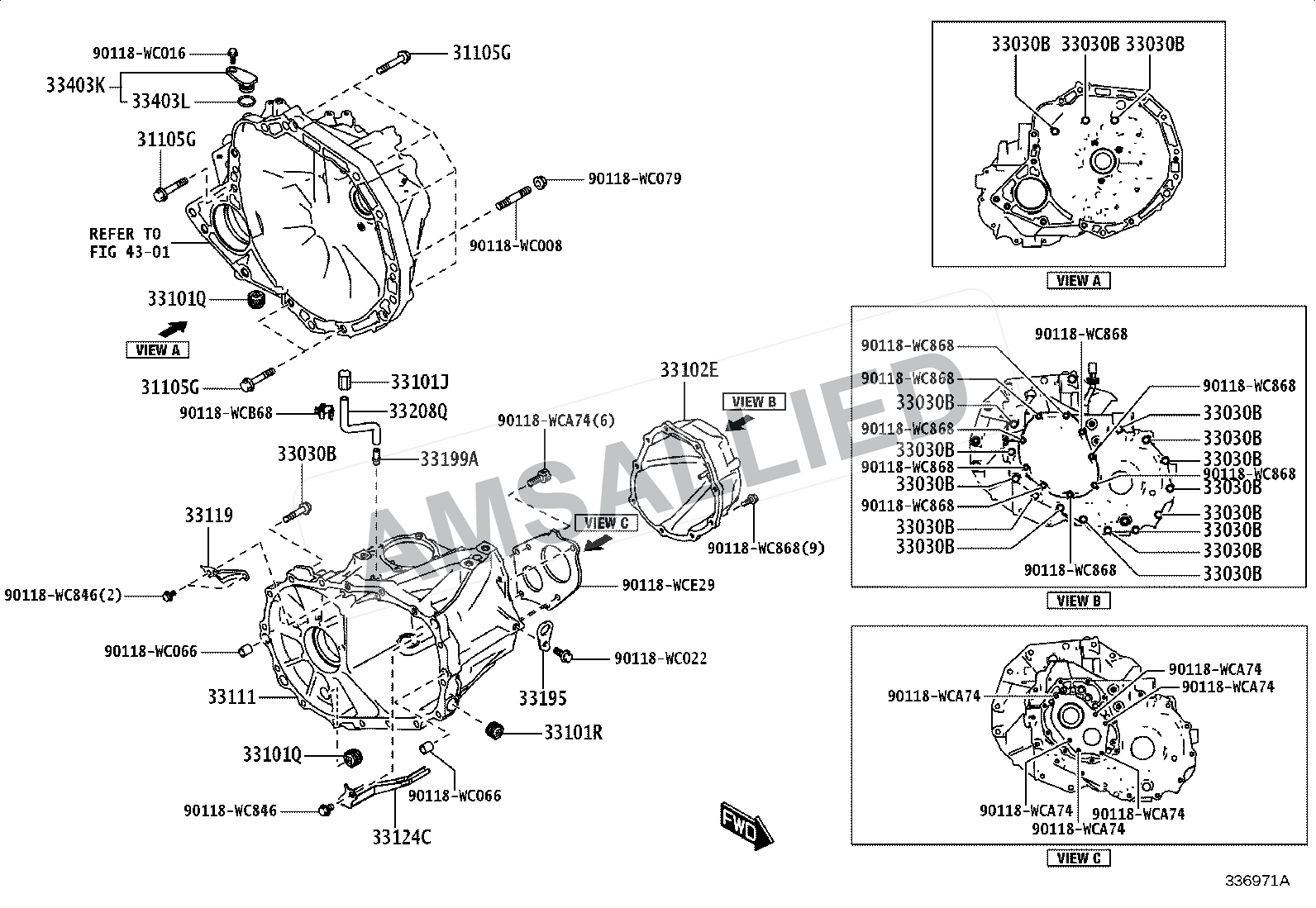

Toyota Hyryder Clutch Housing & Transmission Case (mtm) exploded parts diagram, figure 3302 — AMS Allied watermarked Toyota Hyryder reference diagram.

Part numbers in this diagram

26 parts

33102-WC002

Cover Sub-assy, Manual Transmission Case

PNC 33102E

33111-WC015

Case, Manual Transmission

PNC 33111

33111-WC019

Case, Manual Transmission

PNC 33111

33124-WC004

Pipe, Oil Receiver, No.1(mtm)

PNC 33124C

33195-WC003

Hanger, Transmission Case, No.1

PNC 33195

33199-WC002

Plate, Stiffener, Lh(mtm)

PNC 33119

33403-WC001

Cover Sub-assy, Speedometer Driven Hole

PNC 33403K

90118-WC027

Bolt(for Transaxle Case & Transmission Case Setting)

PNC 33030B

90118-WC200

Plug, No.1(for Transmission Case)

PNC 33101Q

90118-WC214

Ring, O

PNC 33403L

90118-WC403

Protector, Breather

PNC 33199A

90118-WC424

Plug, Breather

PNC 33101J

90118-WC658

Bolt(for Transaxle Case & Engine Setting)

PNC 31105G

90118-WCA76

Hose, Breather

PNC 33208Q

90118-WCU36

Plug, No.2(for Transmission Case)

PNC 33101R

90118-WCU53

Plug, No.1(for Transmission Case)

PNC 33101Q

90118-WCA74

Diagram Hardware / Fastener

PNC 90118WCA74

90118-WC066

Diagram Hardware / Fastener

PNC 90118WC066

90118-WC868

Diagram Hardware / Fastener

PNC 90118WC868

90118-WC008

Diagram Hardware / Fastener

PNC 90118WC008

90118-WCB68

Diagram Hardware / Fastener

PNC 90118WCB68

90118-WC846

Diagram Hardware / Fastener

PNC 90118WC846

90118-WC079

Diagram Hardware / Fastener

PNC 90118WC079

90118-WC022

Diagram Hardware / Fastener

PNC 90118WC022

90118-WCE29

Diagram Hardware / Fastener

PNC 90118WCE29

90118-WC016

Diagram Hardware / Fastener

PNC 90118WC016
