Insulator, Intake Pipe
PNC 17117A
Tool / Engine / Fuel

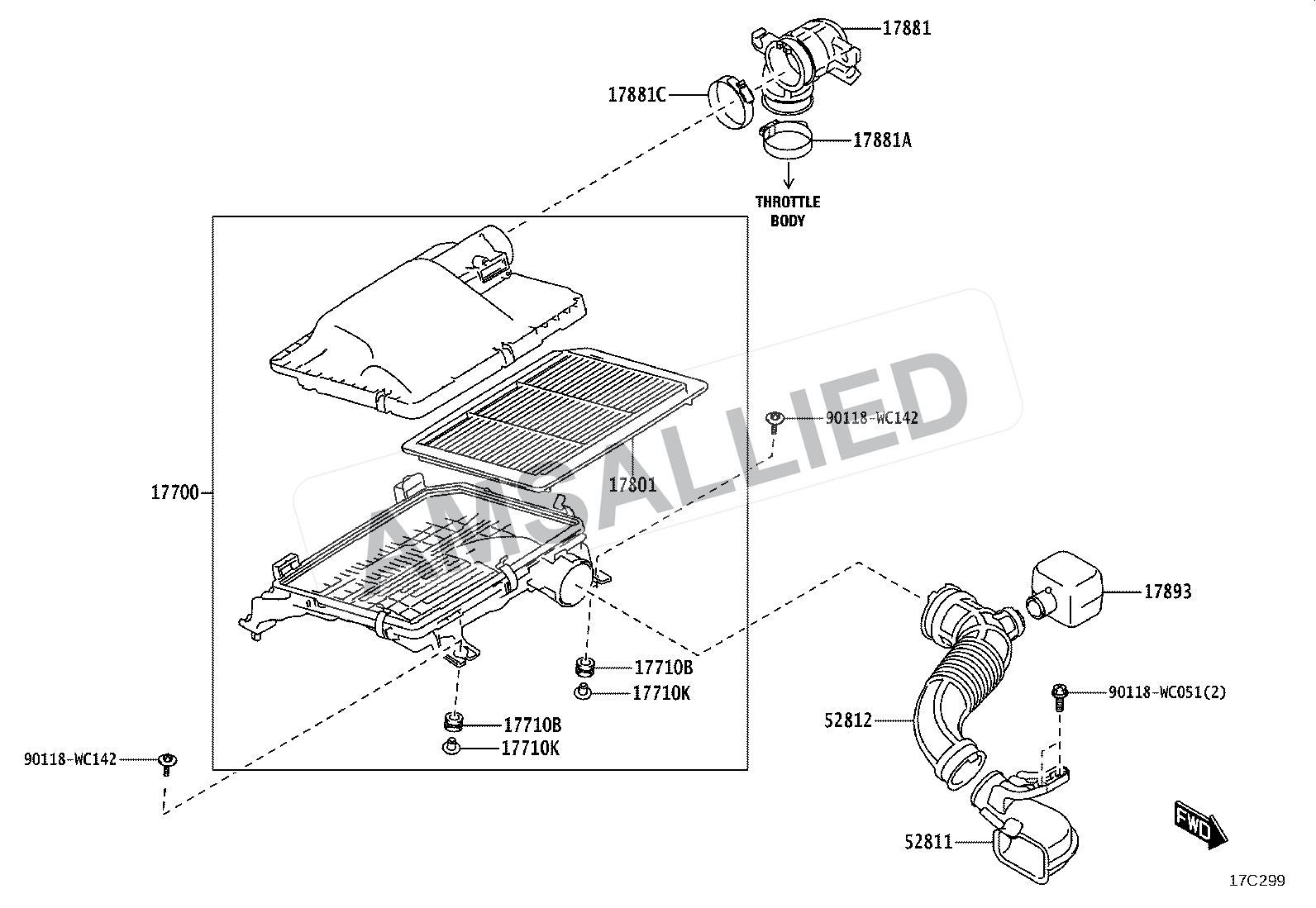

Figure 1703 · Air Cleaner
29 genuine catalog part numbers · Production from 2023-04
Part numbers in this diagram
29 partsCleaner Assy, Air
PNC 17700
Cleaner Assy, Air
PNC 17700
Bracket, Air Cleaner
PNC 17771A
Element Sub-assy, Air Cleaner Filter
PNC 17801
Element Sub-assy, Air Cleaner Filter
PNC 17801
Hose, Air Cleaner, No.1
PNC 17881
Hose, Air Cleaner, No.1
PNC 17881
Resonator, Intake Air
PNC 17893
Resonator, Intake Air
PNC 17893
Meter Sub-assy, Intake Air Flow
PNC 22204
Meter Sub-assy, Intake Air Flow
PNC 22204
Duct, Cool Air Intake, No.1
PNC 52811
Duct, Cool Air Intake, No.1
PNC 52811
Duct, Cool Air Intake, No.2
PNC 52812
Duct, Cool Air Intake, No.2
PNC 52812
Grommet
PNC 17710B
Support, Air Cleaner
PNC 17769
Collar(for Air Cleaner)
PNC 17710K
Clamp(for Air Cleaner Hose, No.1)
PNC 17881A, 17881C
Clamp(for Air Cleaner Hose, No.1)
PNC 17881A
Grommet
PNC 17710B
Collar(for Air Cleaner)
PNC 17710K
Diagram Hardware / Fastener
PNC 90118WC142
Diagram Hardware / Fastener
PNC 90118WC051
Diagram Hardware / Fastener
PNC 90119C0539
Diagram Hardware / Fastener
PNC 9009900289
Diagram Hardware / Fastener
PNC 9011906A17
Diagram Hardware / Fastener
PNC 90167C0002
