Water Inlet Sub-assy, W/thermostat
PNC 16031
Tool / Engine / Fuel

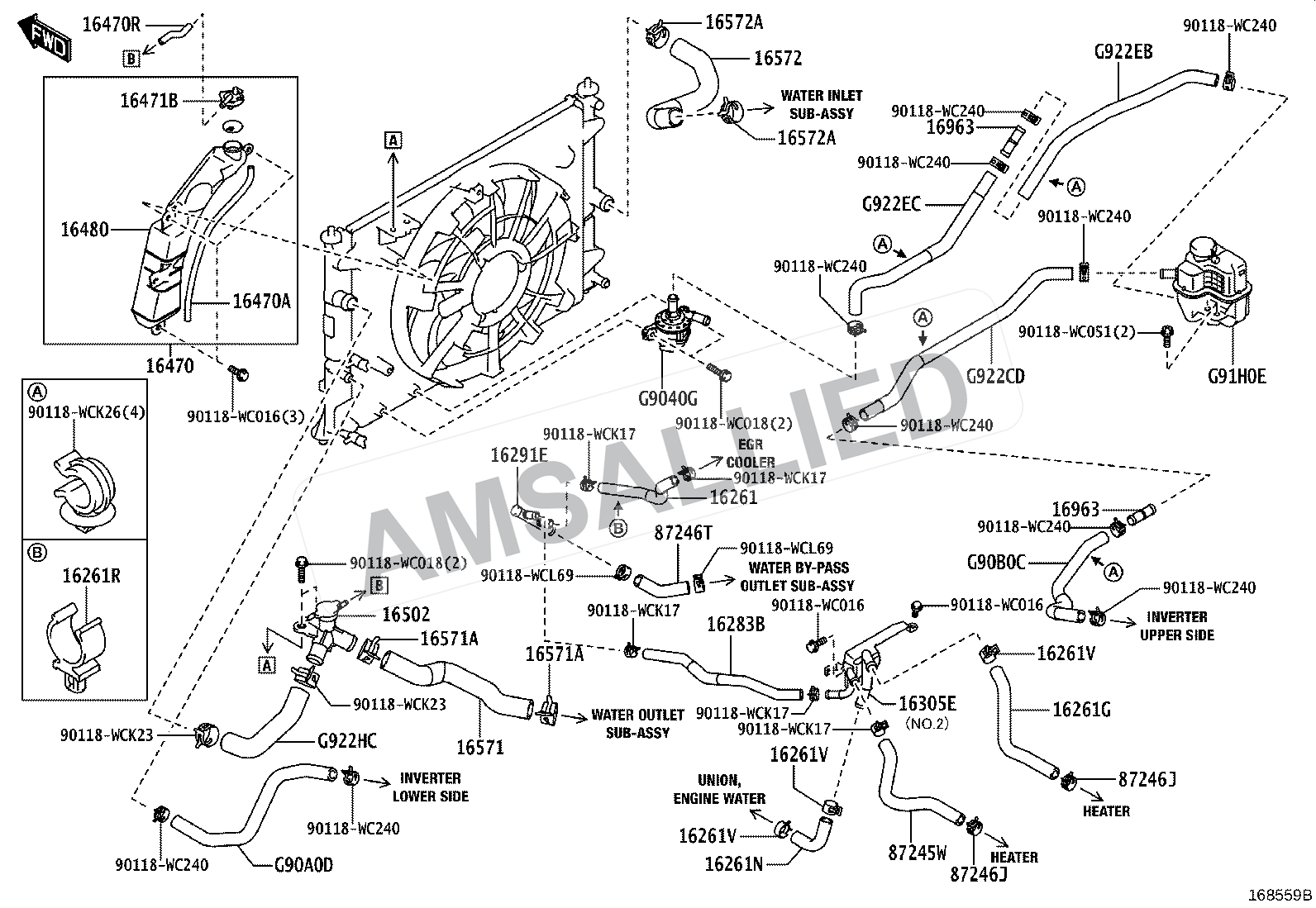

Figure 1603 · Radiator & Water Outlet
101 genuine catalog part numbers · Production from 2023-04
Part numbers in this diagram
101 partsHousing Sub-assy, Water Inlet W/water Pump
PNC 16032
Housing Sub-assy, Water Inlet W/water Pump
PNC 16032
Pipe Sub-assy, Water By-pass
PNC 16206
Pipe Sub-assy, Water By-pass
PNC 16206
Hose, Water By-pass
PNC 16261
Hose, Water By-pass
PNC 16261Q
Hose, Water By-pass
PNC 16261
Hose, Water Inlet
PNC 16262
Hose, Water By-pass
PNC 16261L
Pipe
PNC 16963
Pipe, Water By-pass, No.2
PNC 16278
Hose, Water By-pass, No.4
PNC 16281
Hose, Water By-pass
PNC 16283B
Hose, Water By-pass, No.5
PNC 16282
Hose, Water By-pass, No.6
PNC 16283
Joint,water Hose, No.1
PNC 16291E
Hose, Water By-pass, No.8
PNC 16296
Outlet Sub-assy, Water
PNC 16304
Outlet Sub-assy, Water By-pass
PNC 16305E
Outlet Sub-assy, Water By-pass
PNC 16305E
Inlet, Water
PNC 16321
Housing, Water Inlet
PNC 16323
Housing, Water Inlet
PNC 16323
Gasket, Water Inlet Housing, No.1
PNC 16325
Gasket, Water Inlet Housing, No.1
PNC 16325
Gasket(for Water Inlet Housing)
PNC 16323A
Gasket, Water Inlet Housing, No.2
PNC 16326
Thermostat
PNC 16331A
Gasket, Water Outlet
PNC 16341
Gasket, Water Outlet Pipe
PNC 16345
Fan Assy, W/motor
PNC 16360A
Fan Assy, W/motor
PNC 16360A
Fan
PNC 16361
Motor, Cooling Fan
PNC 16363
Hose Or Pipe(for Radiator Reserve Tank)
PNC 16470A
Radiator Assy
PNC 16400
Radiator Assy
PNC 16400
Cap Sub-assy, Radiator
PNC 16401
Plug, Radiator Drain Cock
PNC 16400B
Tank Assy, Radiator Reserve
PNC 16470
Reserve Tank Assy, Radiator W/o Cap
PNC 16480
Tank Assy, Radiator Reserve
PNC 16470
Cap, Reserve Tank
PNC 16471B
Packing
PNC 16418
Packing(for Radiator Drain Cock)
PNC 16400F
Filler Sub-assy, Water
PNC 16502
Cushion, Sub-radiator Support
PNC 16523
Seal, Radiator To Support, No.1
PNC 16561
Seal, Radiator To Support, No.2
PNC 16562
Seal, Radiator To Support, No.2
PNC 16562
Seal, Radiator To Support, No.3
PNC 16563
Seal, Radiator To Support, No.3
PNC 16563
Hose, Radiator, Inlet
PNC 16571
Hose, Radiator, Inlet
PNC 16571
Hose, Radiator, Outlet
PNC 16572
Hose, Radiator, Outlet
PNC 16572
Bracket, Water Hose Clamp, No.1
PNC 16575C
Clamp, Hose(for Water Hose)
PNC 16581W
Shroud, Fan
PNC 16711
Hose, Oil Cooler Inlet
PNC 32941U
Hose, Oil Cooler Outlet
PNC 32942R
Clamp Or Clip, Hose(for Water By-pass Hose)
PNC 16261A
Hose, Water By-pass, No.2
PNC 16261N
Hose, Water By-pass, No.2
PNC 16261N
Hose, Water
PNC 87245W
Hose, Water By-pass, No.1
PNC 16261G
Hose, Water By-pass, No.1
PNC 16261G
Hose, Water, No.2
PNC 87246T
Clamp Or Clip, Hose(for Water By-pass Hose)
PNC 16261V, 32941V, 87246J
Clamp Or Clip, Hose(for Radiator Inlet)
PNC 16571A, 16572A
Support, Radiator, Lower
PNC 16535
Clip(for Water By-pass Hose No.1)
PNC 16261H, 16262A
Hose, No.2(for Radiator Reserve Tank)
PNC 16470R
Clamp Or Clip, Hose(for Water By-pass Hose)
PNC 16261V
Clamp Or Clip, Hose(for Radiator Inlet)
PNC 16571A, 16572A
Bracket, Radiator, No.1
PNC 16582
Bracket, Radiator, No.1
PNC 16582
Clamp Or Clip(for Water By-pass Hose)
PNC 16261R
Hose, No.2(for Radiator Reserve Tank)
PNC 16470R
Clamp Or Clip(for Water By-pass Hose No.4)
PNC 16281A, 16282A, 16296A
Clamp Or Clip(for Water By-pass Hose No.6)
PNC 16283A
Pump Assy, Water
PNC G9040G
Hose Assy, Inverter Cooling
PNC G90A0D
Hose Assy, Inverter Cooling
PNC G90B0C
Tank Assy, Inverter Reserve
PNC G91H0E
Hose, Inverter Cooling Outlet
PNC G922CD
Hose, Hev Water Pump Inlet
PNC G922EB
Hose, Hev Water Pump Inlet
PNC G922EC
Hose, Hev Radiator Inlet
PNC G922HC
Diagram Hardware / Fastener
PNC 90118WC051
Diagram Hardware / Fastener
PNC 90118WC018
Diagram Hardware / Fastener
PNC 90118WC016
Diagram Hardware / Fastener
PNC 90118WCK17
Diagram Hardware / Fastener
PNC 90118WCL69
Diagram Hardware / Fastener
PNC 90118WCK26
Diagram Hardware / Fastener
PNC 90118WC343
Diagram Hardware / Fastener
PNC 90118WCC48
Diagram Hardware / Fastener
PNC 90118WCT46
Diagram Hardware / Fastener
PNC 90118WC021
Diagram Hardware / Fastener
PNC 90118WCL76
