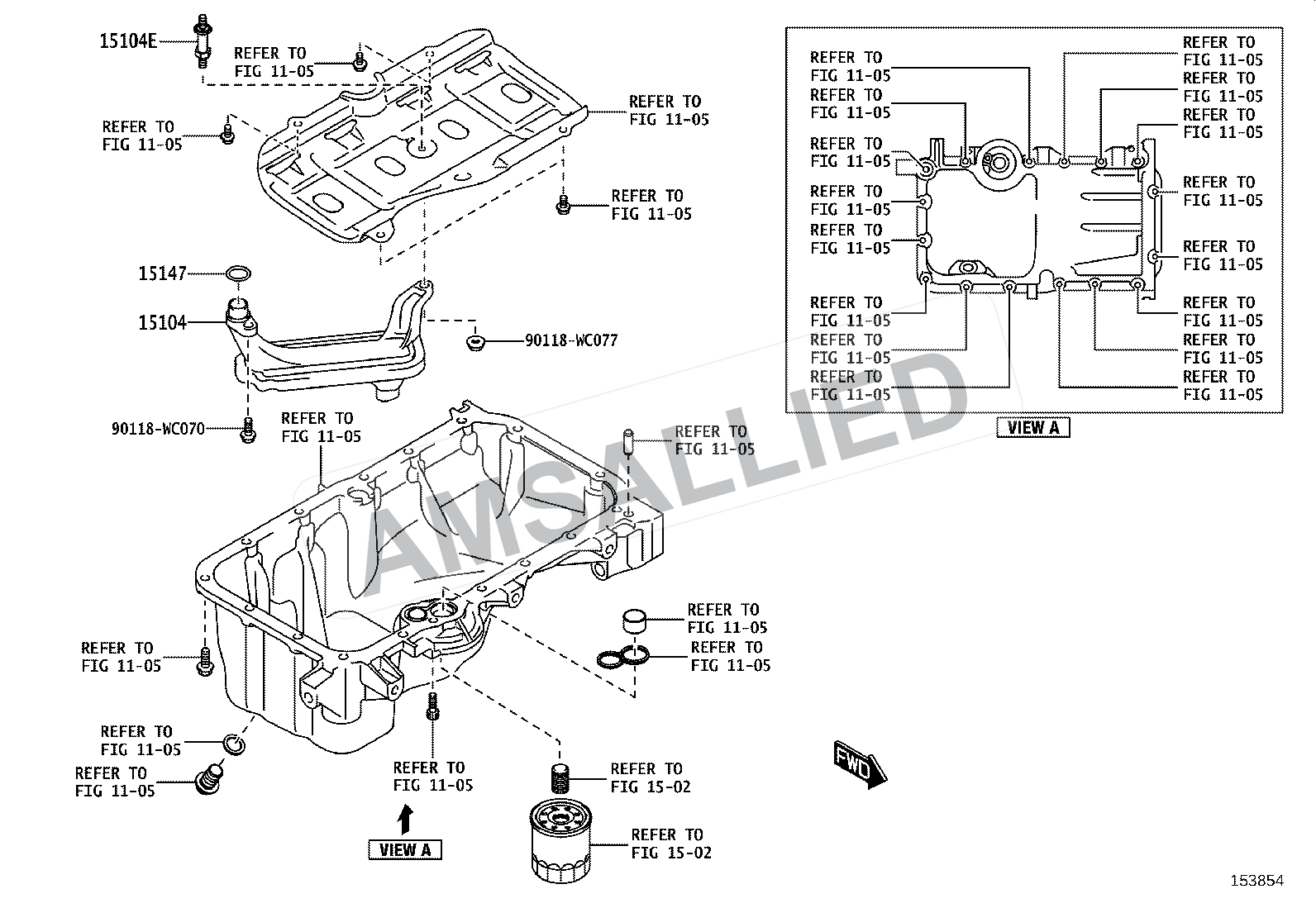

Figure 1501 · Engine Oil Pump

14 genuine catalog part numbers · Production from 2023-04

Open interactive figure

Toyota Hyryder Engine Oil Pump exploded parts diagram, figure 1501 — AMS Allied watermarked Toyota Hyryder reference diagram.

Part numbers in this diagram

14 parts

Pump Assy, Oil

PNC 15100

Rotor Set, Oil Pump

PNC 15102

Strainer Sub-assy, Oil

PNC 15104

Strainer Sub-assy, Oil

PNC 15104

Valve, Oil Pump Relief

PNC 15131

Gasket, Oil Strainer

PNC 15147

Spacer(for Oil Pump Drive Shaft Gear)

PNC 15186

Bolt, Stud(for Oil Strainer)

PNC 15104E

Gasket, Oil Strainer

PNC 15147

Diagram Hardware / Fastener

PNC 90118WC077

Diagram Hardware / Fastener

PNC 90118WC070

Diagram Hardware / Fastener

PNC 90118WC072

Diagram Hardware / Fastener

PNC 90118WC334

Diagram Hardware / Fastener

PNC 90118WCG16
