Gear Assy, Camshaft Timing
PNC 13050
Tool / Engine / Fuel

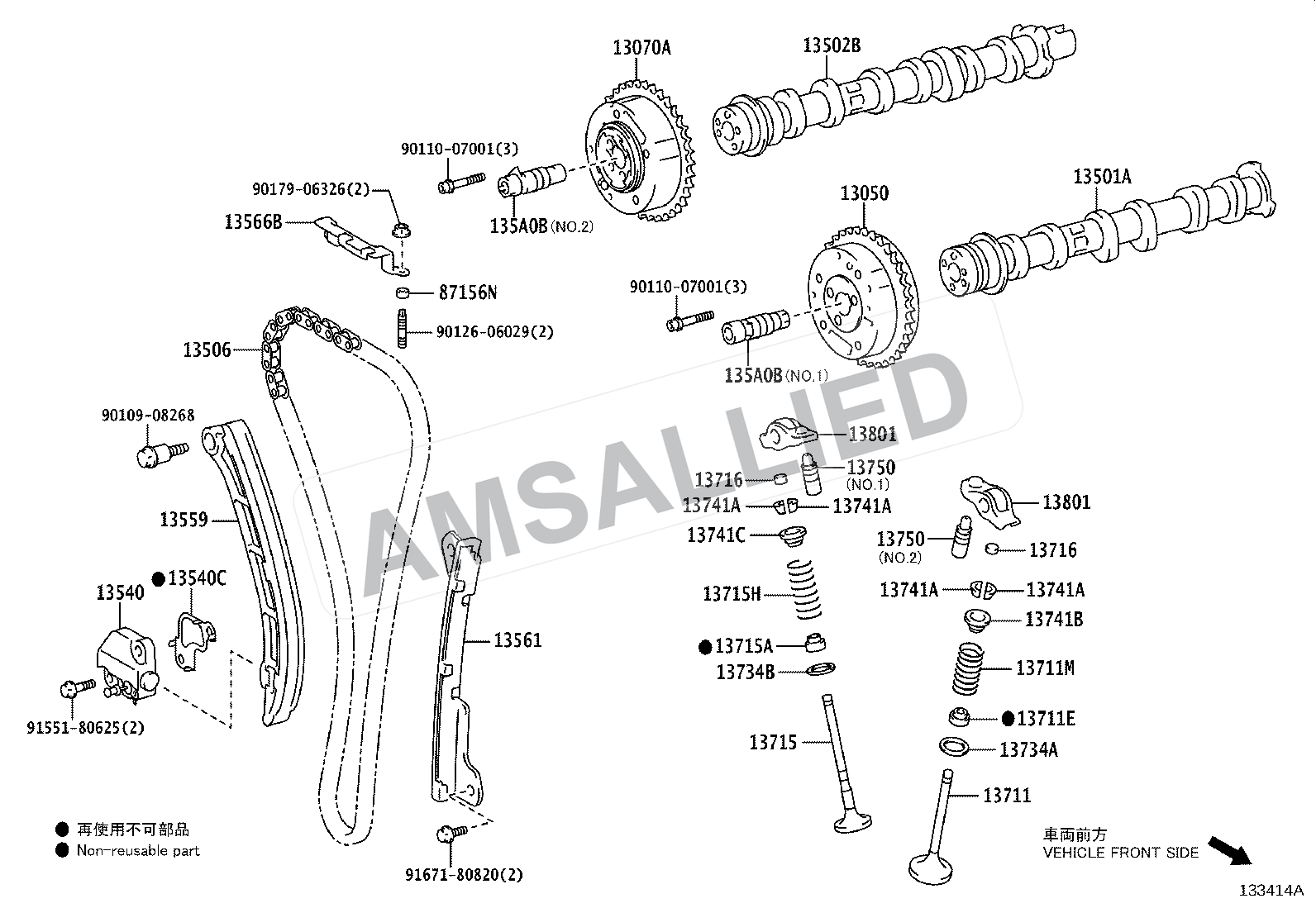

Figure 1302 · Camshaft & Valve
50 genuine catalog part numbers · Production from 2023-04
Part numbers in this diagram
50 partsSprocket Assy, Camshaft Timing
PNC 13520
Gear Assy, Camshaft Timing Exhaust
PNC 13070A
Gear Assy, Camshaft Timing Exhaust
PNC 13070A
Camshaft Sub-assy, Intake
PNC 13501A
Camshaft Sub-assy, Intake
PNC 13501A
Camshaft Sub-assy, Exhaust
PNC 13502B
Camshaft Sub-assy, Exhaust
PNC 13502B
Chain Sub-assy
PNC 13506
Chain Sub-assy
PNC 13506
Jet, Oil
PNC 13516
Tensioner Assy, Chain, No.1
PNC 13540
Tensioner Assy, Chain, No.1
PNC 13540
Slipper, Chain Tensioner
PNC 13559
Slipper, Chain Tensioner
PNC 13559
Damper, Chain Vibration, No.1
PNC 13561
Guide, Timing Chain
PNC 13566B
Bolt Assy, Camshaft Timing Gear, Center(for Intake)
PNC 135A0
Valve Assy, Camshaft Timing
PNC 135A0B
Valve, Intake
PNC 13711
Valve, Intake
PNC 13711
Valve, Exhaust
PNC 13715
Valve, Exhaust
PNC 13715
Valve, Exhaust
PNC 13715
Cap, Valve Stem
PNC 13716
Seat, Intake Valve Spring
PNC 13734A, 13734B
Seat, Intake Valve Spring
PNC 13734A, 13734B
Retainer, Intake Valve Spring
PNC 13741B, 13741C
Retainer, Valve Spring
PNC 13741
Adjuster Assy, Valve Lash
PNC 13750
Adjuster Assy, Valve Lash
PNC 13750
Arm Sub-assy, Valve Rocker, No.1
PNC 13801
Arm Sub-assy, Valve Rocker, No.1
PNC 13801
Pin, Straight(for Chain Tensioner Slipper)
PNC 13559B
Lock, Valve Spring Retainer
PNC 13741A
Spring, Compression(for Exhaust Valve)
PNC 13715H
Spring, Compression(for Intake Valve)
PNC 13711M
Seal, Intake Valve Stem Oil
PNC 13711E, 13715A
Spring, Compression(for Intake Valve)
PNC 13711M, 13715H
Seal, Intake Valve Stem Oil
PNC 13711E
Seal, Exhaust Valve Stem Oil
PNC 13715A
Lock, Valve Spring Retainer
PNC 13741A
Seal, Intake Valve Stem Oil
PNC 13711E
Seal, Exhaust Valve Stem Oil
PNC 13715A
Diagram Hardware / Fastener
PNC 9012606029
Diagram Hardware / Fastener
PNC 9017906326
Diagram Hardware / Fastener
PNC 9167180820
Diagram Hardware / Fastener
PNC 9155180625
Diagram Hardware / Fastener
PNC 9010908268
Diagram Hardware / Fastener
PNC 9011007001
