Figure 1107 · Mounting

44 genuine catalog part numbers · Production from 2023-04

Open interactive figure

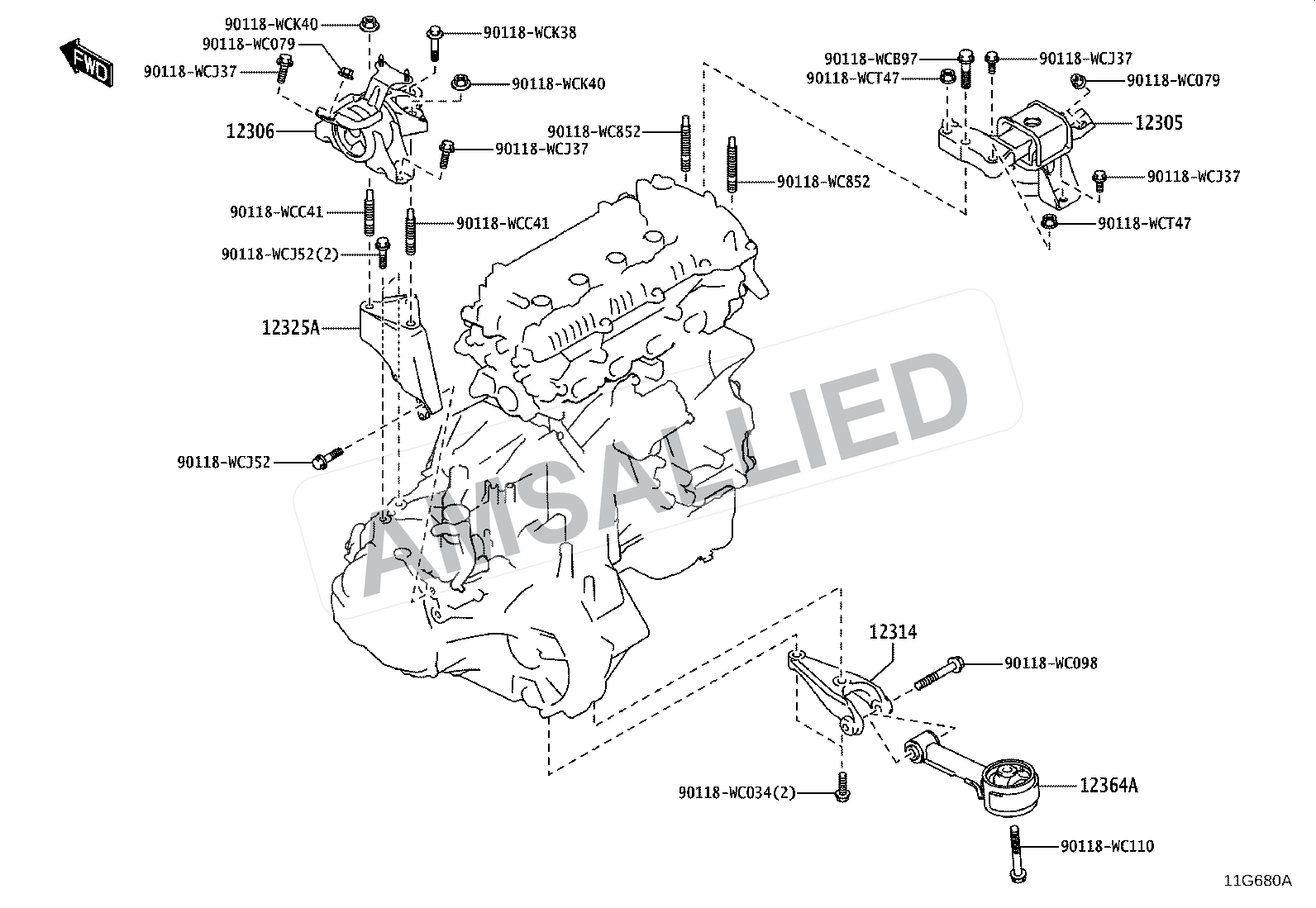

Toyota Hyryder Mounting exploded parts diagram, figure 1107
AMS Allied watermarked Toyota Hyryder reference diagram.

Part numbers in this diagram

44 parts
12305-WC008

Insulator Sub-assy, Engine Mounting, Rh

PNC 12305

12305-WC009

Insulator Sub-assy, Engine Mounting, Rh

PNC 12305

12306-WC010

Insulator Sub-assy, Engine Mounting, Lh

PNC 12306

12306-WC011

Insulator Sub-assy, Engine Mounting, Lh

PNC 12306

12313-WC008

Bracket, Engine Mounting Control(for Transverse Engine)

PNC 12313, 12314

12313-WC009

Bracket, Engine Mounting Control(for Transverse Engine)

PNC 12313

12315-15100

Bracket, Engine Mounting, Rh(for Transverse Engine)

PNC 12315A

12315-F3070

Bracket, Engine Mounting, Rh(for Transverse Engine)

PNC 12315A

12325-WC002

Bracket, Engine Mounting, Lh(for Transverse Engine)

PNC 12325A

12325-WC008

Bracket, Engine Mounting, Lh(for Transverse Engine)

PNC 12325A
