Figure 1106 · Timing Gear Cover & Rear End Plate

22 genuine catalog part numbers · Production from 2023-04

Open interactive figure

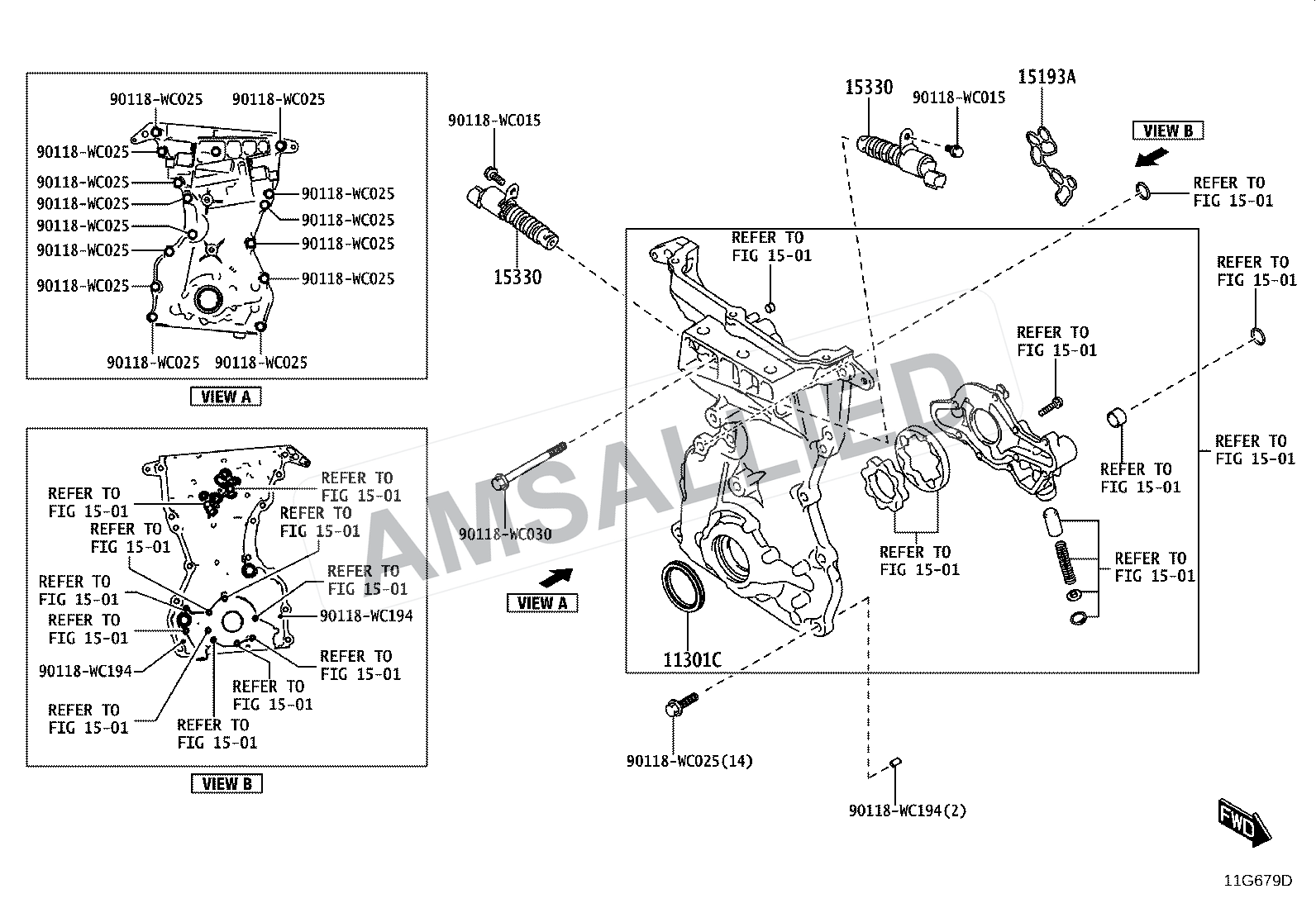

Toyota Hyryder Timing Gear Cover & Rear End Plate exploded parts diagram, figure 1106
AMS Allied watermarked Toyota Hyryder reference diagram.

Part numbers in this diagram

22 parts
15370-F2010

Solenoid Assy, Cam Timing Oil Control

PNC 15370

90118-WC339

Seal, Oil(for Timing Gear Case Or Timing Chain Case)

PNC 11301C

90250-06003

Pin, Straight(for Timing Chain Cover)

PNC 11302J

90311-40044

Seal, Oil(for Timing Gear Case Or Timing Chain Case)

PNC 11301C

90311-T0092

Seal, Oil(for Timing Gear Case Or Timing Chain Case)

PNC 11301C
