Electrical

Figure 8615 · Telephone & Mayday

10 genuine catalog part numbers · Production from 2022-08

Open interactive figure

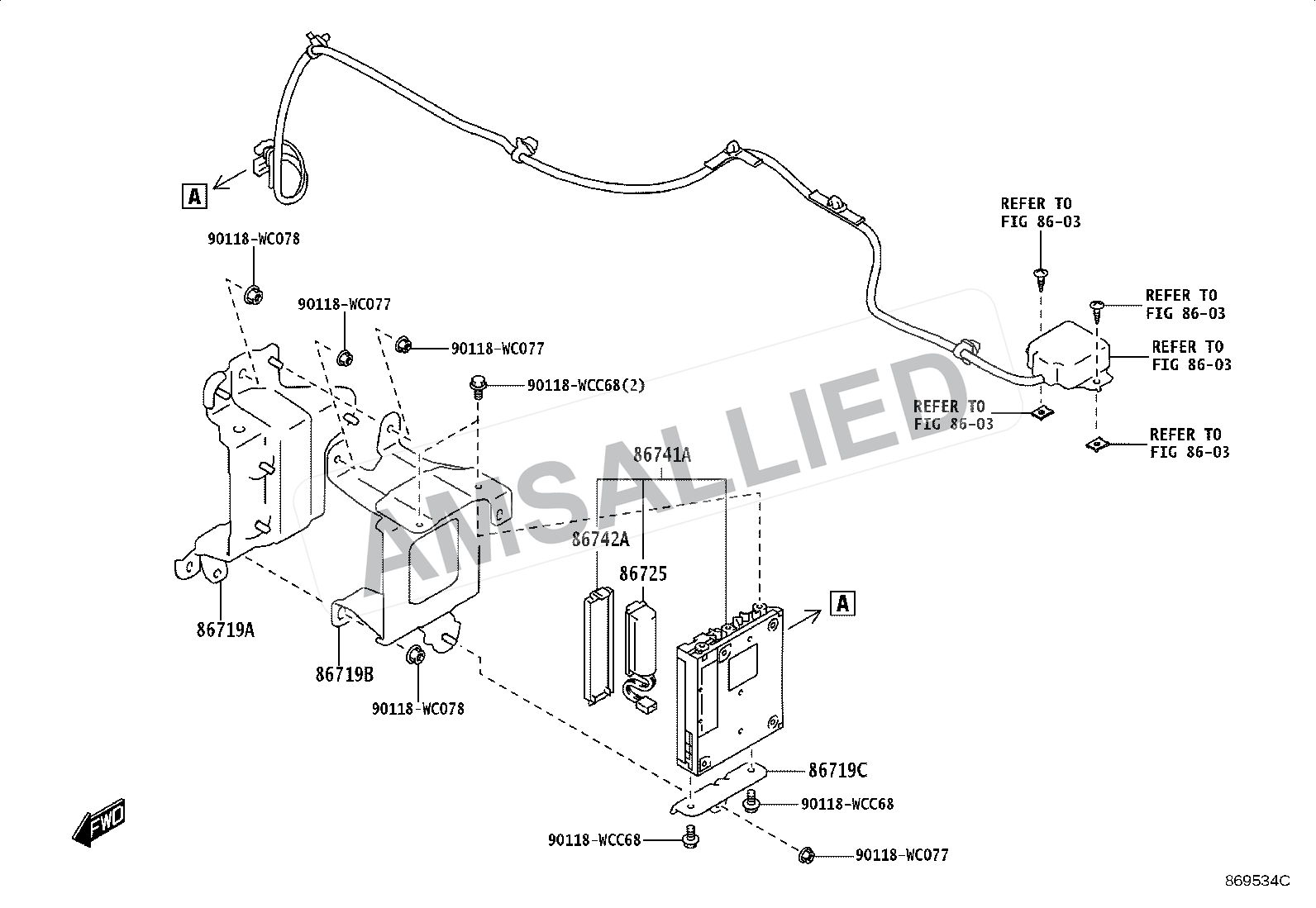

Toyota Hyryder Telephone & Mayday exploded parts diagram, figure 8615 — AMS Allied watermarked Toyota Hyryder reference diagram.

Part numbers in this diagram

10 parts

Cradle Assy, Mobile Wireless Charger

PNC 861C0

Bracket, Telephone No.2

PNC 86719B

Bracket, Telephone No.1

PNC 86719A

Bracket, Telephone No.3

PNC 86719C

Battery, Mobilephone

PNC 86725

Transceiver, Telematics

PNC 86741A

Cover, Transceiver

PNC 86742A

Diagram Hardware / Fastener

PNC 90118WCC68

Diagram Hardware / Fastener

PNC 90118WC077

Diagram Hardware / Fastener

PNC 90118WC078
