Figure 8504 · Rear Washer

6 genuine catalog part numbers · Production from 2022-08

Open interactive figure

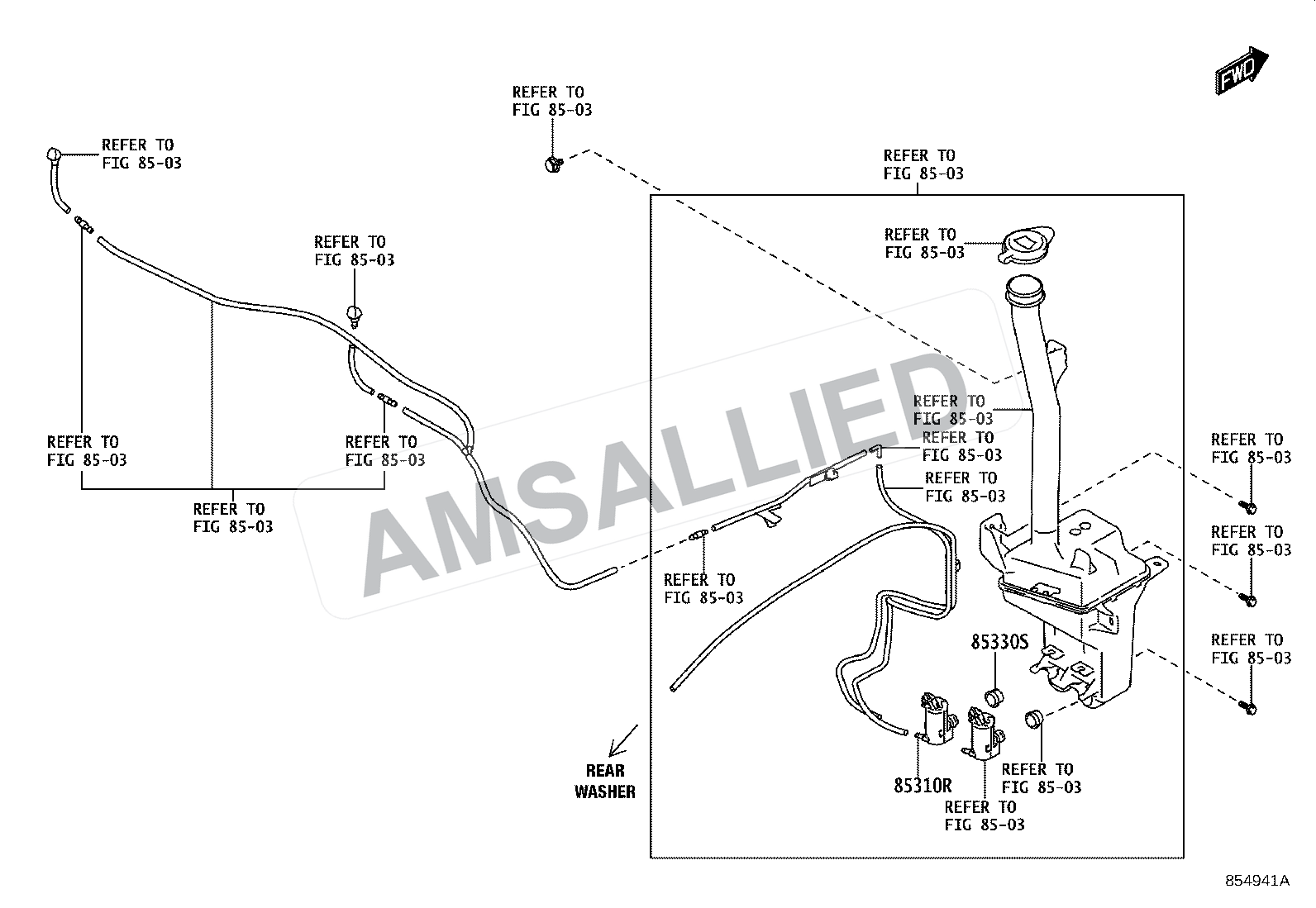

Toyota Hyryder Rear Washer exploded parts diagram, figure 8504 — AMS Allied watermarked Toyota Hyryder reference diagram.

Part numbers in this diagram

6 parts

Motor Assy, Rear Washer

PNC 85310R

Bush, Rear Washer Jar

PNC 85330S

Hose Assy, Rear Washer, No.1

PNC 85370D

Hose Assy, Rear Washer, No.2

PNC 85370E

Nozzle Sub-assy, Rear Washer

PNC 85035R

Diagram Hardware / Fastener

PNC 90118WCM97
