Electrical

Figure 8503 · Windshield Washer

17 genuine catalog part numbers · Production from 2022-08

Open interactive figure

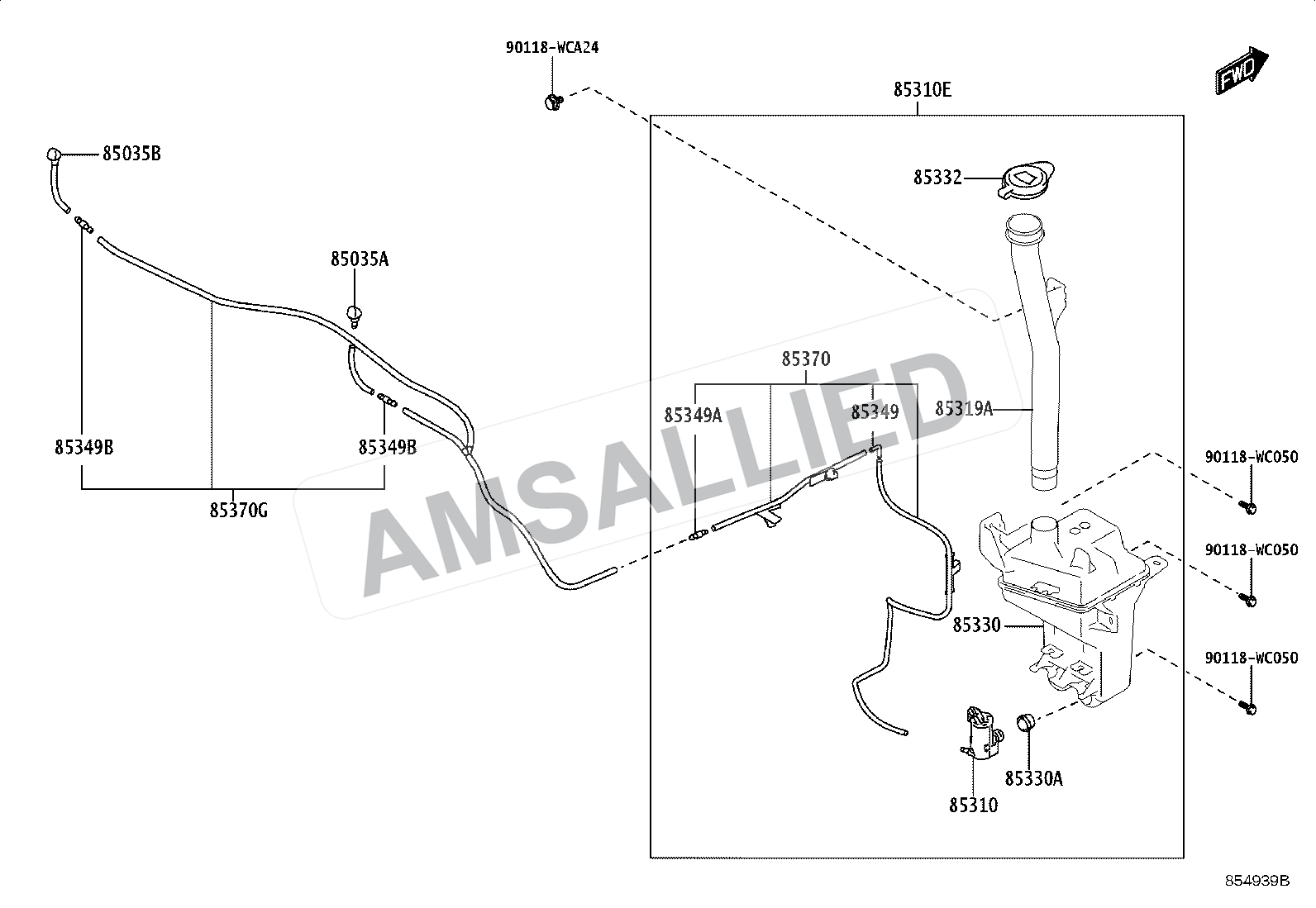

Toyota Hyryder Windshield Washer exploded parts diagram, figure 8503
AMS Allied watermarked Toyota Hyryder reference diagram.

Part numbers in this diagram

17 parts
85330-WC004

Motor And Pump Assy, Windshield Washer

PNC 85310

85355-WC004

Joint, Windshield Washer Hose, No.1

PNC 85349

85355-WC005

Joint, Windshield Washer Hose, No.2

PNC 85349A

90118-WCK87

Hose Assy, Windshield Washer, No.2

PNC 85370G

90118-WCM88

Joint, Windshield Washer Hose, No.3

PNC 85349B
