Figure 8502 · Rear Wiper

4 genuine catalog part numbers · Production from 2022-08

Open interactive figure

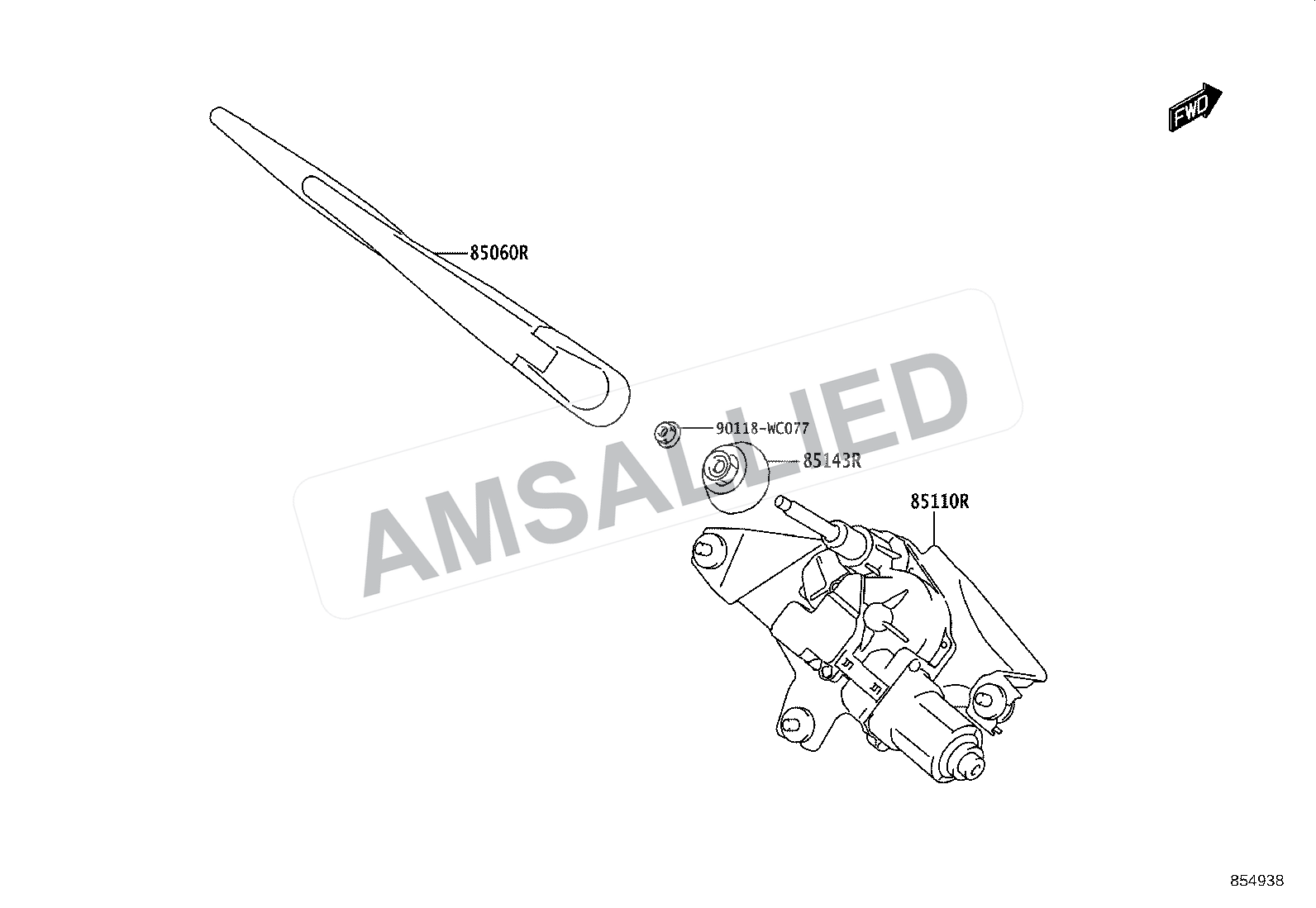

Toyota Hyryder Rear Wiper exploded parts diagram, figure 8502 — AMS Allied watermarked Toyota Hyryder reference diagram.

Part numbers in this diagram

4 parts

Motor Assy, Rear Wiper

PNC 85110R

Grommet, Rear Wiper Motor

PNC 85143R

Arm And Blade Assy, Rear Wiper

PNC 85060R

Diagram Hardware / Fastener

PNC 90118WC077
