Figure 8417 · Clearance & Back Sonar

8 genuine catalog part numbers · Production from 2022-08

Open interactive figure

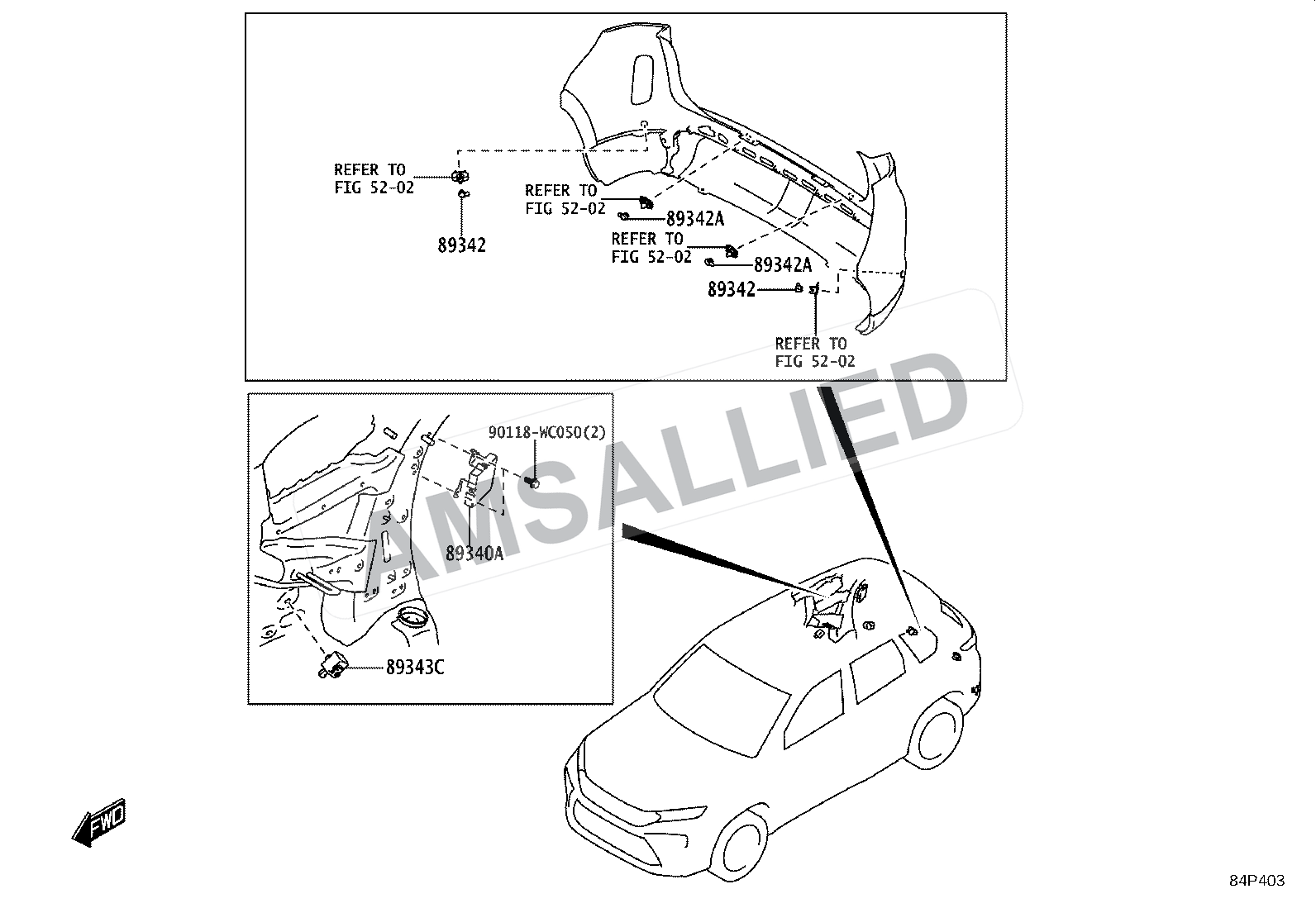

Toyota Hyryder Clearance & Back Sonar exploded parts diagram, figure 8417 — AMS Allied watermarked Toyota Hyryder reference diagram.

Part numbers in this diagram

8 parts

Computer Assy, Clearance Warning

PNC 89340A

Computer Assy, Clearance Warning

PNC 89340A

Sensor, Ultrasonic, Rear Corner

PNC 89342

Sensor, Ultrasonic, Rear Center

PNC 89342A

Sensor, Ultrasonic, Rear Corner

PNC 89342

Sensor, Ultrasonic, Rear Center

PNC 89342A

Buzzer, Clearance Warning, No.1

PNC 89343C

Diagram Hardware / Fastener

PNC 90118WC050
