Figure 8414 · Abs & Vsc

13 genuine catalog part numbers · Production from 2022-08

Open interactive figure

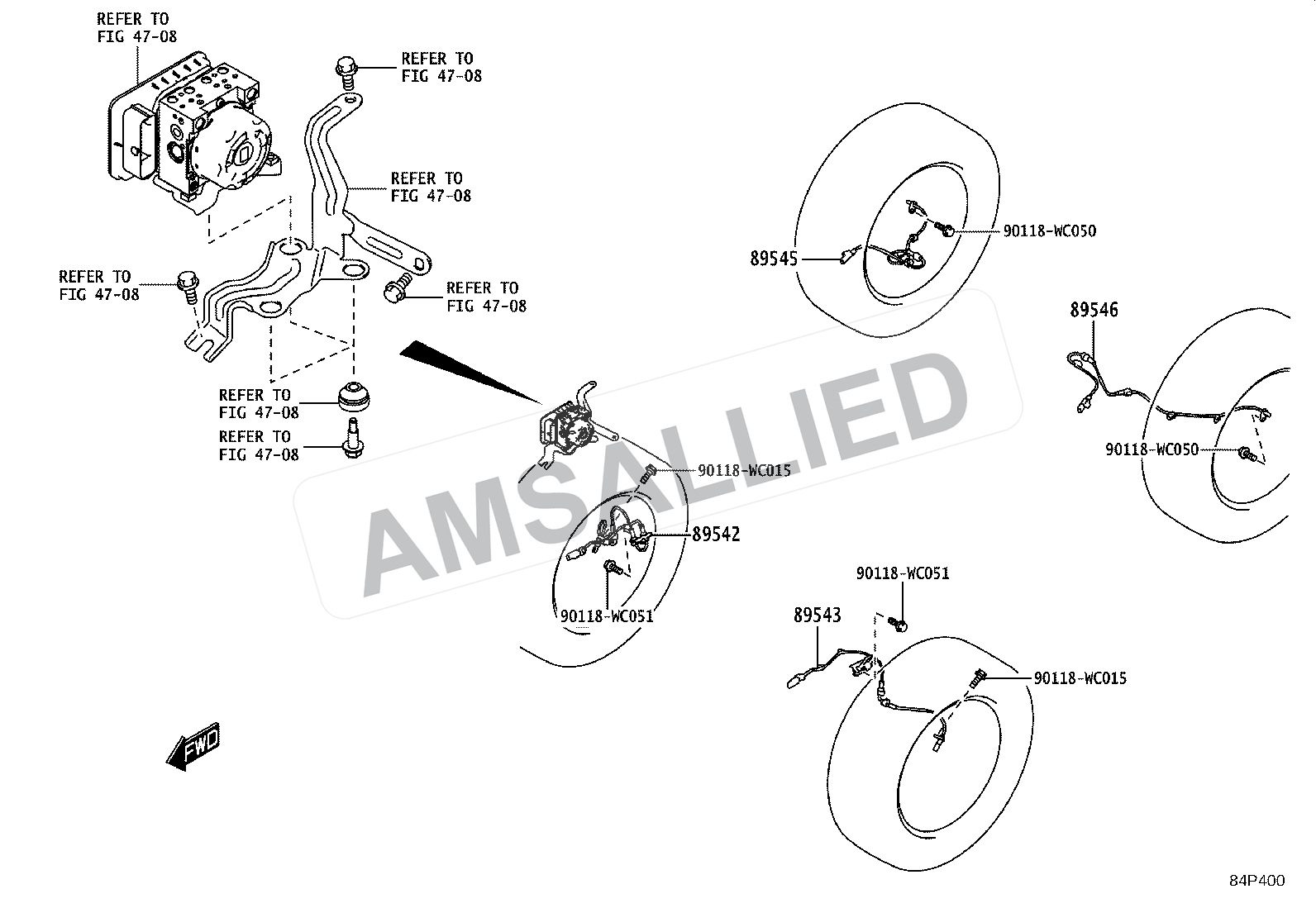

Toyota Hyryder Abs & Vsc exploded parts diagram, figure 8414 — AMS Allied watermarked Toyota Hyryder reference diagram.

Part numbers in this diagram

13 parts

Sensor Assy, Yawrate

PNC 89180

Sensor Assy, Brake Pedal Stroke

PNC 89510D

Sensor Assy, Brake Pedal Stroke

PNC 89510D

Sensor, Speed, Rear Lh

PNC 89546

Sensor, Speed, Rear Lh

PNC 89546

Sensor, Speed, Front Rh

PNC 89542

Sensor, Speed, Front Lh

PNC 89543

Sensor, Speed, Rear Rh

PNC 89545

Sensor, Speed, Rear Rh

PNC 89545

Computer Assy, 4wd

PNC 89630A

Diagram Hardware / Fastener

PNC 90118WC050

Diagram Hardware / Fastener

PNC 90118WC015

Diagram Hardware / Fastener

PNC 90118WC051
