Frame Sub-assy, Rear Seatback, Rh
PNC 71017
Body

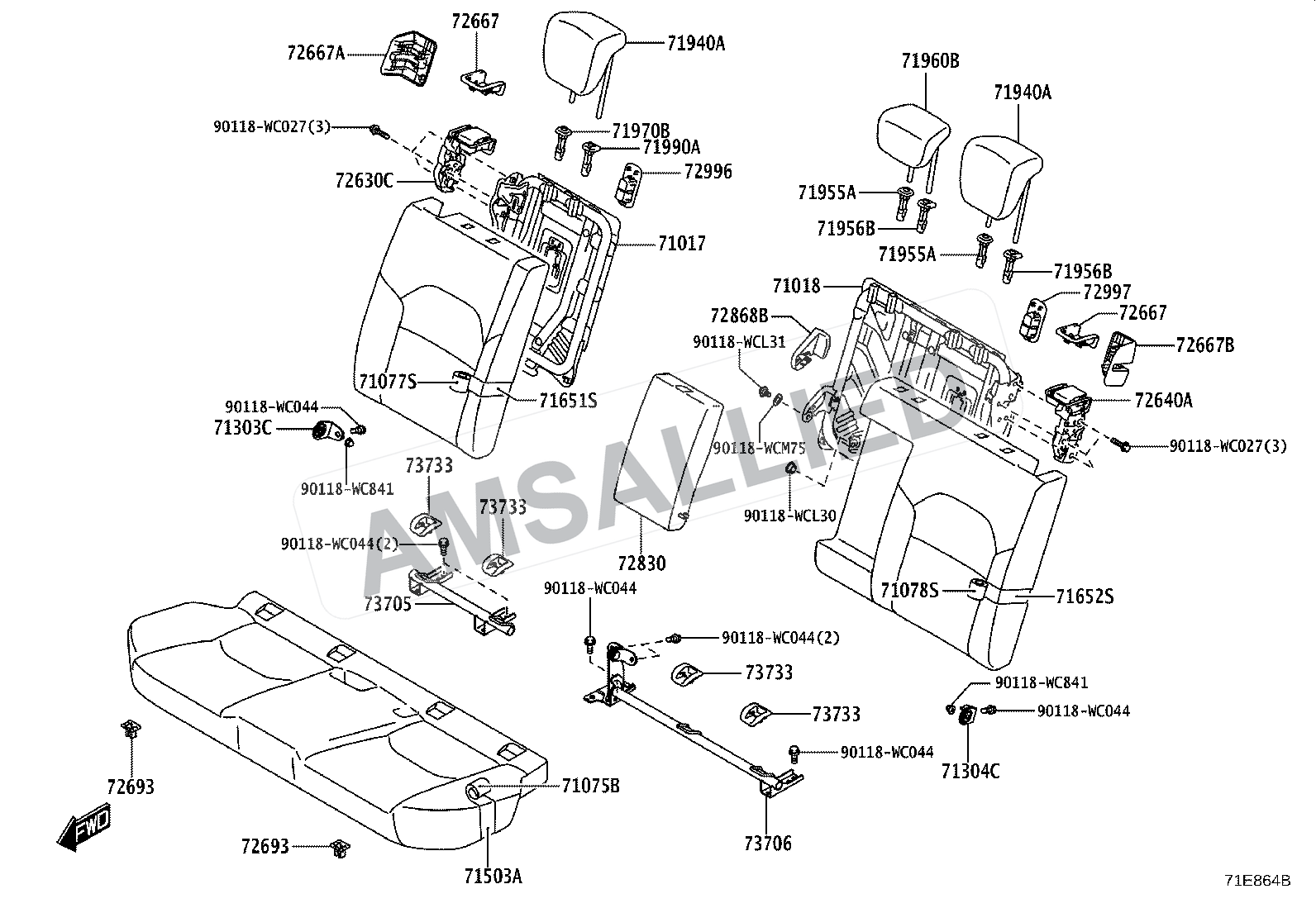

Figure 7102 · Rear Seat & Seat Track
51 genuine catalog part numbers · Production from 2022-08
Part numbers in this diagram
51 partsFrame Sub-assy, Rear Seatback, Lh
PNC 71018
Cover, Rear Seat Cushion (for Bench Type)
PNC 71075B
Cover, Rear Seat Cushion (for Bench Type)
PNC 71075B
Cover, Rear Seat Cushion (for Bench Type)
PNC 71075B
Cover, Rear Seat Cushion (for Bench Type)
PNC 71075B
Cover, Rear Seatback, Rh (for Separate Type)
PNC 71077S
Cover, Rear Seatback, Rh (for Separate Type)
PNC 71077S
Cover, Rear Seatback, Rh (for Separate Type)
PNC 71077S
Cover, Rear Seatback, Rh (for Separate Type)
PNC 71077S
Cover, Rear Seatback, Lh(for Separate Type)
PNC 71078S
Cover, Rear Seatback, Lh(for Separate Type)
PNC 71078S
Cover, Rear Seatback, Lh(for Separate Type)
PNC 71078S
Cover, Rear Seatback, Lh(for Separate Type)
PNC 71078S
Hinge Sub-assy, Rear Seatback, Rh
PNC 71303C
Hinge Sub-assy, Rear Seatback, Lh
PNC 71304C
Bracket Sub-assy, Child Restraint Seat Anchor, Lh
PNC 73706
Bracket Sub-assy, Child Restraint Seat Anchor, Lh
PNC 73706
Pad Sub-assy, Rear Seat Cushion
PNC 71503A
Pad, Rear Seatback, Rh(for Separate Type)
PNC 71651S
Pad, Rear Seatback, Lh(for Separate Type)
PNC 71652S
Headrest Assy, Rear Seat
PNC 71940A
Headrest Assy, Rear Seat
PNC 71940A
Headrest Assy, Rear Seat, Center
PNC 71960B
Headrest Assy, Rear Seat, Center
PNC 71960B
Headrest Assy, Rear Seat
PNC 71940A
Headrest Assy, Rear Seat
PNC 71940A
Headrest Assy, Rear Seat, Center
PNC 71960B
Headrest Assy, Rear Seat, Center
PNC 71960B
Support, Rear Seat Headrest
PNC 71956B, 71990A
Support, Rear Seat Headrest
PNC 71955A, 71970B
Lock Assy, Rear Seatback, Rh
PNC 72630C
Lock Assy, Rear Seatback, Lh
PNC 72640A
Bezel, Rear Seatback Lock, Upper
PNC 72667
Bezel, Rear Seatback Lock, Upper Rh
PNC 72667A
Bezel, Rear Seatback Lock, Upper Lh
PNC 72667B
Hook, Rear Seat Cushion Lock
PNC 72693
Armrest Assy, Rear Seat, Center
PNC 72830
Armrest Assy, Rear Seat, Center
PNC 72830
Armrest Assy, Rear Seat, Center
PNC 72830
Cover, Center Armrest Hinge
PNC 72868B
Cover, Rear Seatback, Rh
PNC 72996, 72997
Bracket Sub-assy, Child Restraint Seat Anchor, Rh
PNC 73705
Bracket Sub-assy, Child Restraint Seat Anchor, Rh
PNC 73705
Cover, Child Restraint Seat Base
PNC 73733
Diagram Hardware / Fastener
PNC 90118WC027
Diagram Hardware / Fastener
PNC 90118WC044
Diagram Hardware / Fastener
PNC 90118WC841
Diagram Hardware / Fastener
PNC 90118WCL30
Diagram Hardware / Fastener
PNC 90118WCM75
Diagram Hardware / Fastener
PNC 90118WCL31
