Panel Sub-assy, Front Door, Rh
PNC 67001
Body

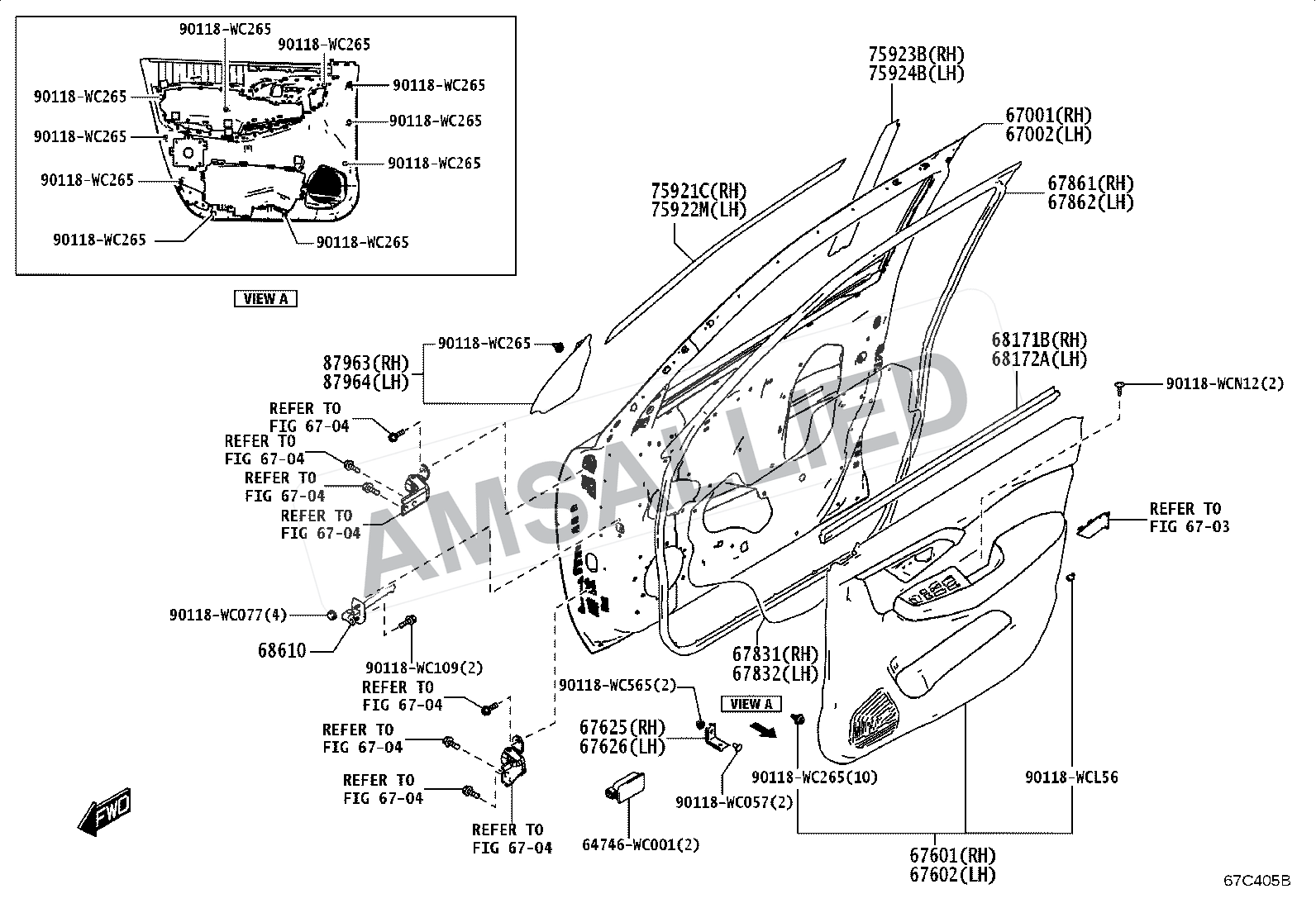

Figure 6701 · Front Door Panel & Glass
54 genuine catalog part numbers · Production from 2022-08
Part numbers in this diagram
54 partsPanel Sub-assy, Front Door, Lh
PNC 67002
Frame Sub-assy, Front Door, Rear Lower Rh
PNC 67403F
Frame Sub-assy, Front Door, Rear Lower Lh
PNC 67404F
Board Sub-assy, Front Door Trim, Rh
PNC 67601
Board Sub-assy, Front Door Trim, Rh
PNC 67601
Board Sub-assy, Front Door Trim, Rh
PNC 67601
Board Sub-assy, Front Door Trim, Rh
PNC 67601
Board Sub-assy, Front Door Trim, Lh
PNC 67602
Board Sub-assy, Front Door Trim, Lh
PNC 67602
Board Sub-assy, Front Door Trim, Lh
PNC 67602
Board Sub-assy, Front Door Trim, Lh
PNC 67602
Cover, Front Door Service Hole, Rh
PNC 67831, 67832
Weatherstrip, Front Door, Rh
PNC 67861
Weatherstrip, Front Door, Lh
PNC 67862
Glass Sub-assy, Front Door, Rh
PNC 68101
Glass Sub-assy, Front Door, Rh
PNC 68101
Glass Sub-assy, Front Door, Lh
PNC 68102
Glass Sub-assy, Front Door, Lh
PNC 68102
Run, Front Door Glass, Rh
PNC 68141C
Run, Front Door Glass, Lh
PNC 68151C
Weatherstrip Assy, Front Door Glass, Outer Rh
PNC 68160C
Weatherstrip Assy, Front Door Glass, Outer Rh
PNC 68160C
Weatherstrip, Front Door Glass, Inner Rh
PNC 68171B
Weatherstrip Assy, Front Door Glass, Outer Lh
PNC 68210C
Weatherstrip Assy, Front Door Glass, Outer Lh
PNC 68210C
Weatherstrip, Front Door Glass, Inner Lh
PNC 68172A
Check Assy, Front Door
PNC 68610
Tape, Black Out, No.2 Rh
PNC 75923B
Tape, Black Out, No.2 Lh
PNC 75924B
Tape, Black Out, No.1 Lh
PNC 75922M
Cover, Outer Mirror Install Hole, Rh
PNC 87963
Cover, Outer Mirror Install Hole, Rh
PNC 87963
Cover, Outer Mirror Install Hole, Lh
PNC 87964
Cover, Outer Mirror Install Hole, Lh
PNC 87964
Cushion, Front Door Panel
PNC 67001A
Bracket, Front Door Trim, Rh
PNC 67625, 67626
Tape, Black Out, No.1 Rh
PNC 75921C
Diagram Hardware / Fastener
PNC 90118WCN12
Diagram Hardware / Fastener
PNC 90118WC265
Diagram Hardware / Fastener
PNC 64746WC001
Diagram Hardware / Fastener
PNC 90118WC565
Diagram Hardware / Fastener
PNC 90118WC077
Diagram Hardware / Fastener
PNC 90118WC109
Diagram Hardware / Fastener
PNC 90118WC057
Diagram Hardware / Fastener
PNC 90118WCL56
Diagram Hardware / Fastener
PNC 9011906983
Diagram Hardware / Fastener
PNC 9015150026
Diagram Hardware / Fastener
PNC 6786947010
Diagram Hardware / Fastener
PNC 9095001A02
Diagram Hardware / Fastener
PNC 9095001956
Diagram Hardware / Fastener
PNC 9167380616
Diagram Hardware / Fastener
PNC 9010908295
Diagram Hardware / Fastener
PNC 9095001A05
