Figure 6402 · Roof Headlining & Silencer Pad

11 genuine catalog part numbers · Production from 2022-08

Open interactive figure

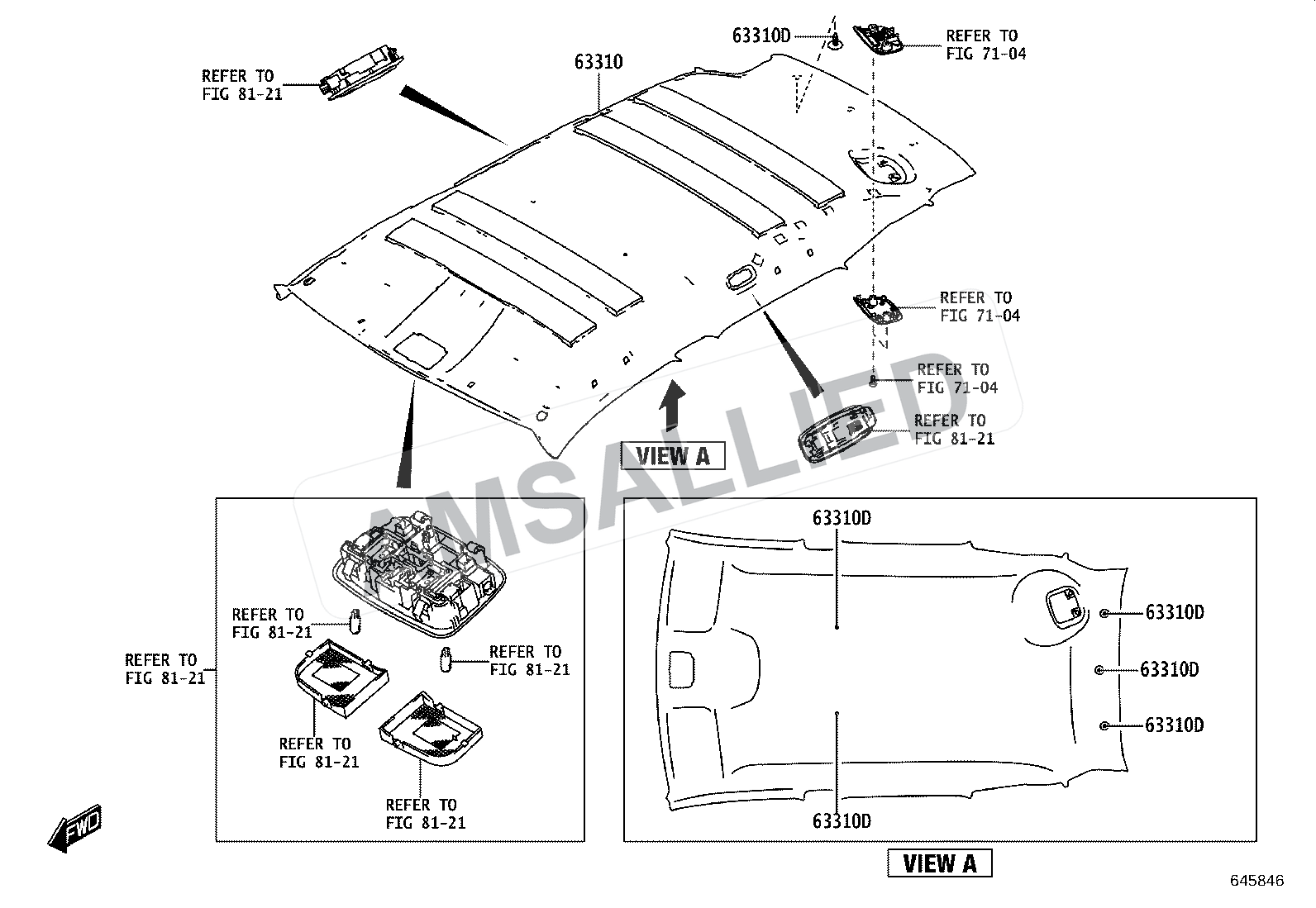

Toyota Hyryder Roof Headlining & Silencer Pad exploded parts diagram, figure 6402 — AMS Allied watermarked Toyota Hyryder reference diagram.

Part numbers in this diagram

11 parts

Trim Sub-assy, Sunshade

PNC 63306

Headlining Assy, Roof

PNC 63310

Headlining Assy, Roof

PNC 63310

Headlining Assy, Roof

PNC 63310

Headlining Assy, Roof

PNC 63310

Headlining Assy, Roof

PNC 63310

Spacer, Side Rail, Front Rh

PNC 66413B

Spacer, Side Rail, Rear Rh

PNC 66414A

Spacer, Side Rail, Front Lh

PNC 66423

Spacer, Side Rail, Rear Lh

PNC 66424

Clip, Roof Headlining

PNC 63310D
