Body

Figure 5801 · Floor Pan & Lower Back Panel

50 genuine catalog part numbers · Production from 2022-08

Open interactive figure

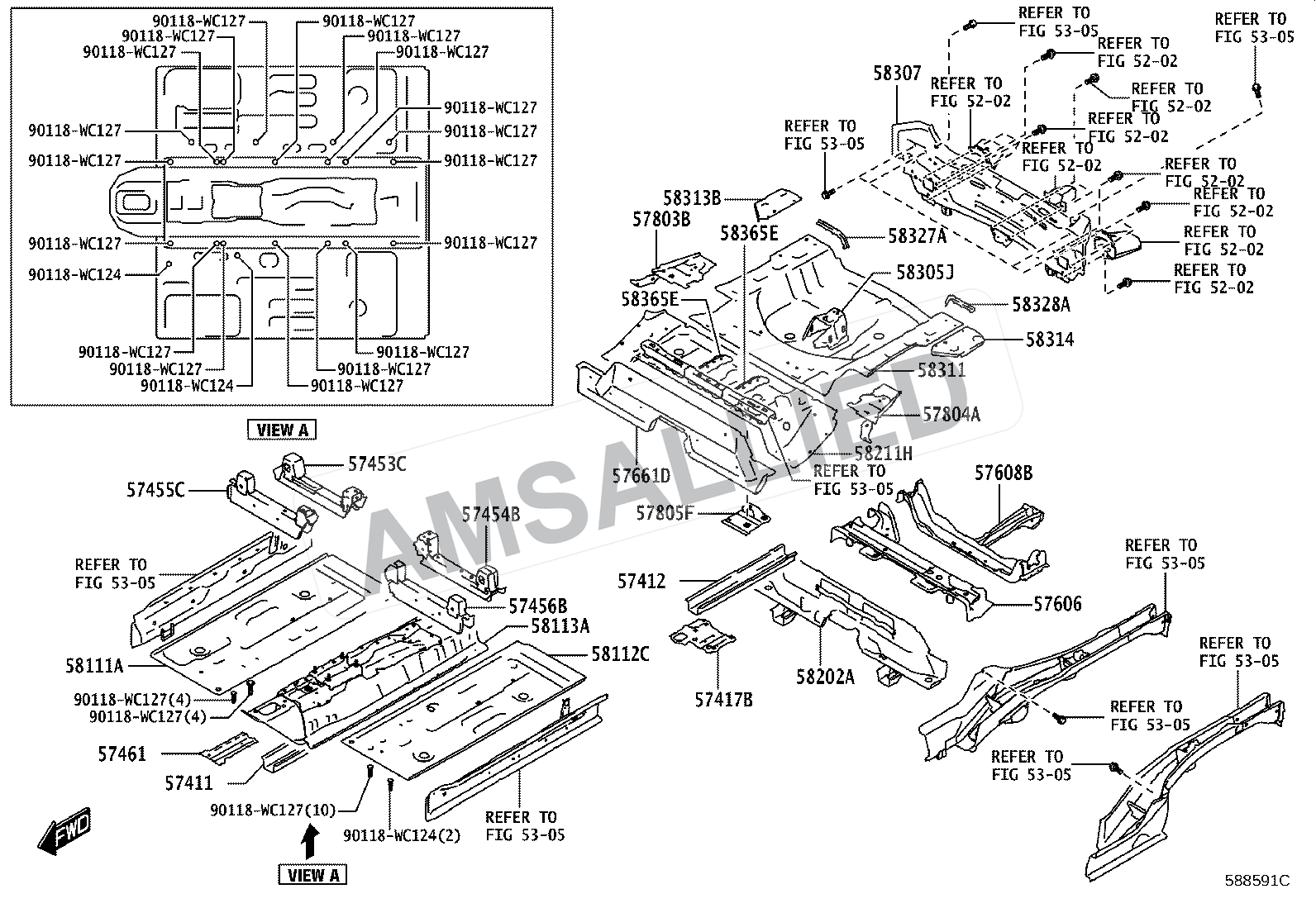

Toyota Hyryder Floor Pan & Lower Back Panel exploded parts diagram, figure 5801 — AMS Allied watermarked Toyota Hyryder reference diagram.

Part numbers in this diagram

50 parts

51908-WC001

Bracket, Spare Wheel Carrier

PNC 58305J

57417-WC001

Reinforcement, Front Floor Under

PNC 57417B

57419-WC005

Plate, Floor Side Rail, Rh

PNC 57411, 57412

57419-WC009

Plate, Floor Side Rail, Rh

PNC 57411, 57412

57453-WC004

Member, Front Floor Cross Side, Rh

PNC 57453C

57454-WC003

Member, Front Floor Cross Side, Lh

PNC 57454B

57455-WC003

Bracket, Front Seat Mounting, Outside Rh

PNC 57455C

57456-WC003

Bracket, Front Seat Mounting, Outside Lh

PNC 57456B

57606-WC013

Crossmember Sub-assy, Rear Floor Rear, Inner

PNC 57606

57606-WC014

Crossmember Sub-assy, Rear Floor Rear, Inner

PNC 57606

57606-WC015

Crossmember Sub-assy, Rear Floor Rear, Inner

PNC 57606

57608-WC004

Member Sub-assy, Rear Floor Cross, No.4

PNC 57608B

57608-WC005

Member Sub-assy, Rear Floor Cross, No.4

PNC 57608B

57608-WC006

Member Sub-assy, Rear Floor Cross, No.4

PNC 57608B

57661-WC010

Member, Rear Floor Cross, Front

PNC 57661D

57803-WC003

Reinforce Sub-assy, Belt Anchor, No.2 Rh

PNC 57803B

57804-WC002

Reinforce Sub-assy, Belt Anchor, No.2 Lh

PNC 57804A

57804-WC003

Reinforce Sub-assy, Belt Anchor, No.2 Lh

PNC 57804A

57805-WC002

Reinforcement Sub-assy, Belt Anchor, No.1

PNC 57805F

58102-WC001

Bracket, Floor Panel

PNC 57461

58111-WC013

Pan, Front Floor, Rh

PNC 58111A

58112-WC024

Pan, Front Floor, Lh

PNC 58112C

58112-WC025

Pan, Front Floor, Lh

PNC 58112C

58113-WC015

Panel, Front Floor, Center

PNC 58113A

58113-WC016

Panel, Front Floor, Center

PNC 58113A

58202-WC003

Pan Sub-assy, Center Floor, Front

PNC 58202A

58211-WC006

Pan, Center Floor

PNC 58211H

58211-WC007

Pan, Center Floor

PNC 58211H

58249-WC002

Panel, Rear Floor Side, Rh

PNC 58313

58249-WC003

Panel, Rear Floor Side, Rh

PNC 58313

58307-WC009

Panel Sub-assy, Body Lower Back

PNC 58307

58307-WC010

Panel Sub-assy, Body Lower Back

PNC 58307

58311-WC008

Pan, Rear Floor

PNC 58311

58311-WC009

Pan, Rear Floor

PNC 58311

58313-WC003

Panel, Rear Floor Side, Rh

PNC 58313B

58313-WC004

Panel, Rear Floor Side, Rh

PNC 58313B

58314-WC005

Panel, Rear Floor Side, Lh

PNC 58314

58314-WC006

Panel, Rear Floor Side, Lh

PNC 58314

58314-WC007

Panel, Rear Floor Side, Lh

PNC 58314

58365-WC003

Reinforcement, Rear Floor Panel, Center

PNC 58365E

58651-WC001

Sheet, Front Floor

PNC 58159B

61773-WC001

Patch, Rear Floor Side, Rh

PNC 58327A

61774-WC001

Patch, Rear Floor Side, Lh

PNC 58328A

64105-WC001

Member Sub-assy, Rear Floor Cross, No.3

PNC 57607C

74704-WC001

Support, Extinguisher

PNC 58195

79919-WC002

Reinforcement, Rear Floor Side

PNC 58314A

79919-WC003

Reinforcement, Rear Floor Side

PNC 58314A

G92M7-WC001

Reinforcement, Center Floor Panel

PNC 58213D

90118-WC124

Diagram Hardware / Fastener

PNC 90118WC124

90118-WC127

Diagram Hardware / Fastener

PNC 90118WC127
