Bracket Sub-assy, Front Side Member, Lh
PNC 57014B
Body

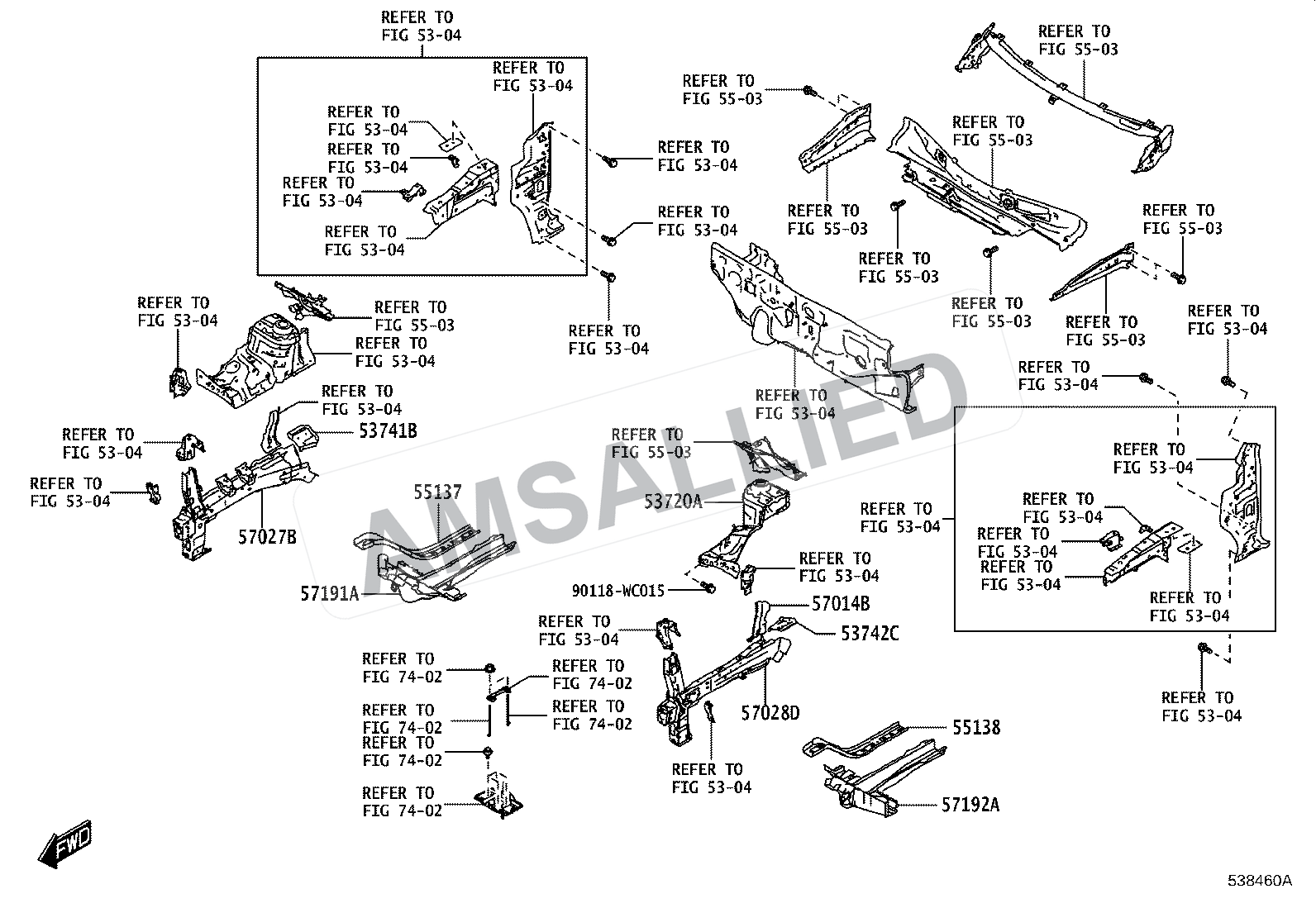

Figure 5305 · Floor Side Member
26 genuine catalog part numbers · Production from 2022-08
Part numbers in this diagram
26 partsApron Assy, Front Fender, Lh
PNC 53720A
Apron Assy, Front Fender, Lh
PNC 53720A
Plate, Fender Apron Reinforce, Rh
PNC 53741B
Plate, Fender Apron Reinforce, Lh
PNC 53742C
Brace, Dash To Frame, Rh
PNC 55137
Brace, Dash To Frame, Lh
PNC 55138
Member Sub-assy, Front Side, Inner Rh
PNC 57027B
Member Sub-assy, Front Side, Lh
PNC 57028D
Member Sub-assy, Front Side, Lh
PNC 57028D
Member, Front Side, Inner Rear Rh
PNC 57191A
Member, Front Side, Inner Rear Lh
PNC 57192A
Member Sub-assy, Rear Floor Side, Rh
PNC 57601
Member Sub-assy, Rear Floor Side, Rh
PNC 57601
Member Sub-assy, Rear Floor Side, Rh
PNC 57601
Member Sub-assy, Rear Floor Side, Rh
PNC 57601
Member Sub-assy, Rear Floor Side, Lh
PNC 57602
Member Sub-assy, Rear Floor Side, Lh
PNC 57602
Member Sub-assy, Rear Floor Side, Lh
PNC 57602
Member Sub-assy, Rear Floor Side, Lh
PNC 57602
Member, Rear Floor Cross, Front
PNC 57661B
Reinforcement, Front Floor Side, Rh
PNC 58117B
Reinforcement, Front Floor Side, Rh
PNC 58117B
Reinforcement, Front Floor Side, Lh
PNC 58118D
Reinforcement, Rear Floor Crossmember, No.2
PNC 57665B
Diagram Hardware / Fastener
PNC 90118WC015
