Seal, Rear Bumper Side, Lh
PNC 52592
Body

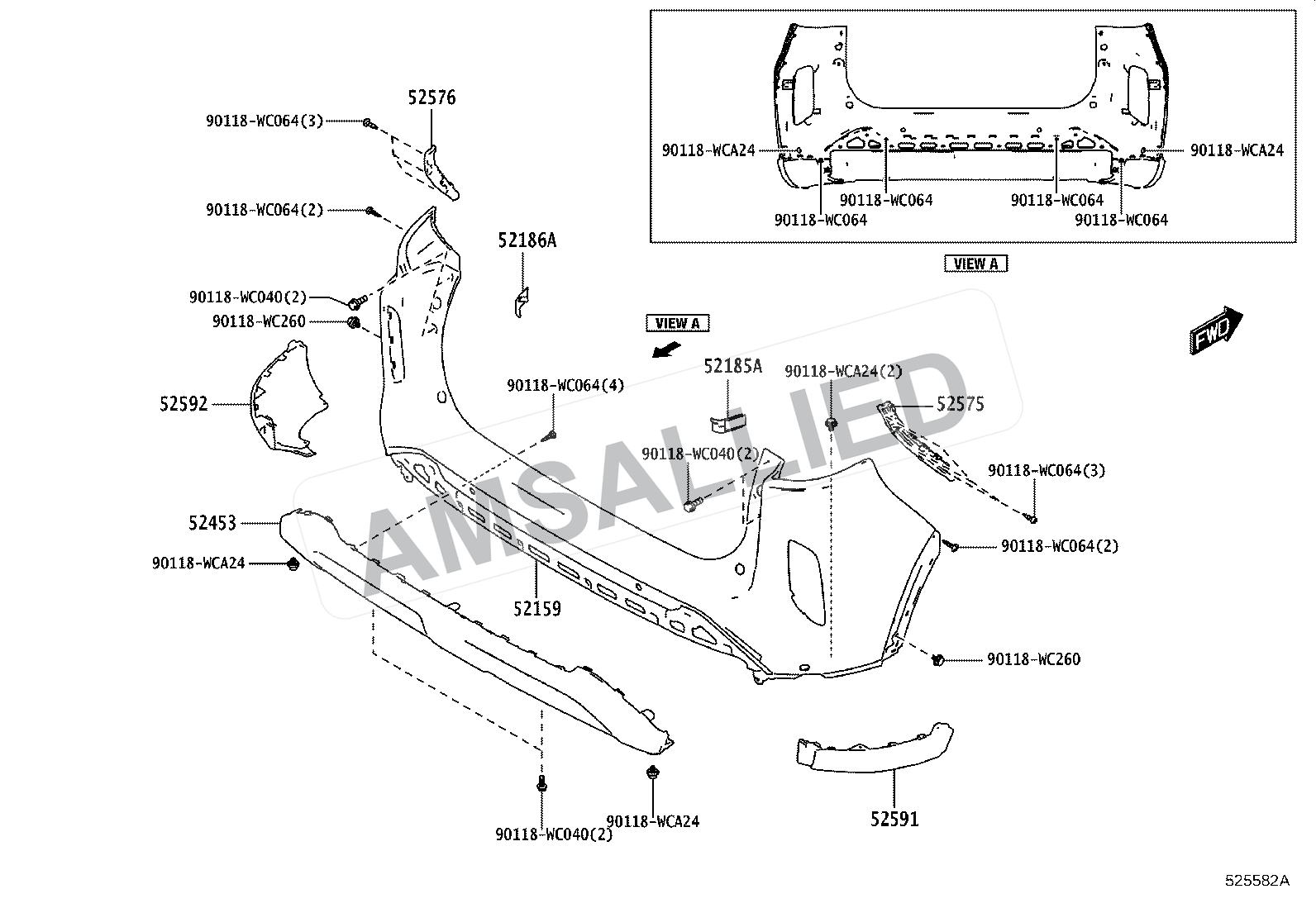

Figure 5202 · Rear Bumper & Bumper Stay
21 genuine catalog part numbers · Production from 2022-08
Part numbers in this diagram
21 partsCover, Rear Bumper
PNC 52159
Guard, Rear Bumper, Center
PNC 52453
Retainer, Rear Bumper Side, Rh
PNC 52575
Retainer, Rear Bumper Side, Lh
PNC 52576
Seal, Rear Bumper Side, Rh
PNC 52591
Absorber, Rear Bumper Energy
PNC 52615
Absorber, Rear Bumper Energy, No.2
PNC 52614A
Absorber, Rear Bumper Energy, Lh
PNC 52616
Bracket, Rear Bumper Side, Rh
PNC 52185A
Retainer, Ultrasonic Sensor, Rear Center
PNC 89C48B
Retainer, Ultrasonic Sensor, Rear Corner
PNC 89C48A
Bracket, Rear Bumper Side, Lh
PNC 52186A
Diagram Hardware / Fastener
PNC 90118WC064
Diagram Hardware / Fastener
PNC 90118WCA24
Diagram Hardware / Fastener
PNC 90118WC260
Diagram Hardware / Fastener
PNC 90118WC040
Diagram Hardware / Fastener
PNC 9011908C64
Diagram Hardware / Fastener
PNC 9017906127
Diagram Hardware / Fastener
PNC 9016750063
Diagram Hardware / Fastener
PNC 9015960621
