Powertrain / Chassis

Figure 4804 · Rear Spring & Shock Absorber

15 genuine catalog part numbers · Production from 2022-08

Open interactive figure

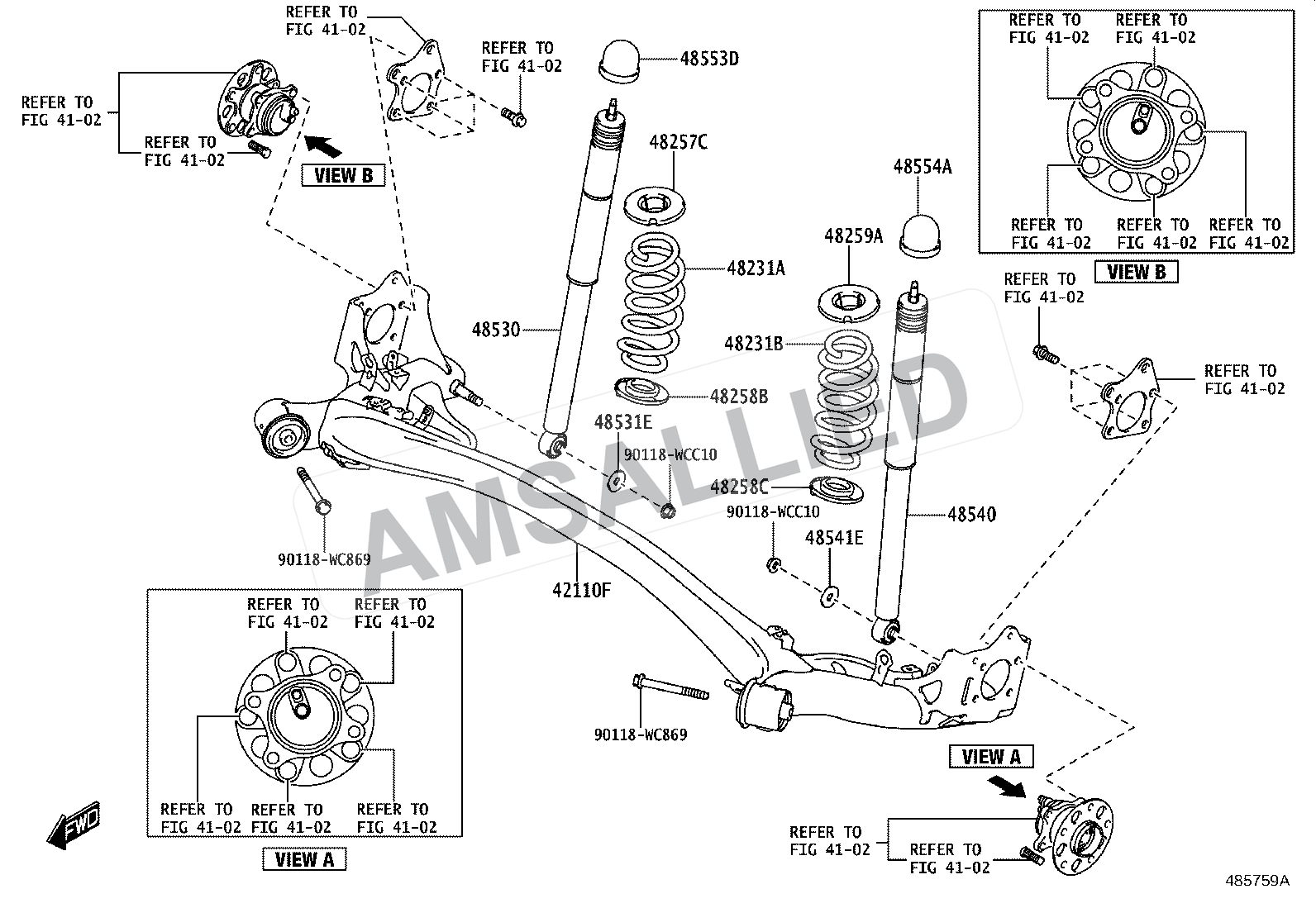

Toyota Hyryder Rear Spring & Shock Absorber exploded parts diagram, figure 4804
AMS Allied watermarked Toyota Hyryder reference diagram.

Part numbers in this diagram

15 parts
48257-WC003

Insulator, Rear Coil Spring, Upper Rh

PNC 48257C, 48259A

48258-WC002

Insulator, Rear Coil Spring, Lower Rh

PNC 48258B, 48258C

48530-WC008

Absorber Assy, Shock, Rear Rh

PNC 48530, 48540

48530-WC009

Absorber Assy, Shock, Rear Rh

PNC 48530, 48540

48530-WC010

Absorber Assy, Shock, Rear Rh

PNC 48530, 48540

48530-WC011

Absorber Assy, Shock, Rear Rh

PNC 48530, 48540

48553-WC002

Cap, Rear Shock Absorber, Rh

PNC 48553D, 48554A

90118-WC881

Retainer, Cushion, No.1(for Rear Shock Absorber Rh)

PNC 48531E, 48541E
