Pad Kit, Disc Brake, Rear
PNC 04466
Powertrain / Chassis

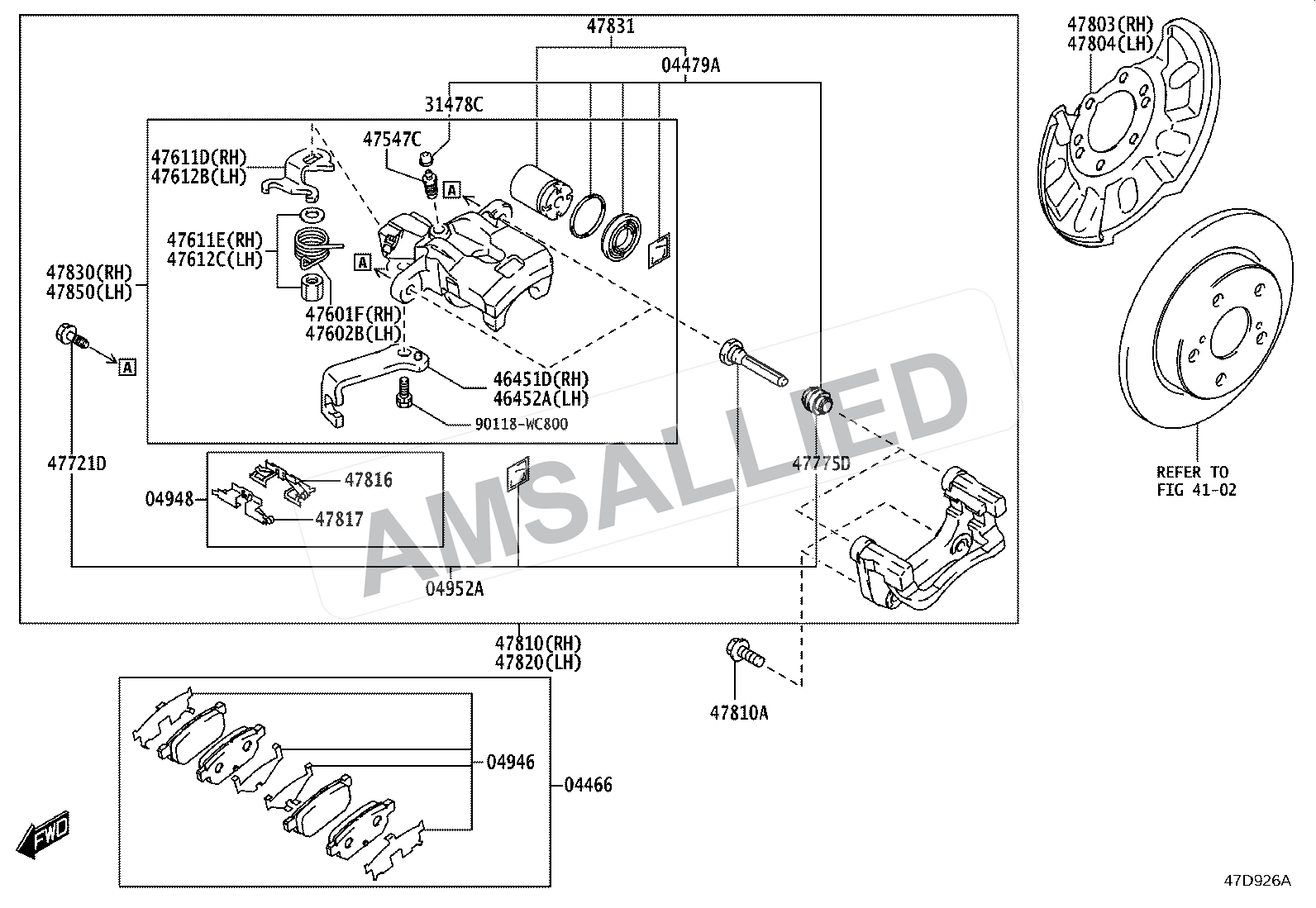

Figure 4707 · Rear Disc Brake Caliper & Dust Cover
26 genuine catalog part numbers · Production from 2022-08
Part numbers in this diagram
26 partsPiston, Rear Disc Brake
PNC 47831
Cylinder Kit, Disc Brake, Rear
PNC 04479A
Shim Kit, Anti Squeal(for Rear Disc Brake)
PNC 04946
Fitting Kit, Disc Brake, Rear
PNC 04948
Pin Kit, Rear Disc Brake Cylinder Slide
PNC 04952A
Cap, Bleeder Plug(for Rear Disc Brake)
PNC 31478C
Spring, Torsion(for Parking Brake Crank Rh)
PNC 47601F
Spring, Torsion(for Parking Brake Crank Lh)
PNC 47602B
Bracket, Parking Brake Cable Support, Rh
PNC 46451D
Bracket, Parking Brake Cable Support, Lh
PNC 46452A
Plug, Bleeder(for Rear Disc Brake)
PNC 47547C
Lever, Parking Brake Disc, Rh
PNC 47611D
Lever, Parking Brake Disc, Lh
PNC 47612B
Boot, Bush Dust(for Rear Disc Brake)
PNC 47775D
Cover Sub-assy, Disc Brake Dust, Rear Rh
PNC 47803, 47804
Caliper Assy, Disc Brake, Rear Rh
PNC 47810
Plate, Pad Support, No.1(for Rear Disc Brake)
PNC 47816
Plate, Pad Support. No.2(for Rear Disc Brake)
PNC 47817
Caliper Assy, Disc Brake, Rear Lh
PNC 47820
Cylinder Assy, Disc Brake, Rear Rh
PNC 47830
Cylinder Assy, Disc Brake, Rear Lh
PNC 47850
Bolt(for Rear Disc Brake Cylinder Mouting)
PNC 47721D
Nut, Flange(for Parking Brake Lever Rh)
PNC 47611E, 47612C
Bolt, Hexagon(for Rear Caliper)
PNC 47810A
Diagram Hardware / Fastener
PNC 90118WC800
