Booster Assy, Brake
PNC 44610
Powertrain / Chassis

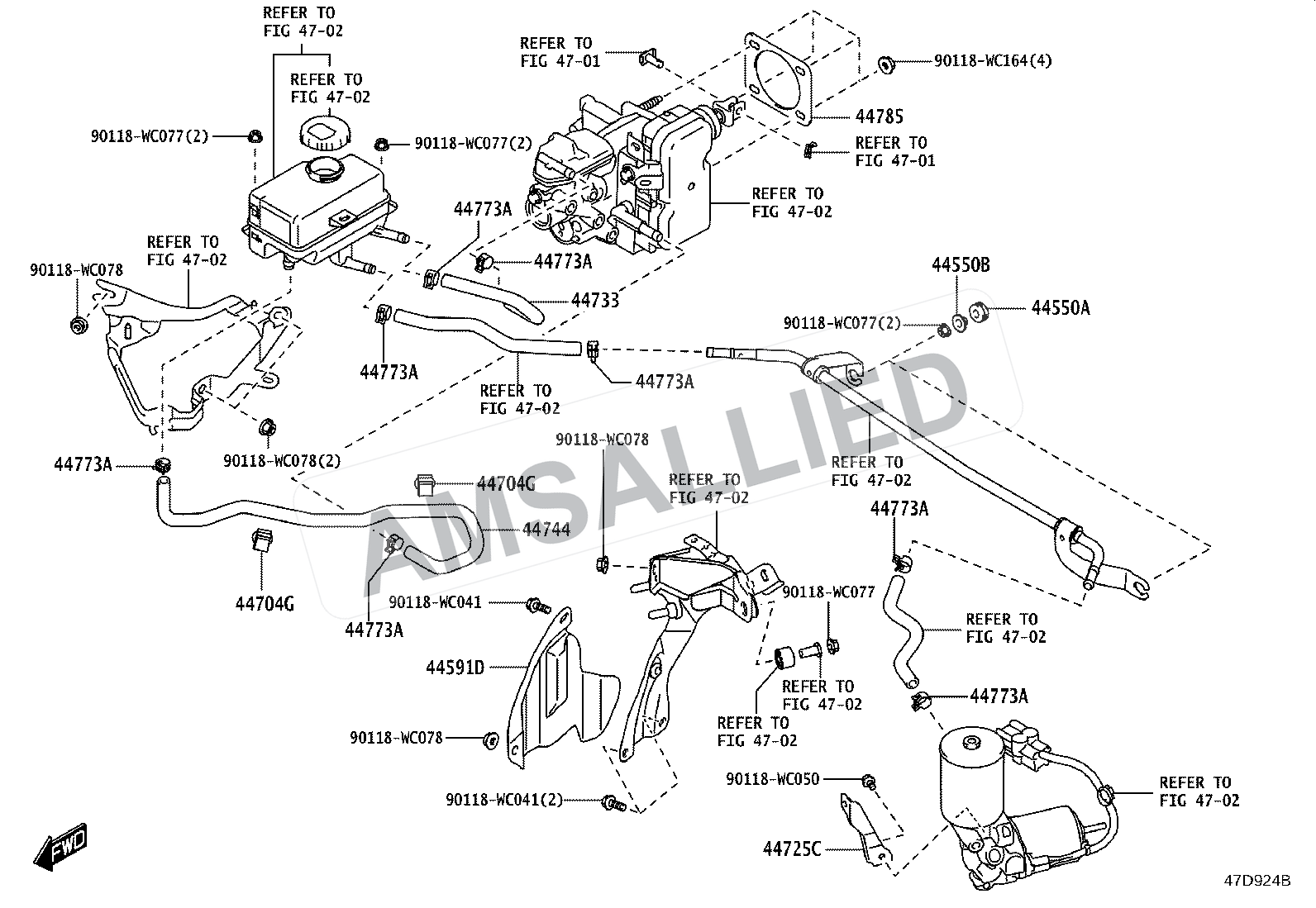

Figure 4703 · Brake Booster & Vacuum Tube
22 genuine catalog part numbers · Production from 2022-08
Part numbers in this diagram
22 partsBooster Assy, Brake
PNC 44610
Tube, Booster Vacuum
PNC 44763
Hose, Vacuum, No.2
PNC 44773
Hose, Union To Connector Tube
PNC 44774
Gasket, Brake Booster
PNC 44785
Protector, Vacuum Tank
PNC 44744
Bracket, Brake Booster, Front
PNC 44733
Bracket, Tube Clamp
PNC 44725C
Clip, No.1(for Vacuum Hose, No.2)
PNC 44773A
Clip, No.1(for Vacuum Hose, No.2)
PNC 44773A
Clamp(for Brake Reservoier Hose)
PNC 44704G
Damper, Brake Actuator Tube
PNC 44550A
Spacer, Brake Actuator Tube
PNC 44550B
Cover, Brake Actuator Bracket, No.1
PNC 44591D
Diagram Hardware / Fastener
PNC 90118WC164
Diagram Hardware / Fastener
PNC 90118WC041
Diagram Hardware / Fastener
PNC 90118WC077
Diagram Hardware / Fastener
PNC 90118WC050
Diagram Hardware / Fastener
PNC 90118WC078
Diagram Hardware / Fastener
PNC 90118WC074
Diagram Hardware / Fastener
PNC 90118WCE37
