Figure 4701 · Brake Pedal & Bracket

13 genuine catalog part numbers · Production from 2022-08

Open interactive figure

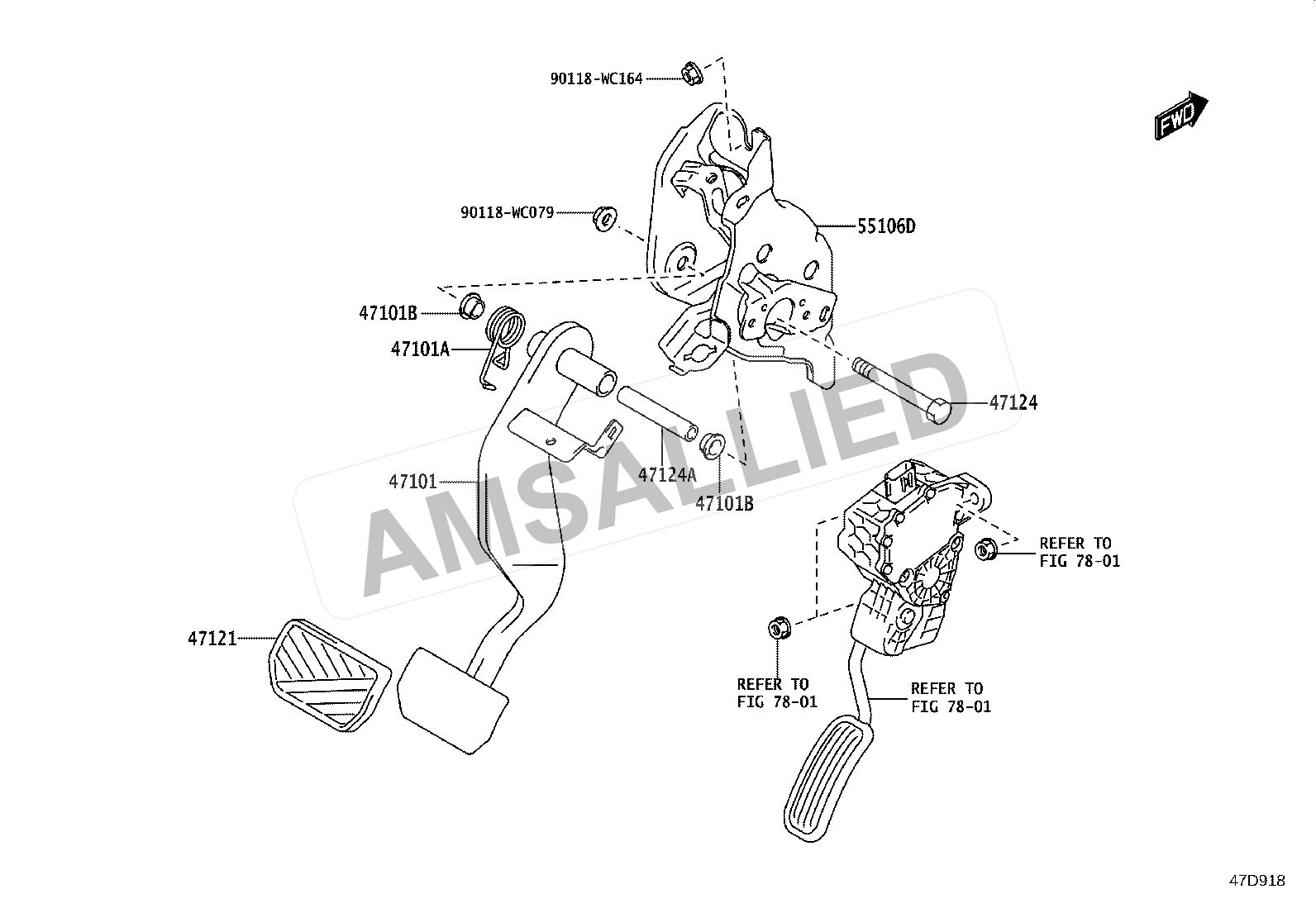

Toyota Hyryder Brake Pedal & Bracket exploded parts diagram, figure 4701 — AMS Allied watermarked Toyota Hyryder reference diagram.

Part numbers in this diagram

13 parts

Pedal Sub-assy, Brake

PNC 47101

Pedal Sub-assy, Brake

PNC 47101

Pedal Sub-assy, Brake

PNC 47101

Pad, Brake Pedal

PNC 47121

Pad, Brake Pedal

PNC 47121

Bracket Sub-assy, Pedal

PNC 55106D

Bush(for Brake Pedal)

PNC 47101B

Pin(for Push Rod)

PNC 47264A

Shaft, Brake Pedal

PNC 47124

Collar(for Brake Pedal Shaft)

PNC 47124A

Spring(for Brake Pedal Return)

PNC 47101A

Diagram Hardware / Fastener

PNC 90118WC164

Diagram Hardware / Fastener

PNC 90118WC079
