Shaft Assy, Rear Drive Outboard Joint, Rh
PNC 42370A, 42380
Powertrain / Chassis

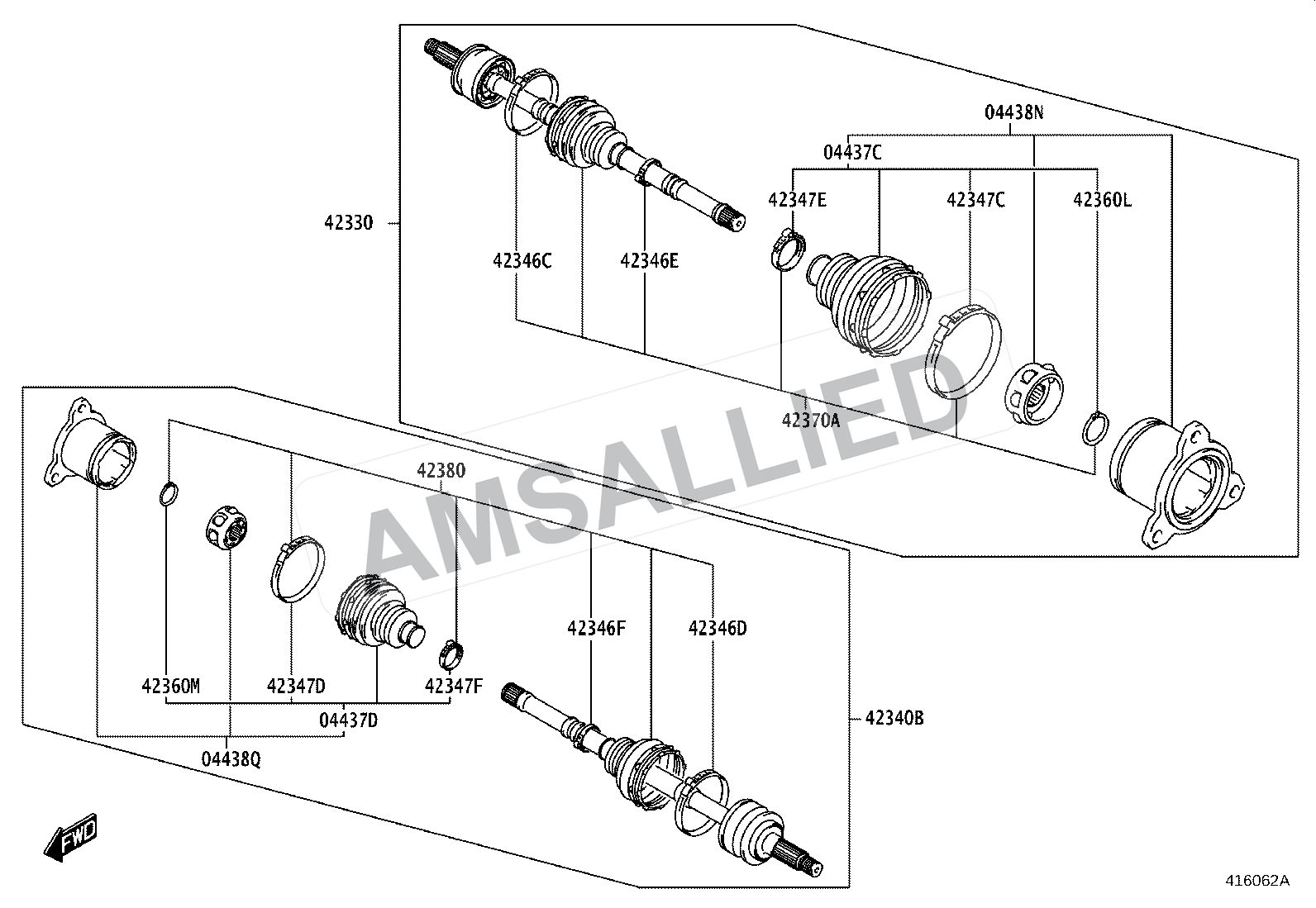

Figure 4102 · Rear Axle Shaft & Hub
19 genuine catalog part numbers · Production from 2022-08
Part numbers in this diagram
19 partsBoot Kit, Rear Drive Shaft Inboard Joint, Rh
PNC 04437C, 04437D
Plate, Rear Axle Hub
PNC 42414
Plate, Rear Axle Hub
PNC 42414
Plate, Rear Axle Hub
PNC 42414
Shaft Assy, Rear Drive, Rh
PNC 42330
Shaft Assy, Rear Drive, Lh
PNC 42340B
Clamp, No.2 (for Rear Drive Shaft Inboard Joint Boot Rh)
PNC 42347E, 42347F
Clamp, No.2 (for Rear Drive Shaft Outboard Joint Boot Rh)
PNC 42346E, 42346F
Clamp (for Rear Drive Shaft Inboard Joint Boot Rh)
PNC 42347C, 42347D
Clamp (for Rear Drive Shaft Outboard Joint Boot Rh)
PNC 42346C, 42346D
Hub & Bearing Assy, Rear Axle, Rh
PNC 42450A, 42450B
Hub & Bearing Assy, Rear Axle, Rh
PNC 42450A, 42450B
Disc, Rear
PNC 42431
Boot Kit, Rear Drive Shaft, In & Outboard Joint, Rh
PNC 04438N, 04438Q
Nut(for Rear Axle Shaft Rh)
PNC 42311N, 42312B
Bolt (for Rear Axle Bearing Case Rh)
PNC 42421E, 42422A
Bolt, Hub(for Rear Axle Rh)
PNC 42311U, 42312E
Ring, Shaft Snap (for Rear Drive Shaft Inboard Joint Rh)
PNC 42360L, 42360M
