Powertrain / Chassis

Figure 3610 · Transfer Gear

38 genuine catalog part numbers · Production from 2022-08

Open interactive figure

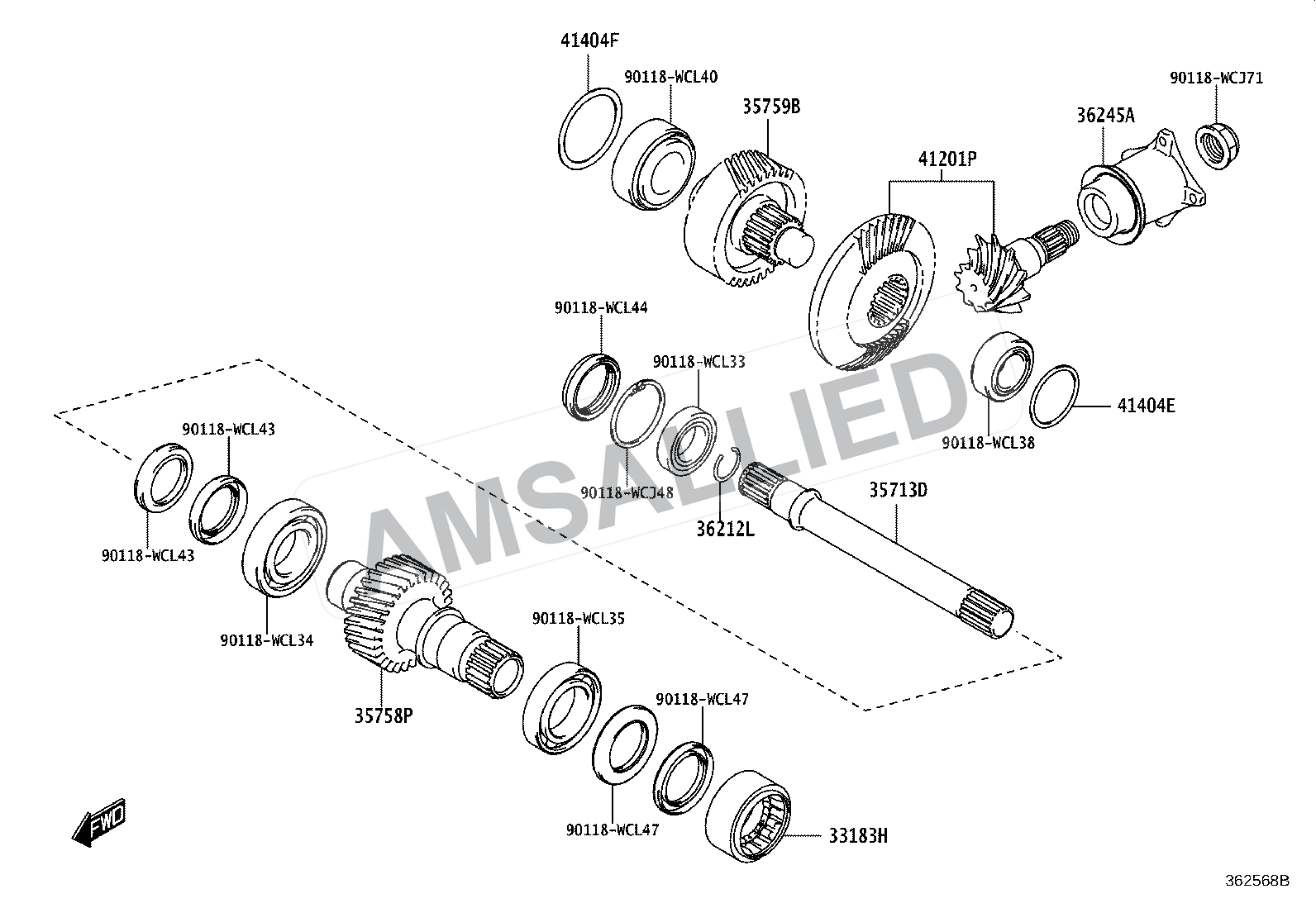

Toyota Hyryder Transfer Gear exploded parts diagram, figure 3610 — AMS Allied watermarked Toyota Hyryder reference diagram.

Part numbers in this diagram

38 parts

35713-WC001

Shaft, Intermediate

PNC 35713D

35758-WC001

Gear, Reduction Drive

PNC 35758P

35759-WC001

Gear, Reduction Driven

PNC 35759B

36228-WC001

Flange, Transfer Output Shaft

PNC 36245A

36250-WC001

Bearing Assy, Transfer

PNC 36250

41201-WC001

Gear Kit, Transfer

PNC 41201P

90118-WCK77

Ring, Shaft Snap

PNC 36212L

90118-WCM21

Shim, Transfer Input, No.1

PNC 41404E

90118-WCM22

Shim, Transfer Input, No.1

PNC 41404E

90118-WCM23

Shim, Transfer Input, No.1

PNC 41404E

90118-WCM24

Shim, Transfer Input, No.1

PNC 41404E

90118-WCM25

Shim, Transfer Input, No.1

PNC 41404E

90118-WCM26

Shim, Transfer Input, No.1

PNC 41404E

90118-WCM27

Shim, Transfer Input, No.1

PNC 41404E

90118-WCM28

Shim, Transfer Input, No.1

PNC 41404E

90118-WCM29

Shim, Transfer Input, No.1

PNC 41404E

90118-WCM30

Shim, Transfer Input, No.1

PNC 41404E

90118-WCM31

Shim, Transfer Input, No.2

PNC 41404F

90118-WCM32

Shim, Transfer Input, No.2

PNC 41404F

90118-WCM33

Shim, Transfer Input, No.2

PNC 41404F

90118-WCM34

Shim, Transfer Input, No.2

PNC 41404F

90118-WCM35

Shim, Transfer Input, No.2

PNC 41404F

90118-WCM36

Shim, Transfer Input, No.2

PNC 41404F

90118-WCM37

Shim, Transfer Input, No.2

PNC 41404F

90118-WCM38

Shim, Transfer Input, No.2

PNC 41404F

90118-WCM39

Shim, Transfer Input, No.2

PNC 41404F

90118-WCM40

Shim, Transfer Input, No.2

PNC 41404F

90118-WCM42

Damper, Transfer Gear

PNC 33183H

90118-WCL40

Diagram Hardware / Fastener

PNC 90118WCL40

90118-WCJ71

Diagram Hardware / Fastener

PNC 90118WCJ71

90118-WCL38

Diagram Hardware / Fastener

PNC 90118WCL38

90118-WCL44

Diagram Hardware / Fastener

PNC 90118WCL44

90118-WCJ48

Diagram Hardware / Fastener

PNC 90118WCJ48

90118-WCL43

Diagram Hardware / Fastener

PNC 90118WCL43

90118-WCL34

Diagram Hardware / Fastener

PNC 90118WCL34

90118-WCL33

Diagram Hardware / Fastener

PNC 90118WCL33

90118-WCL47

Diagram Hardware / Fastener

PNC 90118WCL47

90118-WCL35

Diagram Hardware / Fastener

PNC 90118WCL35
