Powertrain / Chassis

Figure 3609 · Transfer Case & Extension Housing

48 genuine catalog part numbers · Production from 2022-08

Open interactive figure

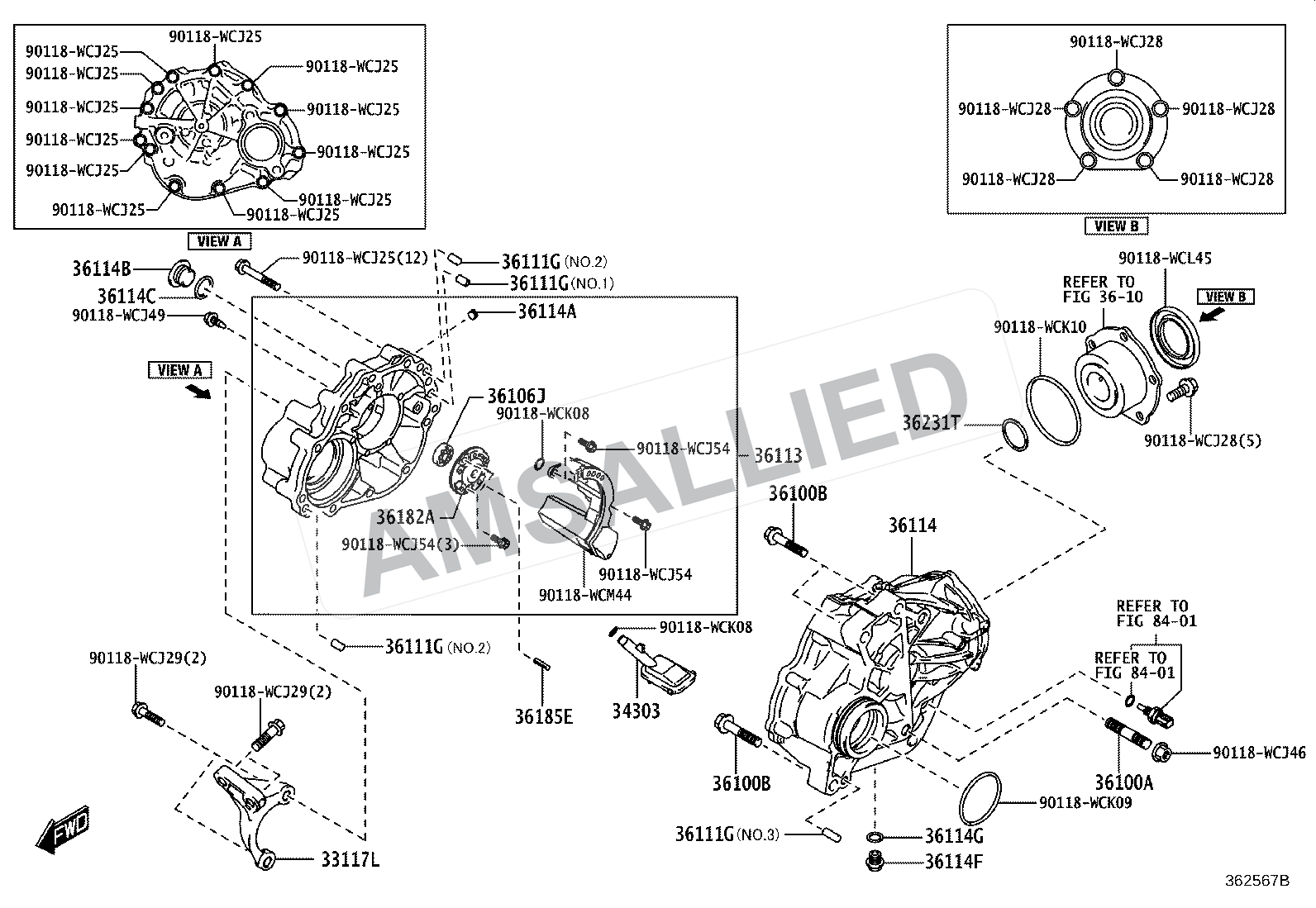

Toyota Hyryder Transfer Case & Extension Housing exploded parts diagram, figure 3609 — AMS Allied watermarked Toyota Hyryder reference diagram.

Part numbers in this diagram

48 parts

33113-WC002

Plug (for Transfer Drain)

PNC 36114F

36106-WC001

Rotor, Transfer Oil Pump

PNC 36106J

36113-WC001

Case, Transfer, Rh

PNC 36113

36114-WC001

Case, Transfer, Lh

PNC 36114

36118-WC001

Bracket, Stiffener Plate

PNC 33117L

36182-WC001

Cover, Transfer Oil Pump

PNC 36182A

36187-WC001

Strainer Sub-assy, Transfer Oil

PNC 34303

90118-WC197

Plug, Tight(for Transfer Case)

PNC 36114A

90118-WCJ43

Pin, Straight (for Transfer Case)

PNC 36111G

90118-WCJ44

Pin, Straight (for Transfer Case)

PNC 36111G

90118-WCJ55

Bolt, Stud (for Transfer & Transaxle Setting)

PNC 36100A

90118-WCJ80

Gasket (for Transfer Drain Plug)

PNC 36114G

90118-WCJ83

Shim(for Transfer Output Shaft)

PNC 36231T

90118-WCJ84

Shim(for Transfer Output Shaft)

PNC 36231T

90118-WCJ85

Shim(for Transfer Output Shaft)

PNC 36231T

90118-WCJ86

Shim(for Transfer Output Shaft)

PNC 36231T

90118-WCJ87

Shim(for Transfer Output Shaft)

PNC 36231T

90118-WCJ88

Shim(for Transfer Output Shaft)

PNC 36231T

90118-WCJ89

Shim(for Transfer Output Shaft)

PNC 36231T

90118-WCJ90

Shim(for Transfer Output Shaft)

PNC 36231T

90118-WCJ91

Shim(for Transfer Output Shaft)

PNC 36231T

90118-WCJ92

Shim(for Transfer Output Shaft)

PNC 36231T

90118-WCJ93

Shim(for Transfer Output Shaft)

PNC 36231T

90118-WCJ94

Shim(for Transfer Output Shaft)

PNC 36231T

90118-WCJ95

Shim(for Transfer Output Shaft)

PNC 36231T

90118-WCJ96

Shim(for Transfer Output Shaft)

PNC 36231T

90118-WCJ97

Shim(for Transfer Output Shaft)

PNC 36231T

90118-WCJ98

Shim(for Transfer Output Shaft)

PNC 36231T

90118-WCJ99

Shim(for Transfer Output Shaft)

PNC 36231T

90118-WCK00

Shim(for Transfer Output Shaft)

PNC 36231T

90118-WCK01

Shim(for Transfer Output Shaft)

PNC 36231T

90118-WCK02

Shim(for Transfer Output Shaft)

PNC 36231T

90118-WCK03

Pin, Straight (for Transfer Case)

PNC 36111G

90118-WCK06

Plug, No.1 (for Transfer Case)

PNC 36114B

90118-WCK36

Gasket, No.1 (for Transfer Case)

PNC 36114C

90118-WCL60

Bolt (for Transfer & Transaxle Setting)

PNC 36100B

90118-WCM20

Pin, Oil Pump Drive

PNC 36185E

90118-WCJ28

Diagram Hardware / Fastener

PNC 90118WCJ28

90118-WCL45

Diagram Hardware / Fastener

PNC 90118WCL45

90118-WCK10

Diagram Hardware / Fastener

PNC 90118WCK10

90118-WCK08

Diagram Hardware / Fastener

PNC 90118WCK08

90118-WCJ54

Diagram Hardware / Fastener

PNC 90118WCJ54

90118-WCJ29

Diagram Hardware / Fastener

PNC 90118WCJ29

90118-WCJ25

Diagram Hardware / Fastener

PNC 90118WCJ25

90118-WCJ46

Diagram Hardware / Fastener

PNC 90118WCJ46

90118-WCK09

Diagram Hardware / Fastener

PNC 90118WCK09

90118-WCJ49

Diagram Hardware / Fastener

PNC 90118WCJ49

90118-WCM44

Diagram Hardware / Fastener

PNC 90118WCM44
