Powertrain / Chassis

Figure 3509 · Brake No.3, 1st & Reverse Brake (atm)

13 genuine catalog part numbers · Production from 2022-08

Open interactive figure

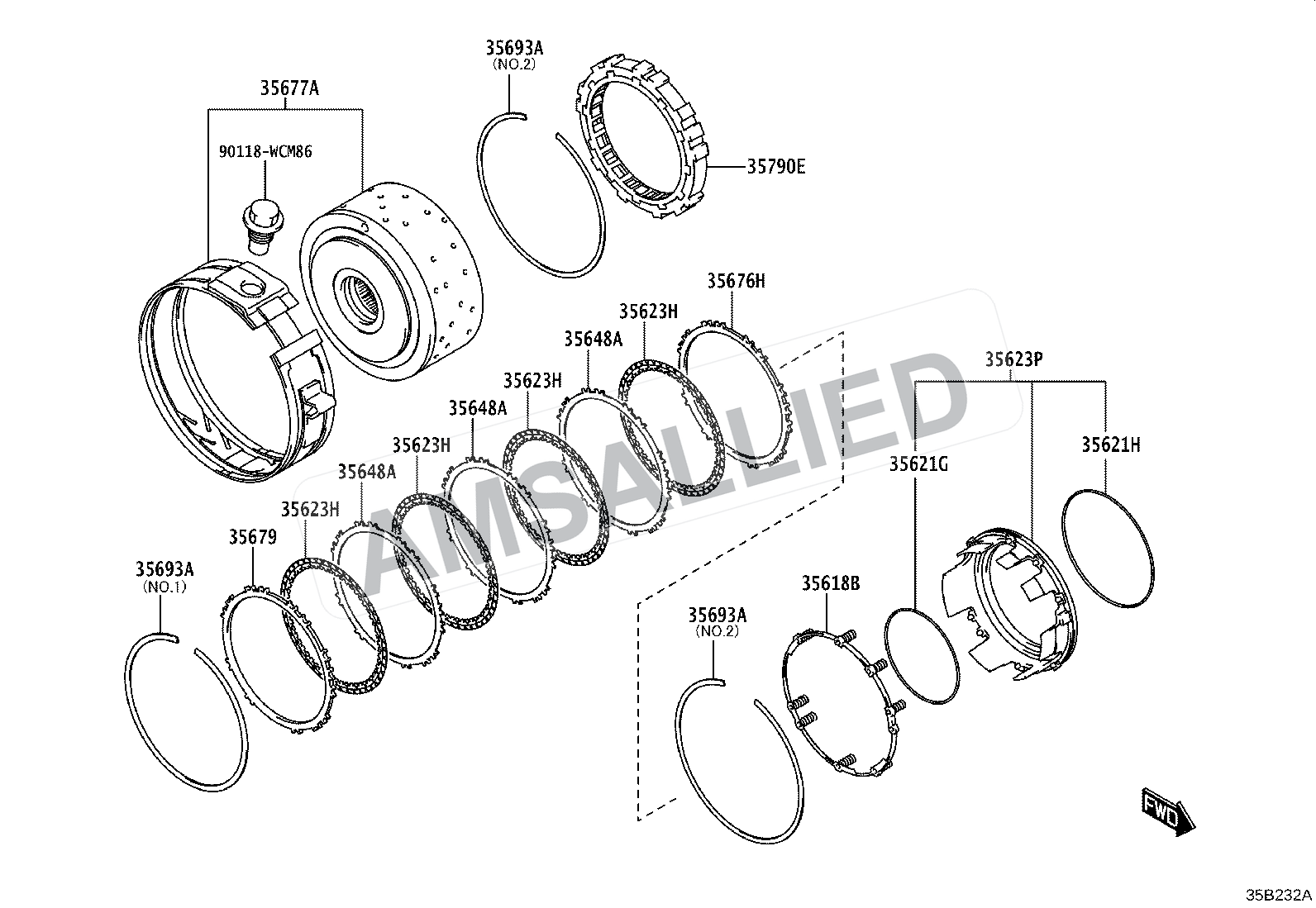

Toyota Hyryder Brake No.3, 1st & Reverse Brake (atm) exploded parts diagram, figure 3509 — AMS Allied watermarked Toyota Hyryder reference diagram.

Part numbers in this diagram

13 parts

Plate, Clutch (for 1st & Reverse Brake)

PNC 35648A

Piston, 1st & Reverse Brake, No.2

PNC 35623P

Spring, 1st & Revs Brake Piston Return

PNC 35618B

Disc, Clutch (for 1st & Reverse Brake)

PNC 35677A

Flange, Brake, No.1

PNC 35676H

Piston, 1st & Reverse Brake

PNC 35623H

Clutch Assy, 1 Way

PNC 35790E

Flange, Brake(for 1st & Reverse)

PNC 35679

Ring, O (for Brake Piston Outer)

PNC 35621H

Ring, O (for Brake Piston Inner)

PNC 35621G

Ring, Snap(for 1st & Reverse Plate)

PNC 35693A

Ring, Snap(for 1st & Reverse Plate)

PNC 35693A

Diagram Hardware / Fastener

PNC 90118WCM86
