Figure 3307 · Gear Shift Fork & Lever Shaft (mtm)

15 genuine catalog part numbers · Production from 2022-08

Open interactive figure

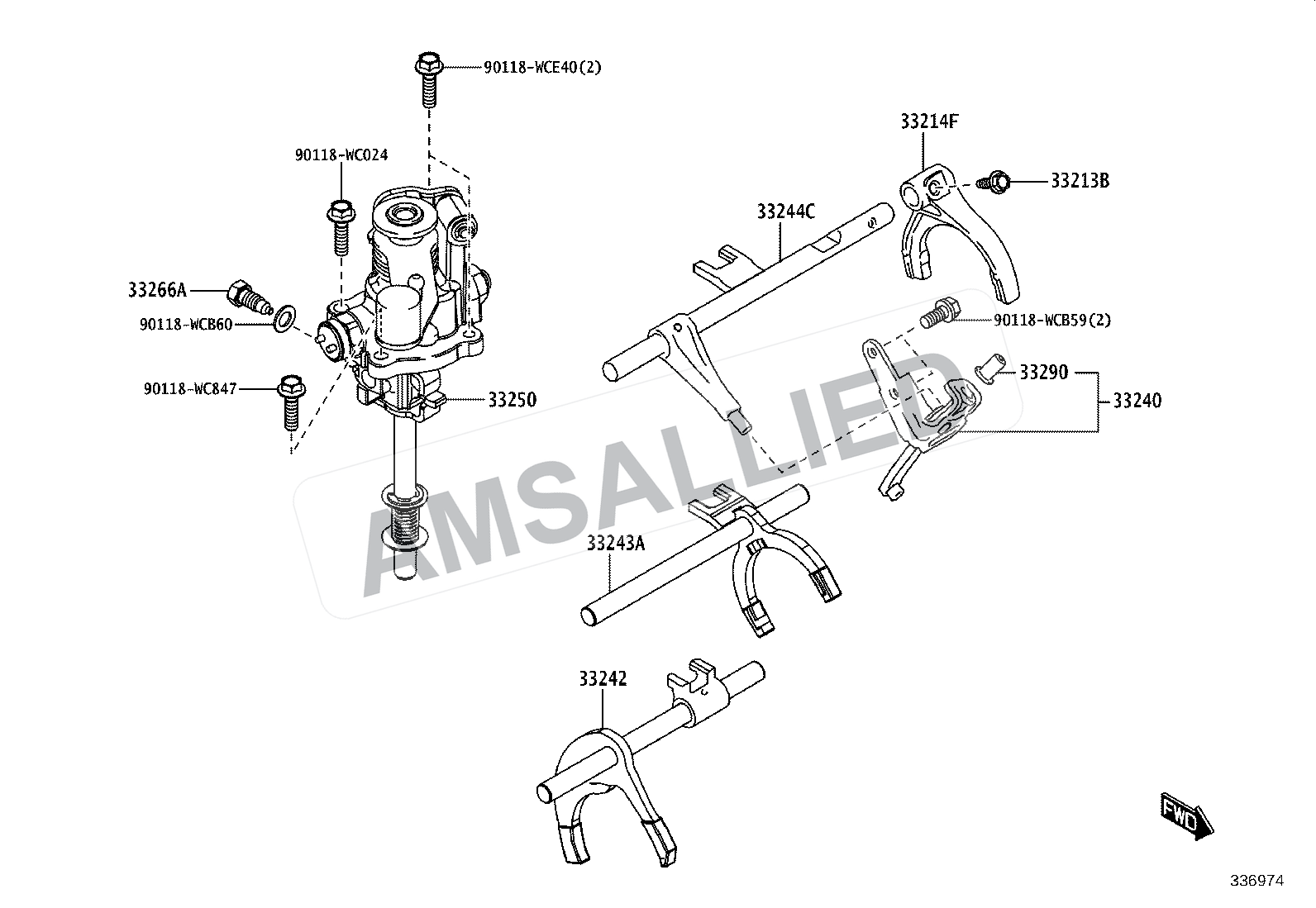

Toyota Hyryder Gear Shift Fork & Lever Shaft (mtm) exploded parts diagram, figure 3307 — AMS Allied watermarked Toyota Hyryder reference diagram.

Part numbers in this diagram

15 parts

33205-WC003

Shaft, Gear Shift Fork, No.1

PNC 33242

33214-WC001

Fork, 5th Shift

PNC 33214F

33221-WC002

Bracket Assy, Reverse Shift Arm

PNC 33240

33223-WC001

Ball Assy, Lock, No.1

PNC 33290

33243-WC002

Shaft, Gear Shift Fork, No.2

PNC 33243A

33244-WC002

Shaft, Reverse & 5th Shift Fork

PNC 33244C

33250-WC007

Shaft Assy, Shift & Select Lever

PNC 33250

33250-WC009

Shaft Assy, Shift & Select Lever

PNC 33250

90118-WCC03

Bolt(for Shift Fork Set)

PNC 33213B

90118-WCC04

Bolt (for Shift Interlock Plate)

PNC 33266A

90118-WCB59

Diagram Hardware / Fastener

PNC 90118WCB59

90118-WCB60

Diagram Hardware / Fastener

PNC 90118WCB60

90118-WC847

Diagram Hardware / Fastener

PNC 90118WC847

90118-WC024

Diagram Hardware / Fastener

PNC 90118WC024

90118-WCE40

Diagram Hardware / Fastener

PNC 90118WCE40
