Gear, 3rd
PNC 33333
Powertrain / Chassis

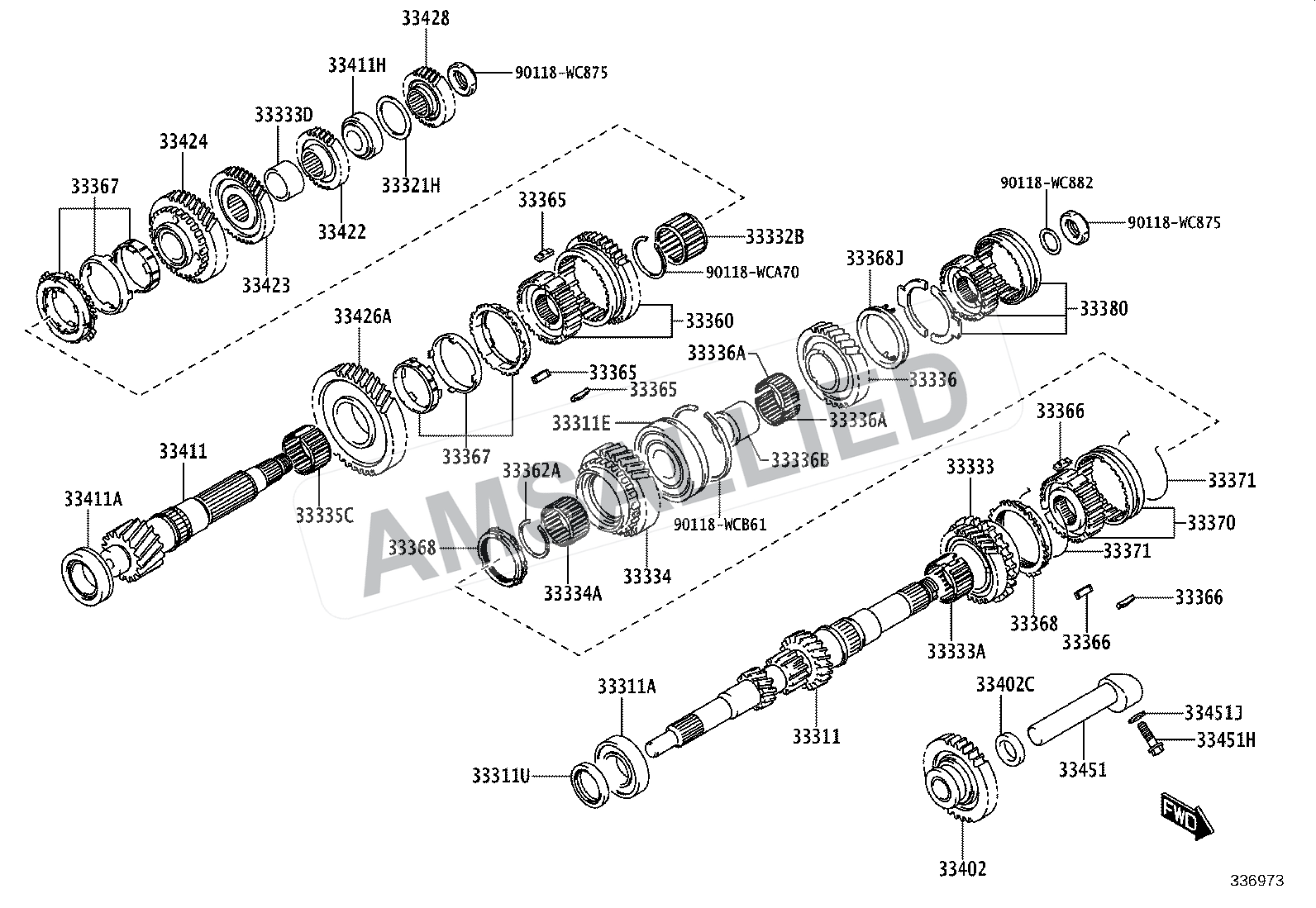

Figure 3305 · Transmission Gear (mtm)
69 genuine catalog part numbers · Production from 2022-08
Part numbers in this diagram
69 partsGear, 3rd
PNC 33333
Gear, 4th
PNC 33334
Gear, 4th
PNC 33334
Gear, 5th
PNC 33336
Gear, 5th
PNC 33336
Shaft, Input
PNC 33311
Shaft, Input
PNC 33311
Countershaft
PNC 33411
Countershaft
PNC 33411
Gear, Countershaft 2nd Speed
PNC 33424
Gear, Countershaft 2nd Speed
PNC 33424
Gear, Countershaft, 1st Speed
PNC 33426A
Gear, Countershaft, 1st Speed
PNC 33426A
Hub Assy, Synchronizer, No.1
PNC 33360
Hub Assy, Synchronizer, No.1
PNC 33360
Key, Synchromesh Shifting, No.1
PNC 33365
Ring, Synchronizer, No.1
PNC 33367
Ring, Synchronizer, No.2
PNC 33368
Ring, Synchronizer (for 5th Gear)
PNC 33368J
Hub Assy, Synchronizer, No.2
PNC 33370
Hub Assy, Synchronizer, No.2
PNC 33370
Spring, Synchromesh Shifting Key, No.1
PNC 33371
Hub Assy, Synchronizer, No.3
PNC 33380
Hub Assy, Synchronizer, No.3
PNC 33380
Key, Synchromesh Shifting, No.2
PNC 33366
Gear Sub-assy, Reverse Idler
PNC 33402
Gear, Countershaft 4th Speed
PNC 33422
Gear, Countershaft 4th Speed
PNC 33422
Gear, Countershaft 3rd Speed
PNC 33423
Gear, Countershaft 3rd Speed
PNC 33423
Gear, Countershaft 5th
PNC 33428
Gear, Countershaft 5th
PNC 33428
Spacer (for 3rd Gear)
PNC 33333D
Shaft, Reverse Idler Gear
PNC 33451
Gasket (for Reverse Idler Gear Shaft)
PNC 33451J
Bolt (for Reverse Idler Gear Shaft)
PNC 33451H
Washer, Plate (for Reverse Idler)
PNC 33402C
Shim (for Output Shaft Rear Bearing)
PNC 33321H
Shim (for Output Shaft Rear Bearing)
PNC 33321H
Shim (for Output Shaft Rear Bearing)
PNC 33321H
Shim (for Output Shaft Rear Bearing)
PNC 33321H
Shim (for Output Shaft Rear Bearing)
PNC 33321H
Shim (for Output Shaft Rear Bearing)
PNC 33321H
Shim (for Output Shaft Rear Bearing)
PNC 33321H
Shim (for Output Shaft Rear Bearing)
PNC 33321H
Shim (for Output Shaft Rear Bearing)
PNC 33321H
Shim (for Output Shaft Rear Bearing)
PNC 33321H
Shim (for Output Shaft Rear Bearing)
PNC 33321H
Shim (for Output Shaft Rear Bearing)
PNC 33321H
Seal, Oil (for Input Shaft)
PNC 33311U
Bearing (for Input Shaft Front)
PNC 33311A
Bearing, Radial Ball (for Input Shaft Rear)
PNC 33311E
Bearing Or Roller(for Counter Gear Front)
PNC 33411A
Bearing Or Roller(for Counter Gear Rear)
PNC 33411H
Bearing, Needle Roller (for 3rd Gear)
PNC 33333A
Bearing, Needle Roller (for 5th Gear)
PNC 33336A
Bearing, Needle Roller (for 2nd Gear)
PNC 33332B
Bearing, Needle Roller (for 2nd Gear)
PNC 33332B
Bearing, Needle Roller(for 1st Gear)
PNC 33335C
Ring, Shaft Snap (for Clutch Hub No.2 Setting)
PNC 33362A
Spacer (for 5th Gear Bearing)
PNC 33336B
Bearing, Needle Roller (for 4th Gear)
PNC 33334A
Spacer (for 5th Gear Bearing)
PNC 33336B
Bearing, Needle Roller (for 4th Gear)
PNC 33334A
Diagram Hardware / Fastener
PNC 90118WCB61
Diagram Hardware / Fastener
PNC 90118WC882
Diagram Hardware / Fastener
PNC 90118WC875
Diagram Hardware / Fastener
PNC 90118WCA70
