Figure 3105 · Clutch Release Cylinder

3 genuine catalog part numbers · Production from 2022-08

Open interactive figure

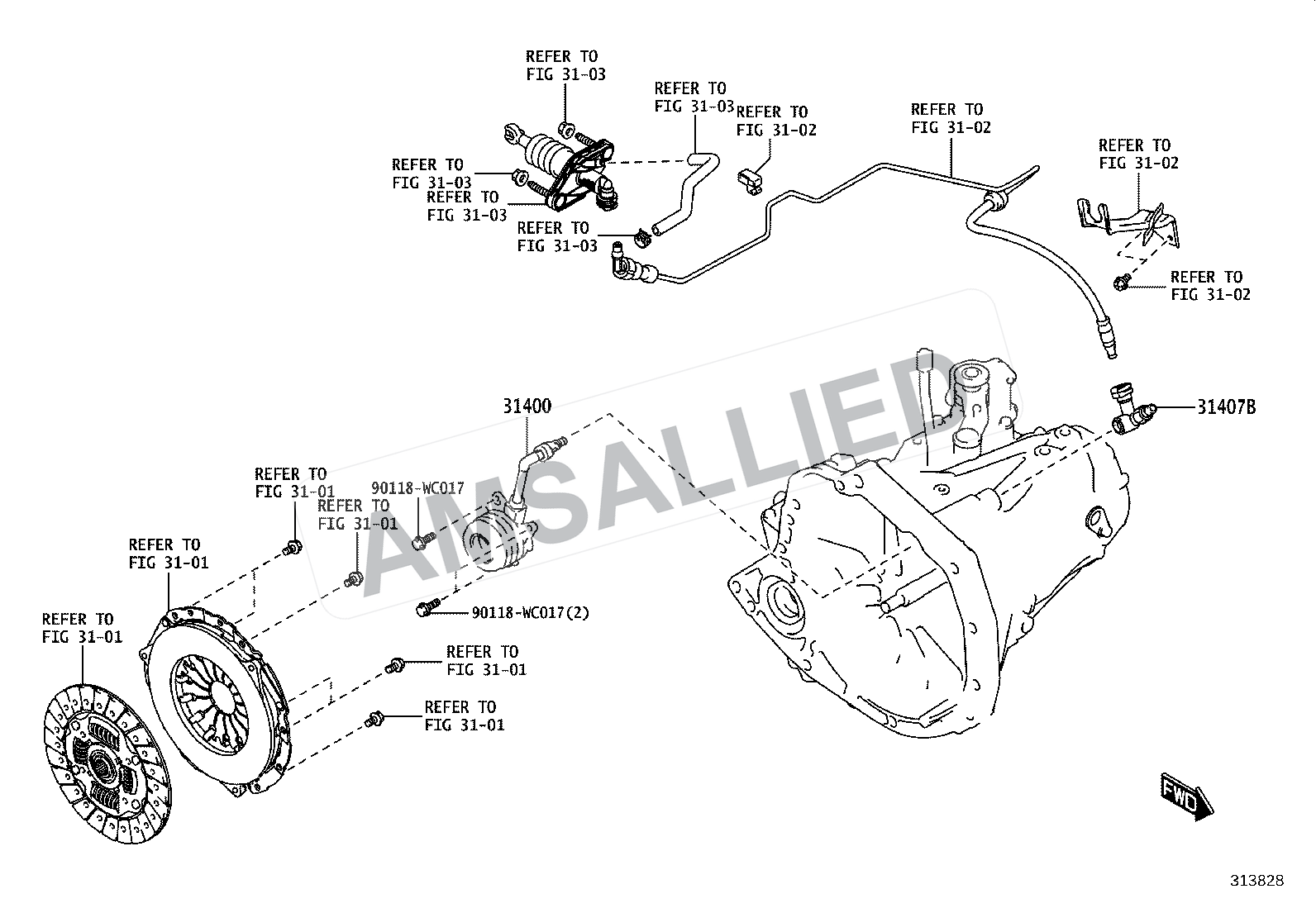

Toyota Hyryder Clutch Release Cylinder exploded parts diagram, figure 3105 — AMS Allied watermarked Toyota Hyryder reference diagram.

Part numbers in this diagram

3 parts

Cylinder Assy, Clutch Release W/bearing

PNC 31400

Bleeder Sub-assy, Clutch Release

PNC 31407B

Diagram Hardware / Fastener

PNC 90118WC017
