Figure 3103 · Clutch Master Cylinder

4 genuine catalog part numbers · Production from 2022-08

Open interactive figure

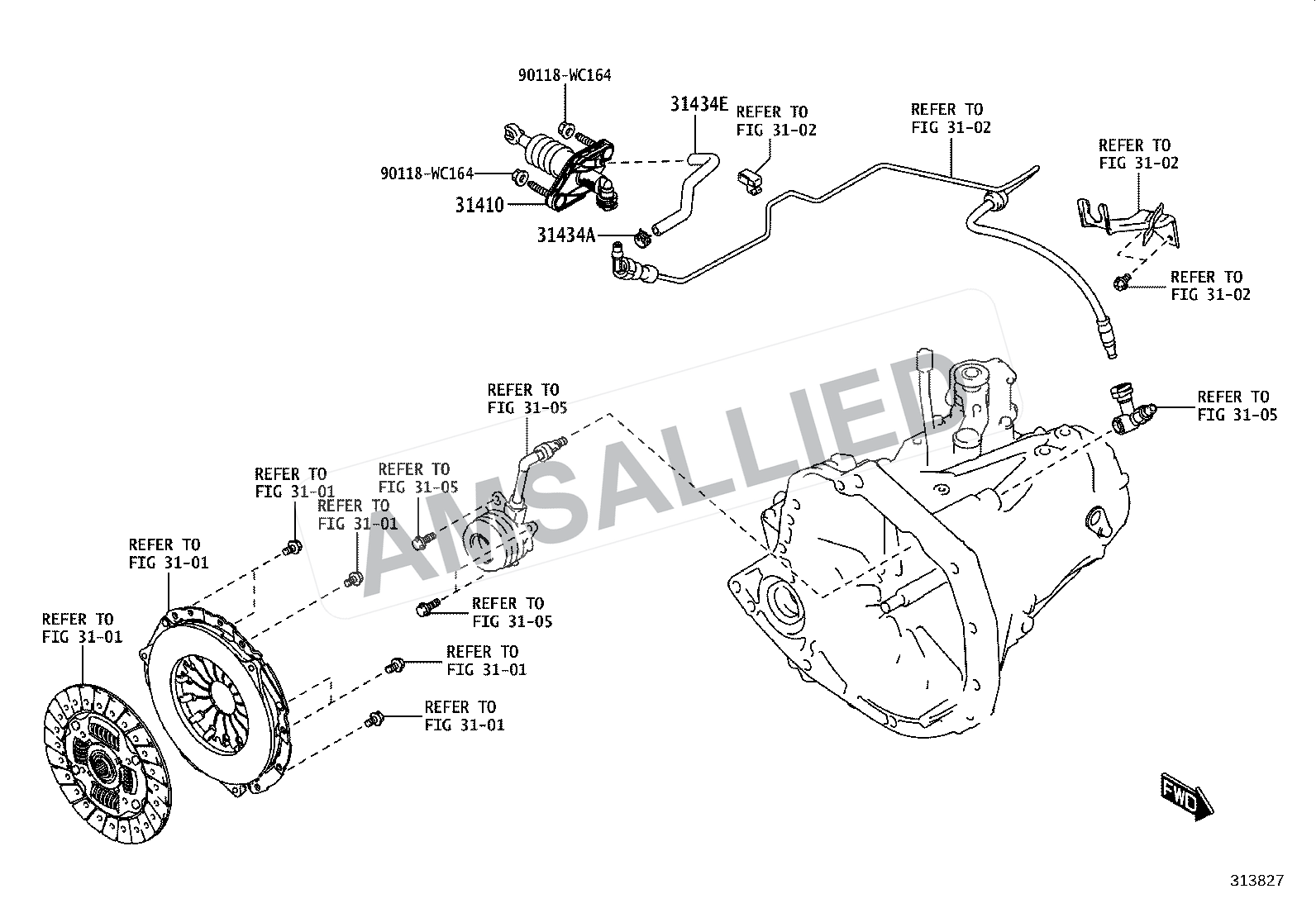

Toyota Hyryder Clutch Master Cylinder exploded parts diagram, figure 3103 — AMS Allied watermarked Toyota Hyryder reference diagram.

Part numbers in this diagram

4 parts

Cylinder Assy, Clutch Master

PNC 31410

Hose, Clutch Reservoir, No.1

PNC 31434E

Clip(for Clutch Reservoir Tube)

PNC 31434A

Diagram Hardware / Fastener

PNC 90118WC164
