Pedal Sub-assy, Clutch
PNC 31301
Powertrain / Chassis

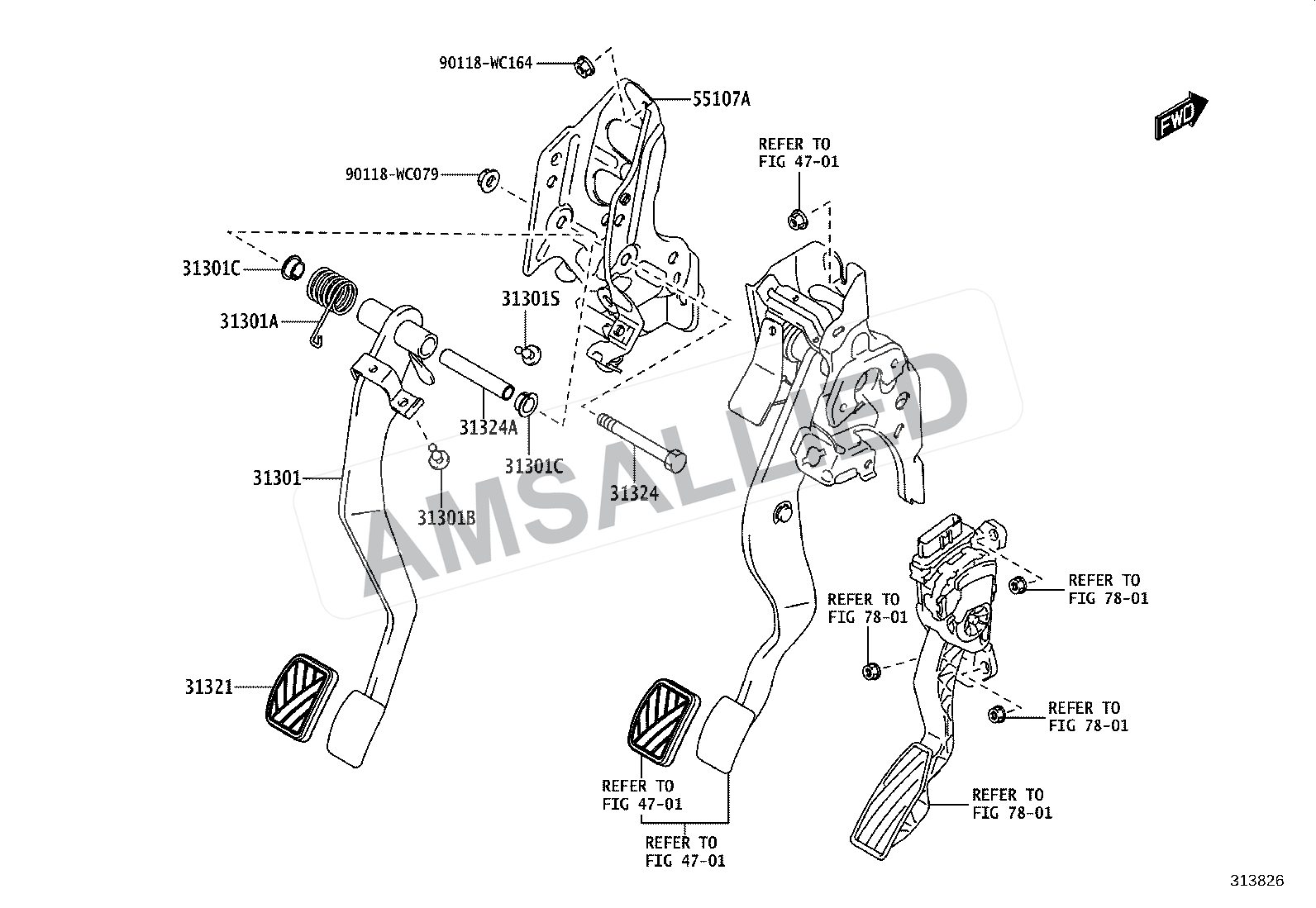

Figure 3102 · Clutch Pedal & Flexible Hose
15 genuine catalog part numbers · Production from 2022-08
Part numbers in this diagram
15 partsTube, Clutch Master Cylinder To Flexible Hose
PNC 31481
Bracket, Flexible Hose(for Clutch)
PNC 31484
Pad, Clutch Pedal
PNC 31321
Support Sub-assy, Clutch Pedal
PNC 55107A
Bush(for Clutch Pedal)
PNC 31301C
Cushion, No.1(for Clutch Pedal)
PNC 31301B
Shaft, Clutch Pedal
PNC 31324
Collar, Clutch Pedal Shaft
PNC 31324A
Spring(for Clutch Pedal)
PNC 31301A
Cushion, No.2(for Clutch Pedal)
PNC 31301S
Clamp(for Clutch Master Cylinder Tube)
PNC 31481M
Diagram Hardware / Fastener
PNC 90118WC079
Diagram Hardware / Fastener
PNC 90118WC164
Diagram Hardware / Fastener
PNC 90118WC039
